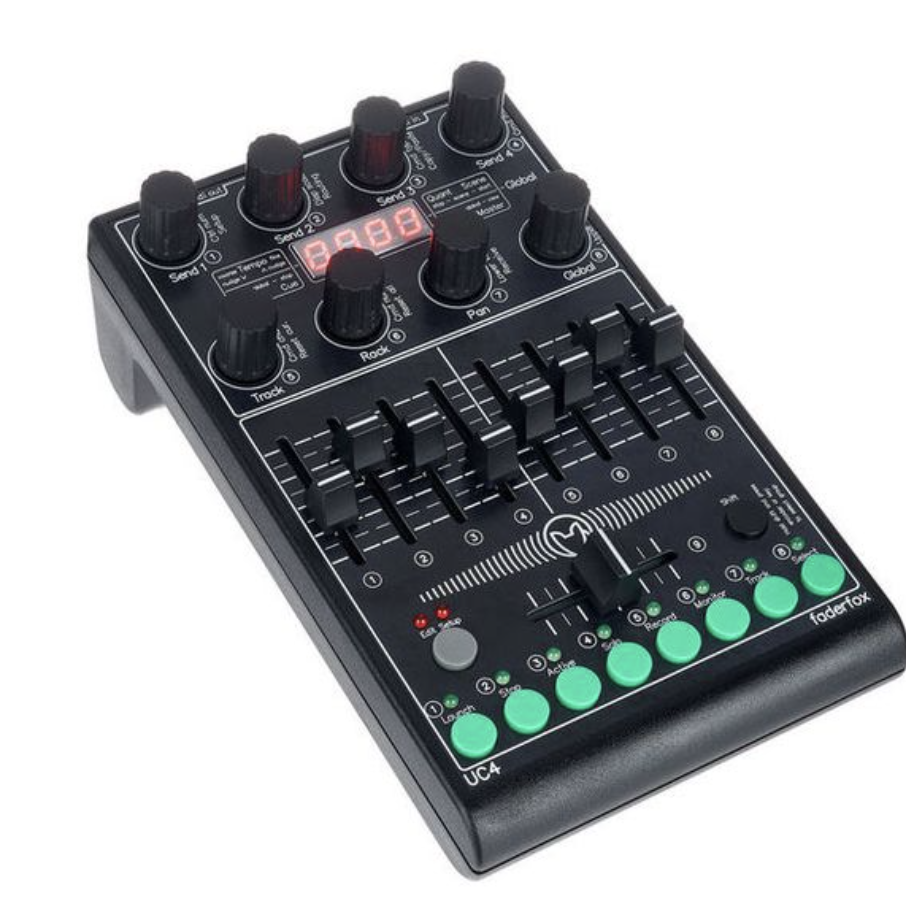

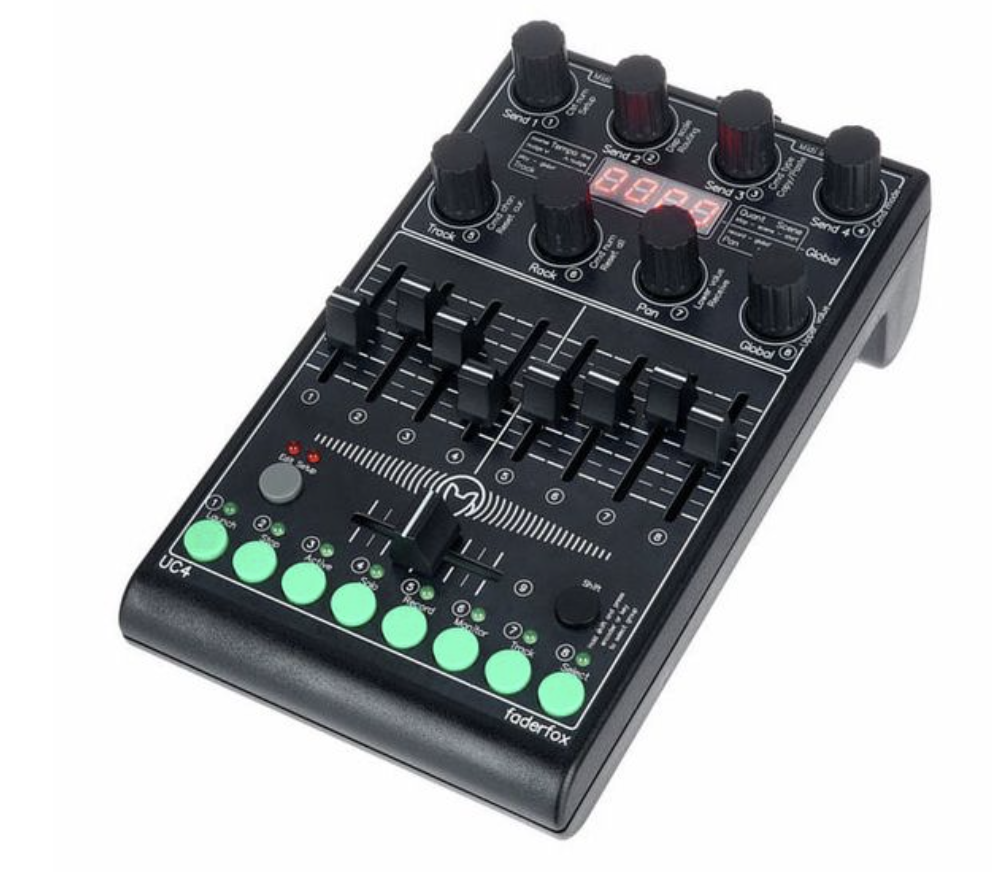

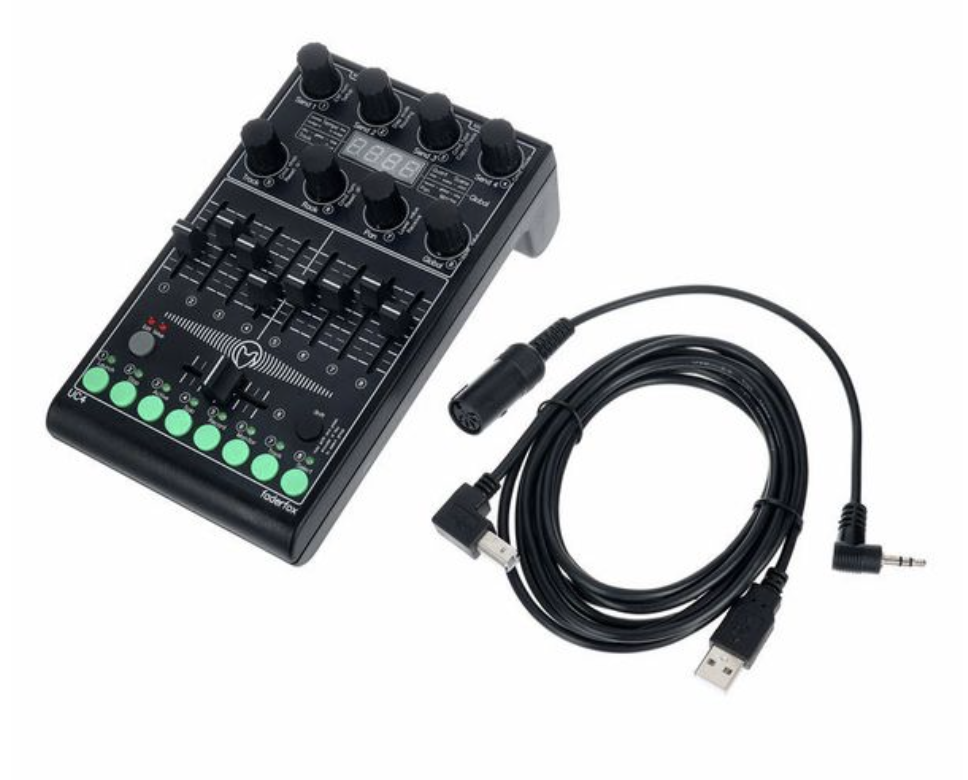

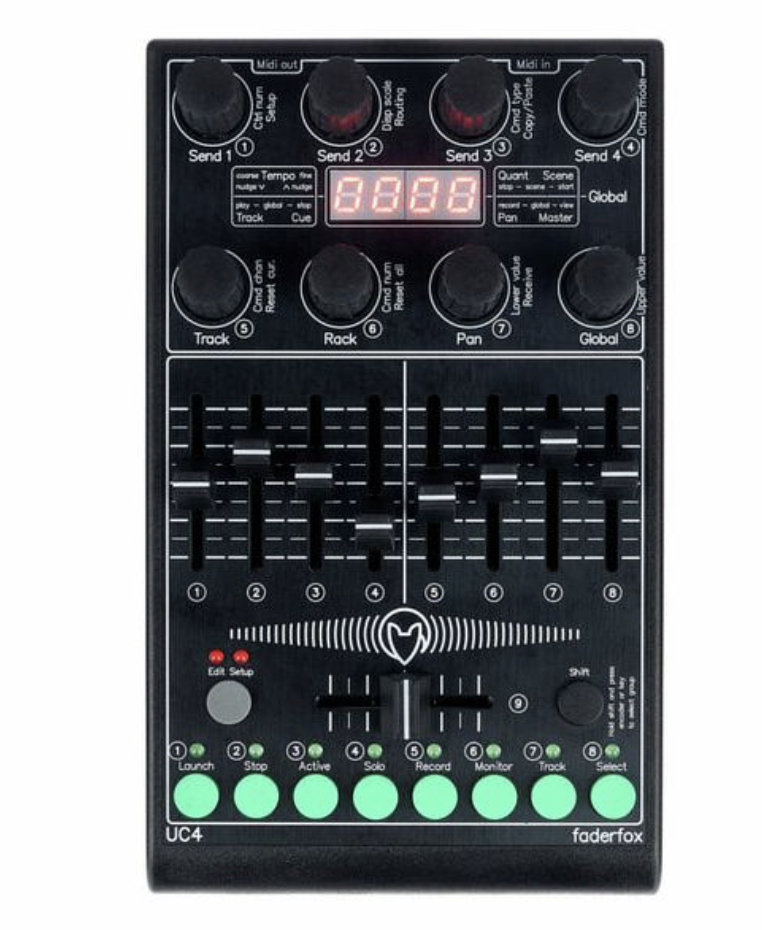

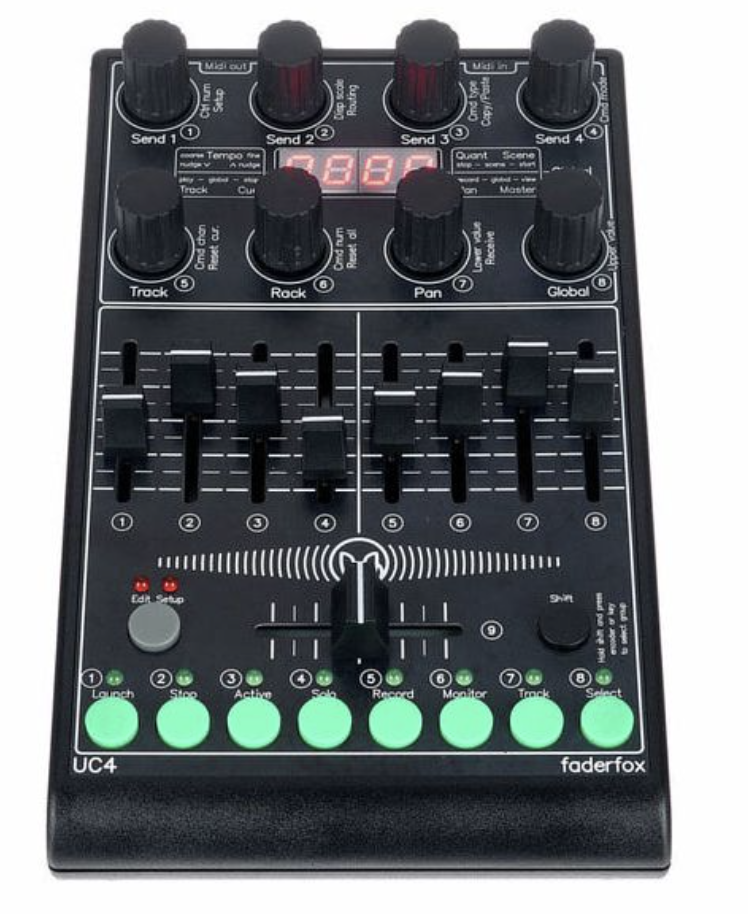

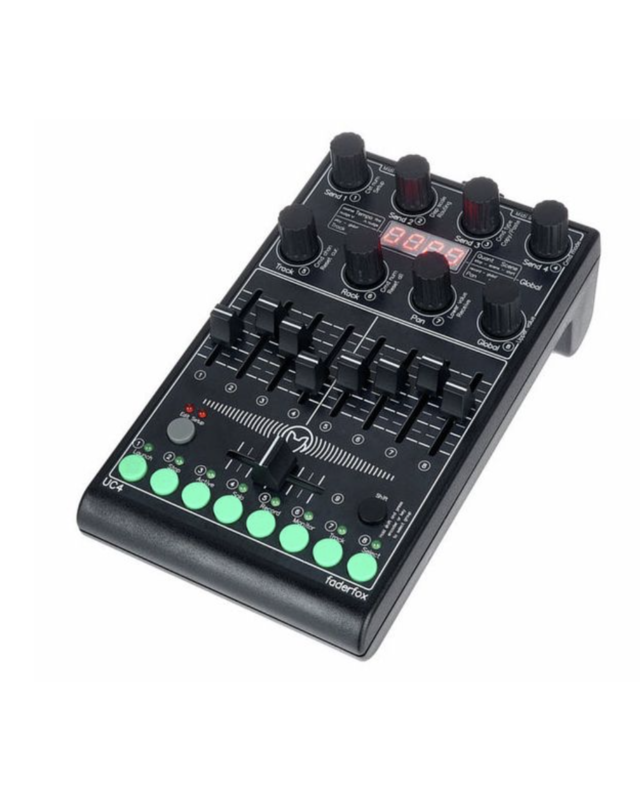

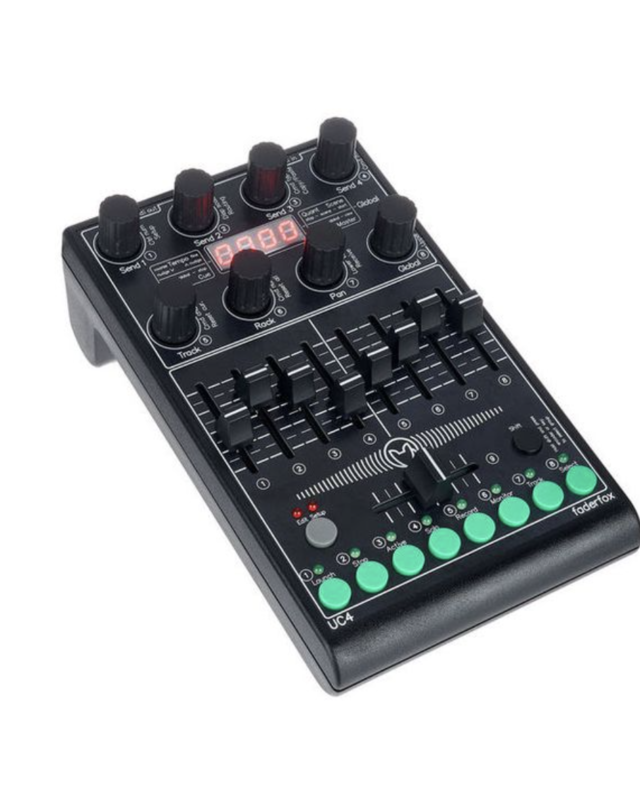

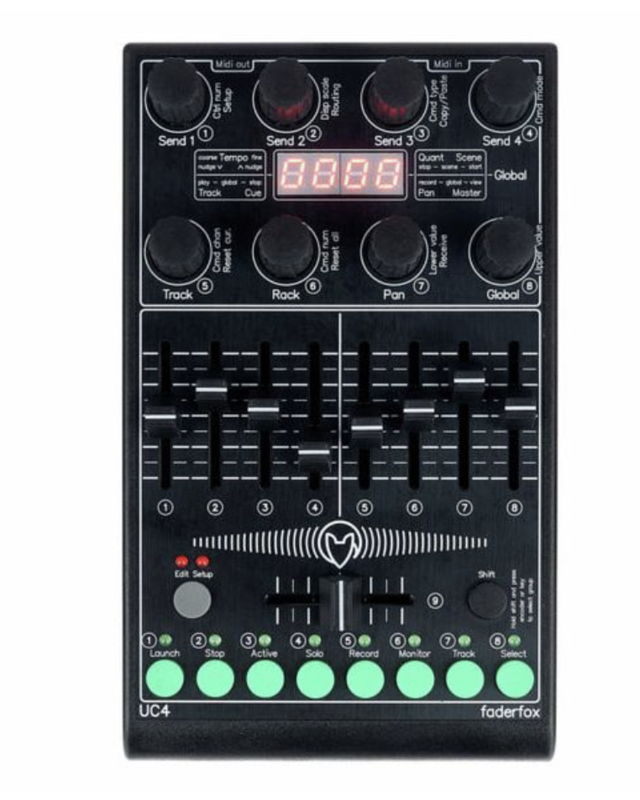

UC4

Universal MIDI Controller

• iPad compatible
• Control Surface Script for Ableton Live 8/9 included

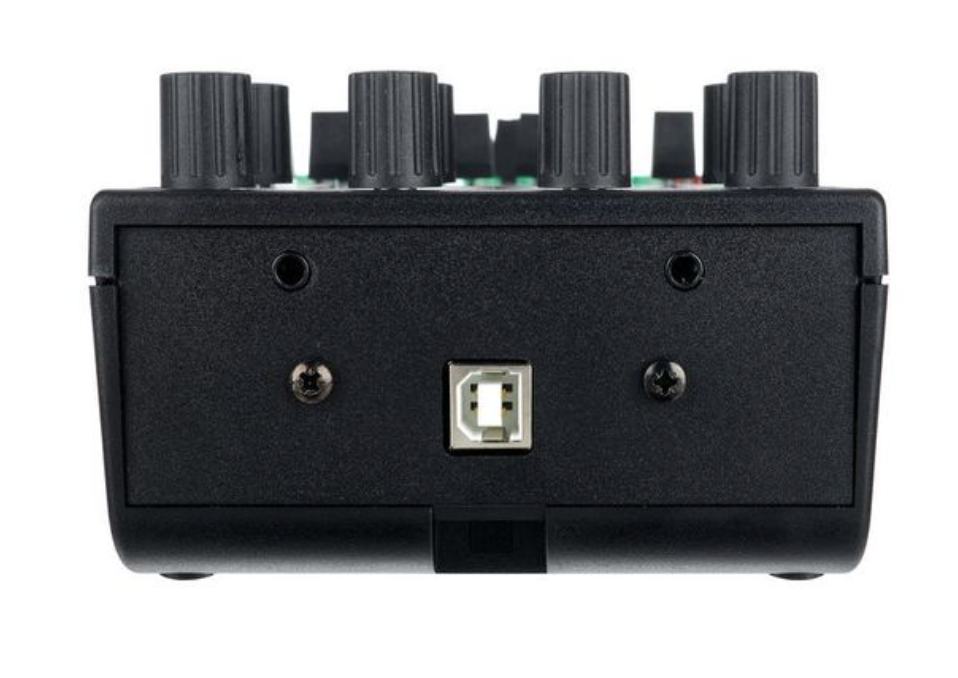

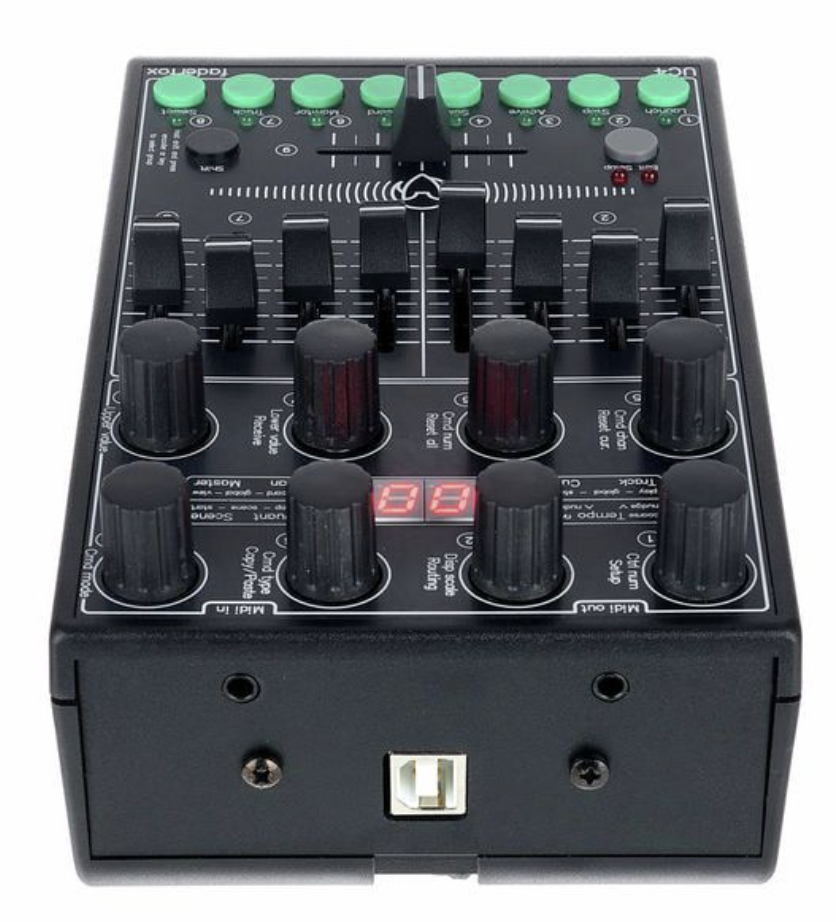

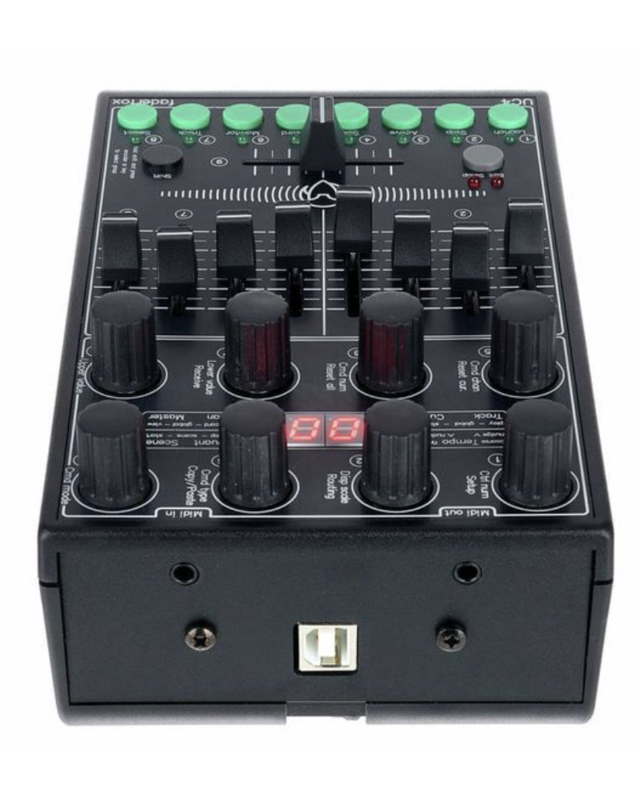

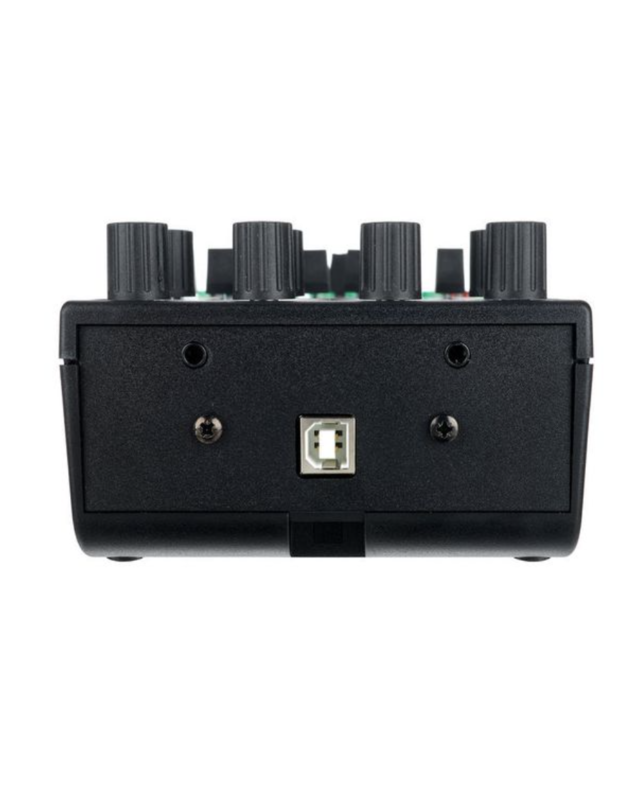

• USB interface with bus power supply
• Class Compliant - no driver required
• MIDI input and output with routing and merge function
• 8 Gridless push encoders (resolution = 36 pulses per revolution)
• Encoder push buttons can send separate commands
• 9 Faders with a length of 30 mm
• 8 Buttons with LED
• 4 Character display
• High resolution 14 bit mode
• Programmable value ranges with min / max values
• Data feedback prevents jumps in value
• All encoders are fully programmable in the device via channel, type, number, mode, name etc.
• Various types of commands such as CC, NRPN, pitch bend, aftertouch, program change and notes
• 8 Independent groups for encoders and faders / buttons
• 18 Setups with backup / restore functions

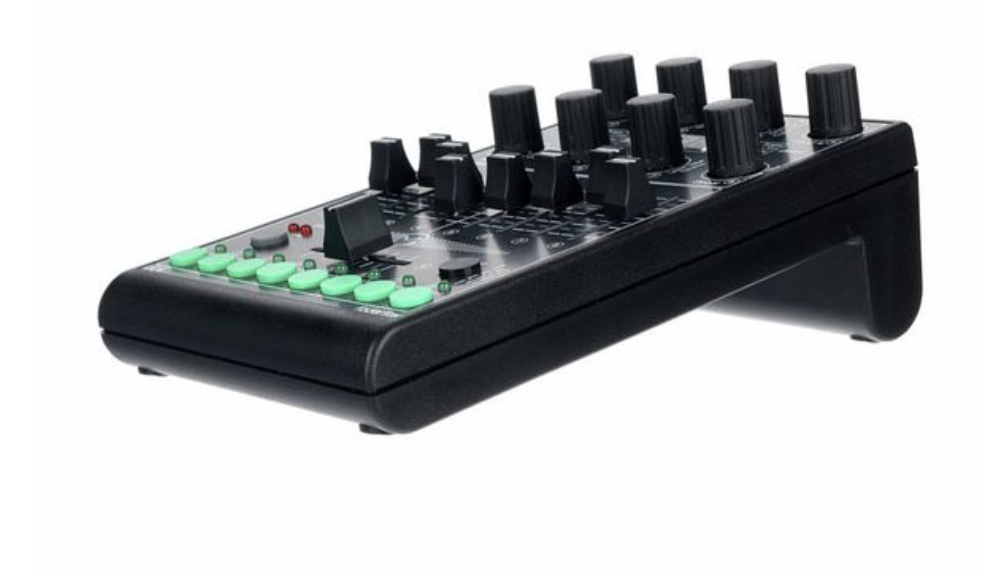

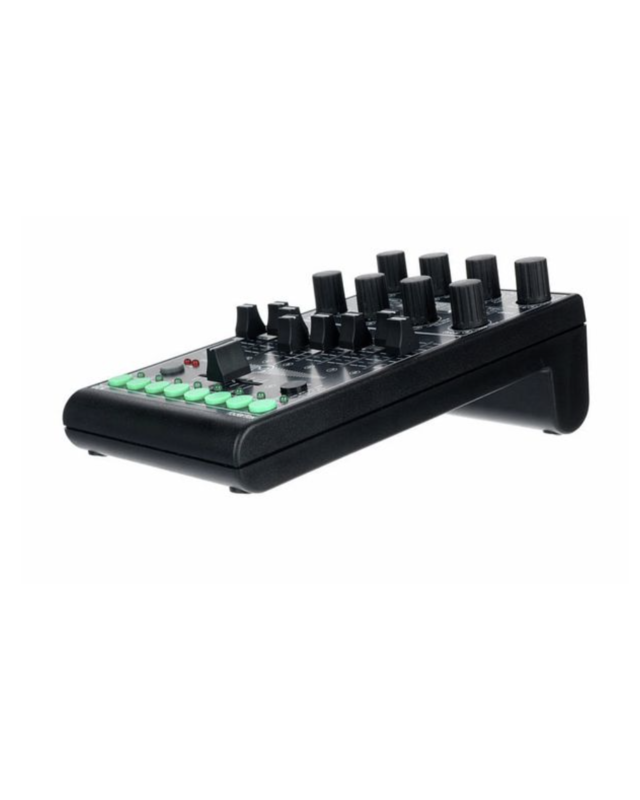

• Compact design in black housing with metal front panel
• Dimensions (W x D x H): 180 x 105 x 70 mm
• Weight: 0.35 kg
