AJH Synth

Gemini 2412 Dual SVF

€499,00
Bitte wählen Sie
Auf Lager(Lager): Dieser Artikel wird in der Regel innerhalb von 7-14 Werktagen versendet! Kontaktieren Sie uns für weitere Informationen per E-Mail: [email protected]
Pflichtfelder:
    - +
    Physische Geschäfte in Riga und Rotterdam
    Internationales Versenden
    Über 10 Zahlungsoptionen
    Beschreibung Gemini 2412 Dual SVF

    A beautiful sounding and hugely versatile Dual Multi-mode VCF:

    Featuring two completely independent Vintage SEM style filters, with a central mixing bus for both audio and frequency control voltages which allow the two VCF's to be combined in both serial and parallel modes, and VCF1 can be inverted against VCF2. So the two VCF's can be combined to behave as a 24dB SEM filter, vocal formant filter and much more!

    Each of the two filters are based on the vintage SEM filter, with FET transistor buffers and feature Low Pass, Band Pass and High Pass outputs and a useful Vary output which can be faded from LP to Notch to HP. All outputs can be used simultaneously.

    We have added some exciting extra features unavailable on the original SEM filter, including CV contol of Resonance, overdriving of the VCF core and full self oscillation!

    VCF1 and VCF2 each have a four way switch to select LP, BP, HP or VARY to the mixing bus, this is also available as an extra individual output.

    In Depth

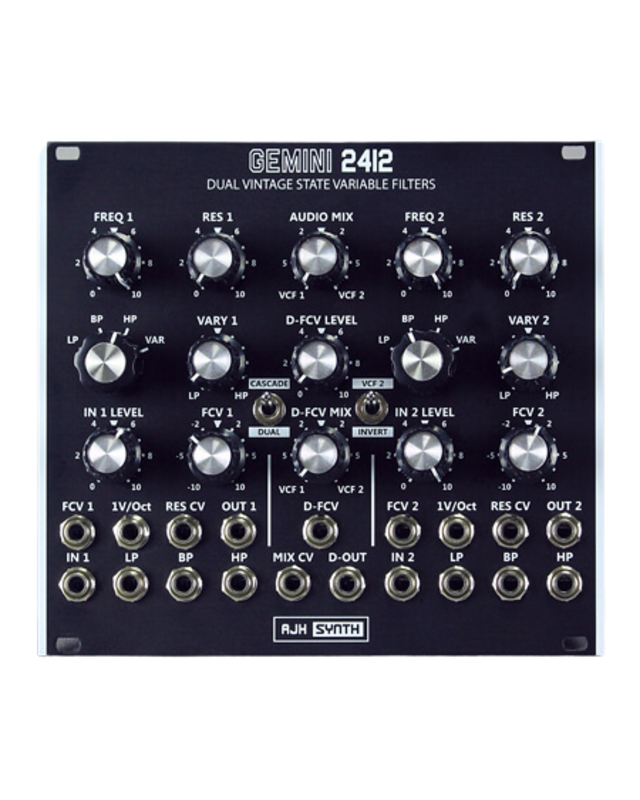

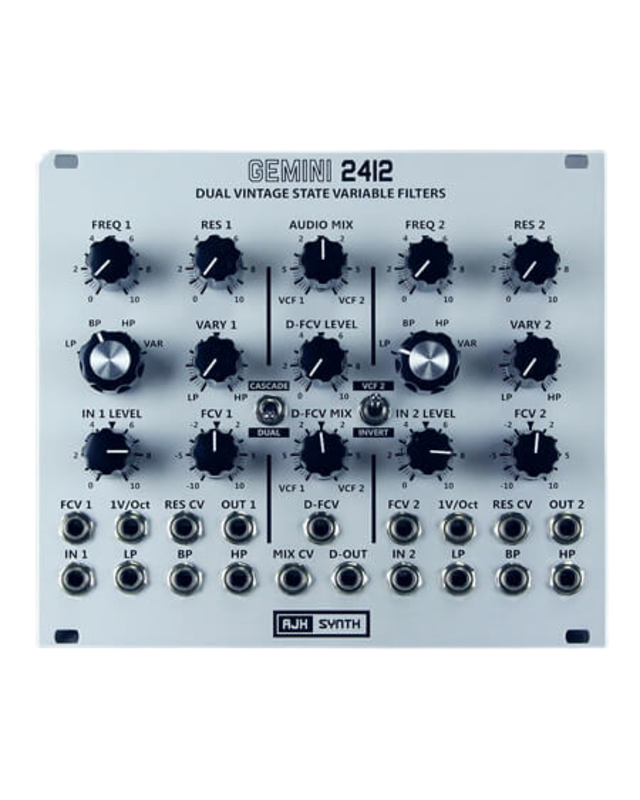

     The AJH Synth Gemini 2412 is a 28hp wide Eurorack module, featuring two Vintage SEM style, state variable voltage controlled filters, along with a versatile central mixing bus allows which them to be combined in series, parallel or parallel inverted modes. A dual, variable frequency control system allows single control of cutoff frequency of both filters, and the actual CV amount sent to each filter can be set using the D-FCV MIX control.



    More information you can find here: AJH Gemini 2412 Dual SVF
