AJH Synth

AJH MiniMod CV Mix-Offset-VCA

€239,00
Bitte wählen Sie
Auf Lager(Lager): Dieser Artikel wird in der Regel innerhalb von 7-14 Werktagen versendet! Kontaktieren Sie uns für weitere Informationen per E-Mail: [email protected]
Pflichtfelder:
    - +
    Physische Geschäfte in Riga und Rotterdam
    Internationales Versenden
    Über 10 Zahlungsoptionen
    Beschreibung AJH MiniMod CV Mix-Offset-VCA

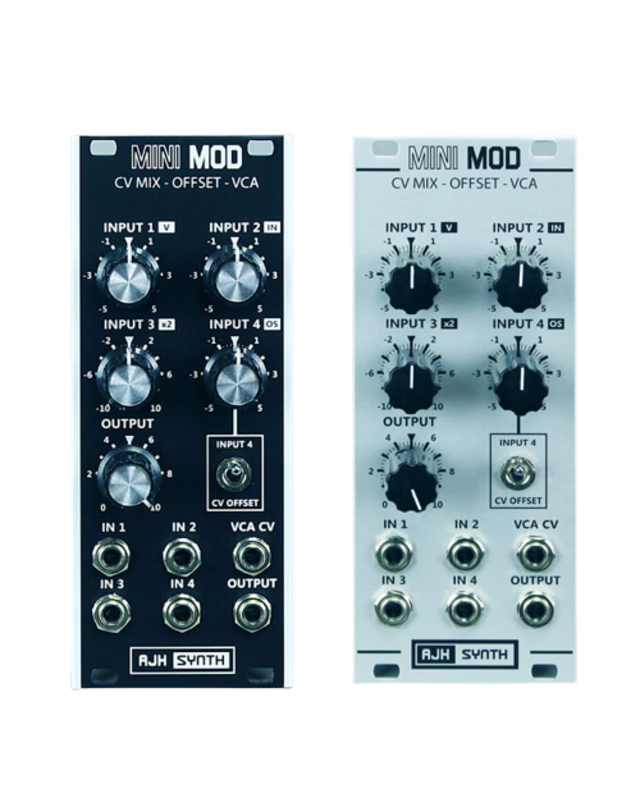

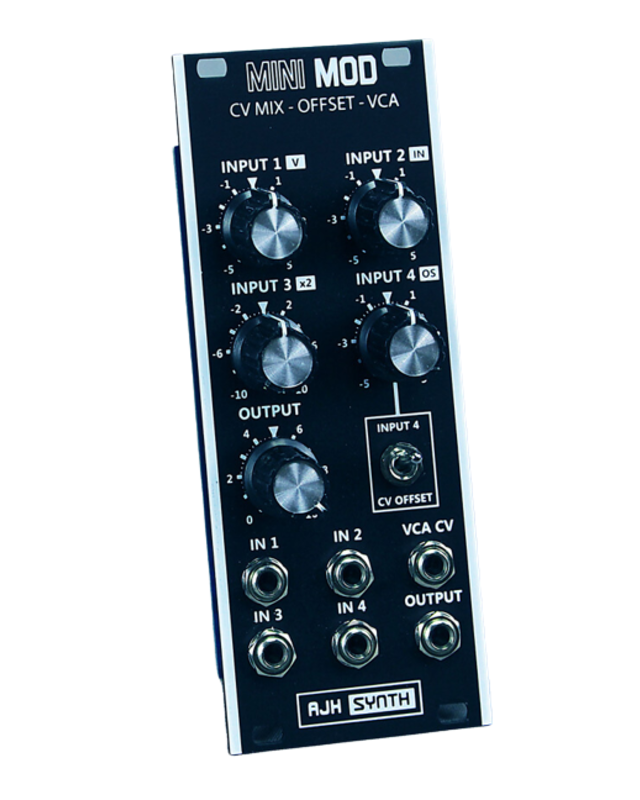

    The MiniMod CVMix-Offset-VCA - is a compact 10hp wide Eurorack format module. It has been developed to offer a range of useful utilities for the MiniMod system and of course other Eurorack synthesisers..

    It comprises a four channel polarising mixer, amplifier, inverter, a voltage source and a DC coupled VCA with switchable CV offset.

    Uses include mixing together CV modulation sources, mixing an offset voltage with a CV source, converting a bipolar +/- 5V modulation into a unipolar 0 to +5V

    This is possibly the most useful utility module that can be added to a modular system, you'll wonder how you ever managed without it!



    In Depth

    This useful module is a Bipolar Mixer, DC voltage source and Linear DC coupled VCA - With no input to channel 1 the Input 1 pot becomes a voltage source with a range of +/- 6V. The control pot and input for channel 4 can be switched to become an offset control and/or a second CV input for the VCA. Input 3 has 2x gain, so it can amplify lower level CV’s too. All of the inputs are bipolar, which means that either non-inverted or inverted version of the input signal can be added to the mix depending upon the Input control being turned clockwise (non-inverting) or anti-clockwise (inverted). The 12’o’clock position is zero.



    More information you can find here: AJH MiniMod CV Mix-Offset-VCA
