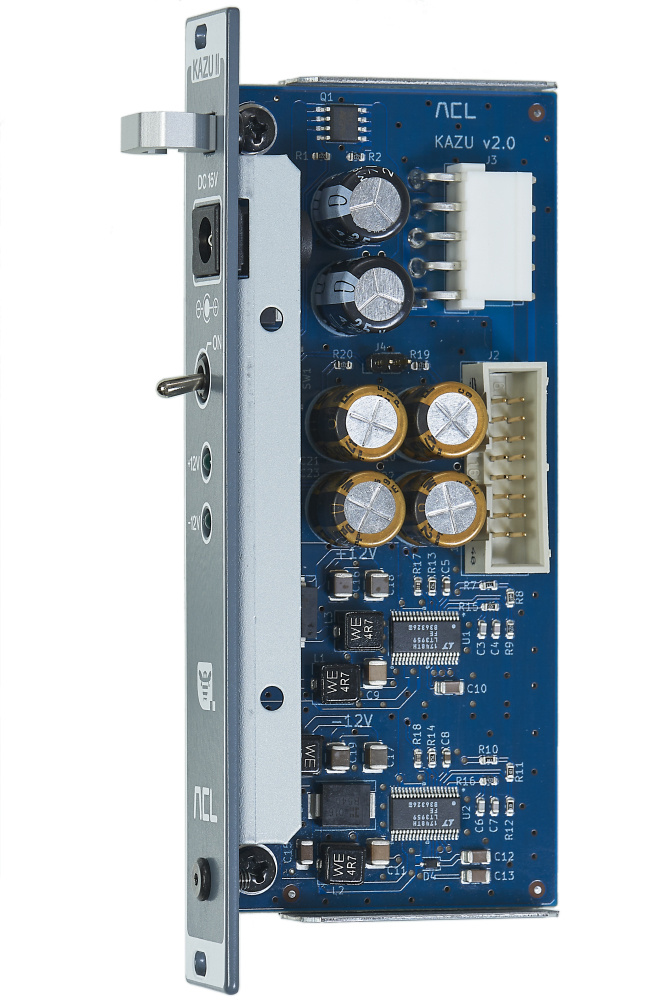

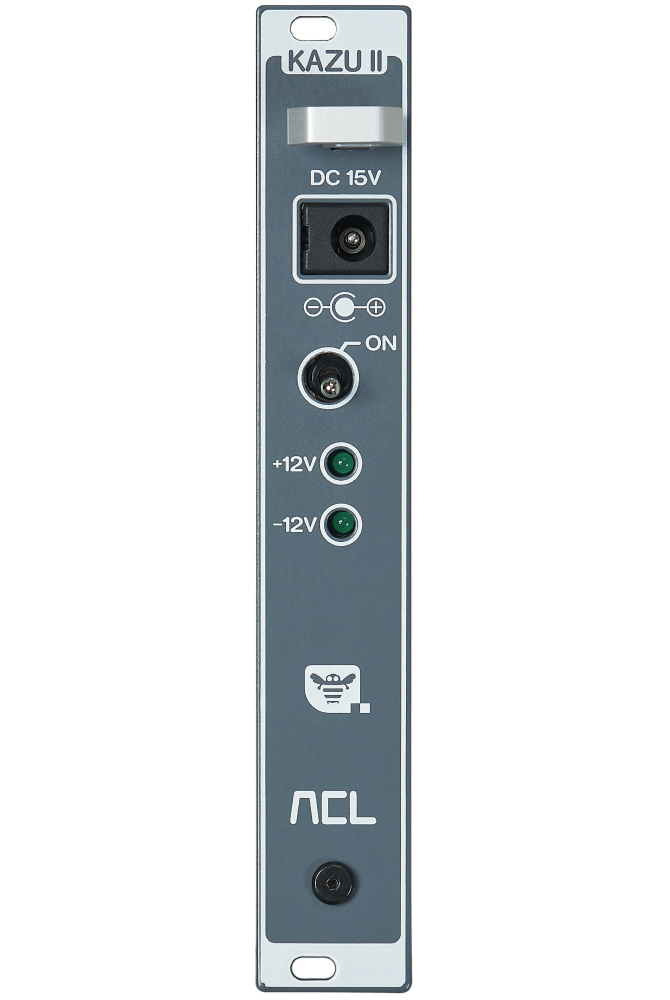

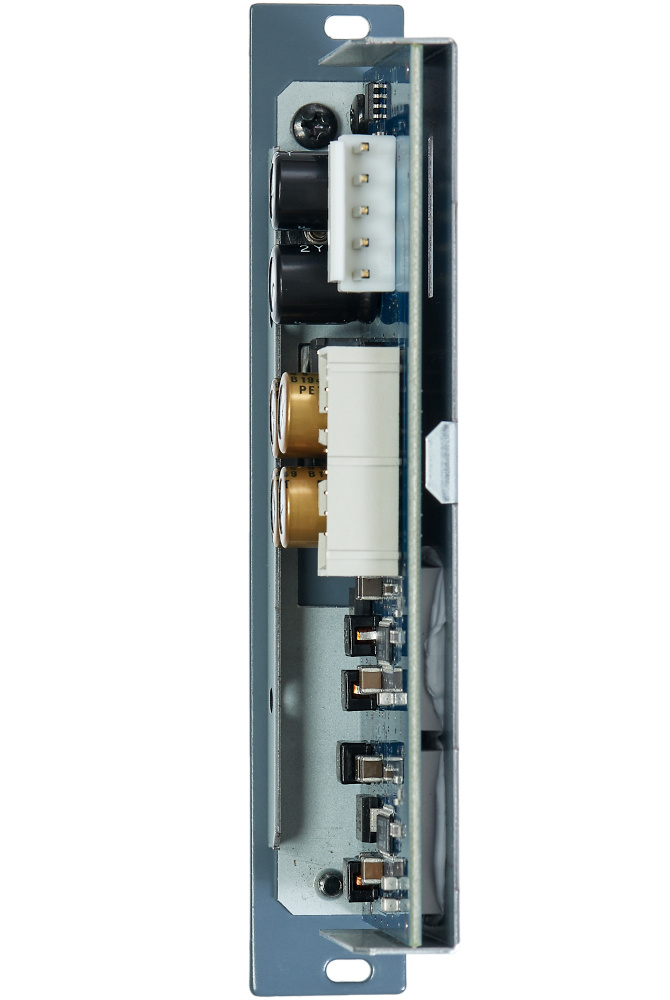

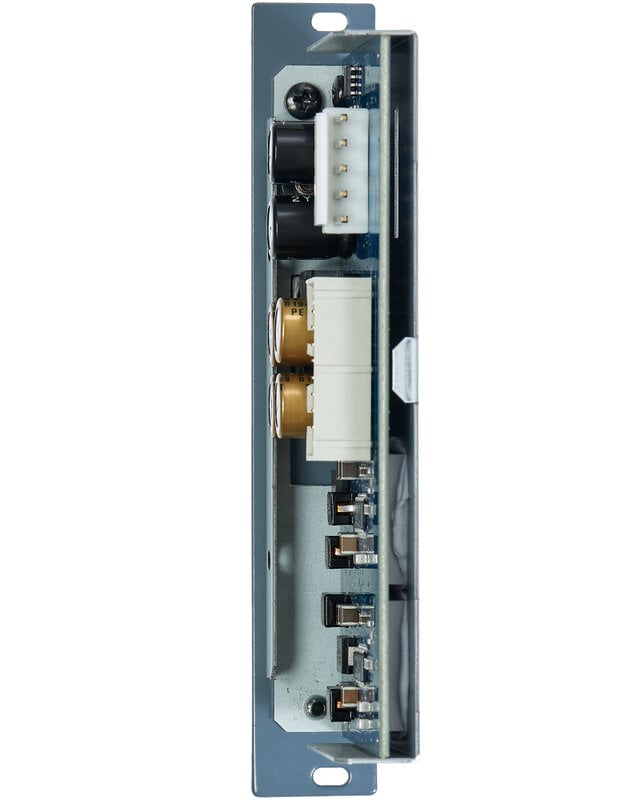

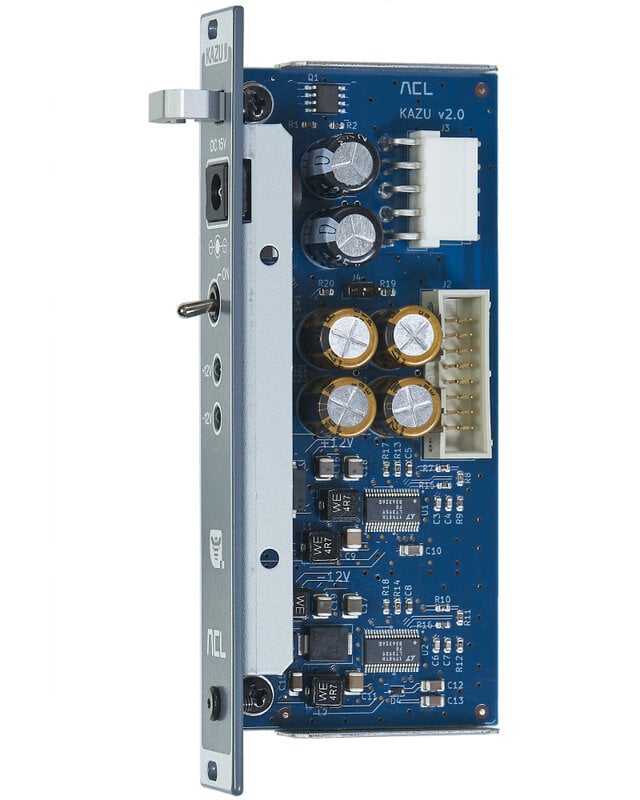

KAZU-V2 PSU-Module

KAZU V2 is a high-end power supply in slim 4 TE format. Interference and voltage peaks are minimal. As a result, modules connected to the KAZU V2 deliver exceptionally low-noise, honest sound. The maximum voltage values are 1500 mA to +12 V and -12 V. Thanks to high precision and stability, operation close to full load is no problem. Planning headroom? Heat problems? - Not with KAZU!

KAZU V2 is a switch mode power supply specially developed for modular systems, which can be used with a Flying Bus Board or EVE-1 Bus Board (sold separately). Thanks to extremely low interference and voltage peaks, modules connected to this PSU provide crystal-clear sound. It is also worth mentioning that KAZU V2 hardly heats up at all, even under high load. A protection against short circuits and overvoltages has of course also been implemented.

KAZU V2 offers the following performance data:

    +12 V: regulated, filtered. Less than 2 mV fluctuations and noise under full load. Typically 1.5 mV.
    -12 V: Regulated, filtered. Less than 2 mV fluctuation and noise at full load. Typically 1.5 mV.

Maximum current output:

    1500 mA to +12 V
    1500 mA to -12 V

• Please note: Kazu V2 does not have a 5V rail. To supply modules with 5V we recommend the use of a regulator like: Doepfer A-100 5V Adapter
• The necessary external +15VDC/5A AC adapter is not included.
