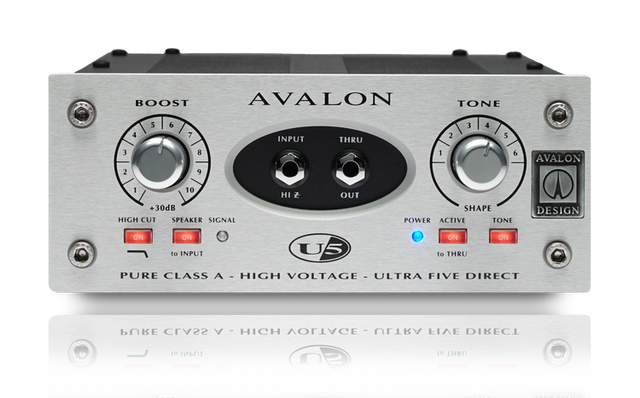

Avalon Design U5: The Ultimate High-Performance DI & Preamp
The Avalon Design U5 is a legendary, ultra-high performance instrument DI and preamplifier that has become the gold standard for bass and guitar recording worldwide. Utilizing a pure Class A signal path, the U5 delivers unparalleled musical detail and an extremely low noise floor. Its most beloved feature is the passive tone selector with 6 carefully voiced presets, ranging from flat response to deep "scooped" profiles perfect for slap bass. Whether in a high-end studio or on a world tour, the U5 ensures the true essence of your instrument is preserved and enhanced with professional authority.
Key Features:
Pure Class A Design: Ensures a transparent, dynamic, and rich sonic signature with zero crossover distortion.
6 Passive Tone Curves: Easily toggle between six specific EQ presets to find the perfect tone for any instrument.
High-Gain Preamp: Boosts low-output passive instruments to a robust line-level signal with ease.
Dual Output Versatility: Features both mic-level and high-headroom line-level XLR outputs.
Built-in High-Cut Filter: Effectively reduces unwanted high-frequency hiss and string noise for a cleaner take.
Technical Specifications:
Type: Mono Instrument DI / Preamplifier (Class A)
Inputs: 1/4" Instrument (Front), Speaker Level Input (Rear) for capturing amp tone.
Outputs: XLR balanced (Mic & Line level), 1/4" Thru (buffered)
Chassis: Heavy-duty steel with aluminum front panel
