    DescriptionCIAO!! + BITWIG 8-Track

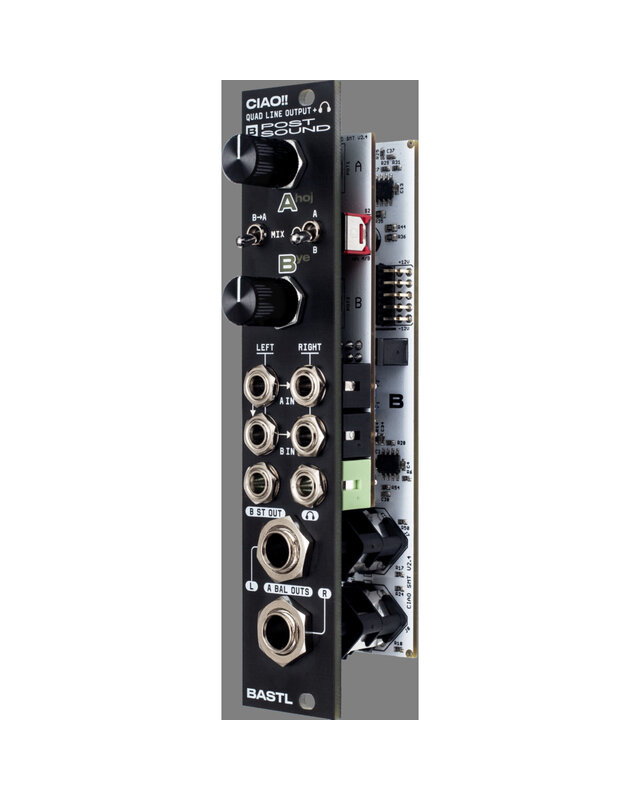

    Ciao!! is a compact and performance-oriented output module built with high-quality, low-noise components and layout for the best possible modular-to-line level conversion. It features 2 stereo line outputs, a headphone amplifier, and has a few tricks up its sleeve.

    Better sound quality for cleaner recordings

    Stereo pairs A and B each have dedicated level controls with signal indication and possible clipping warnings for the line input you are sending to. Channel A is equipped with 6.3mm (¼”) balanced jack outputs to minimize noise and ensure maximum quality when delivering to the sound system. Channel B outputs through a 3.5mm (⅛”) stereo jack, which can also serve as an additional headphone output. The dedicated headphone output provides high output power and includes a selection switch for listening to either A or B channels.

    Smart signal distribution

    The normalization of inputs makes it easier to distribute signals to some or all of the outputs. The MIX switch can blend Channel B into Channel A in stereo, opening up the module for several useful performance scenarios, such as pre-listening or simple stereo mixing.

    Features

    • 2 stereo channels A and B
    • Channel A output features 6.3mm (¼”) balanced jacks
    • Channel B output features 3.5mm (⅛”) stereo jack
    • Dedicated level controls for each channel
    • Signal indication with line-level clip detection
    • Clever input normalization
    • Headphone output with a channel-select switch
    • Stereo mix switch to mix Channel B into Channel A
    • Back jumper for customizing the normalization path

    Technical details

    • 5 HP
    • PTC fuse and diode protected 10-pin power connector
    • current consumption: <120 mA (w/o headphones), <190 mA (w/headphones to max)
    • depth (with power cable connected): 29 mm
    • input impedance: 100 kΩ
    • output impedance: 220 Ω
    • headphone impedance: 8–⁠250 Ω

    Downloads

    • user manual pdf
