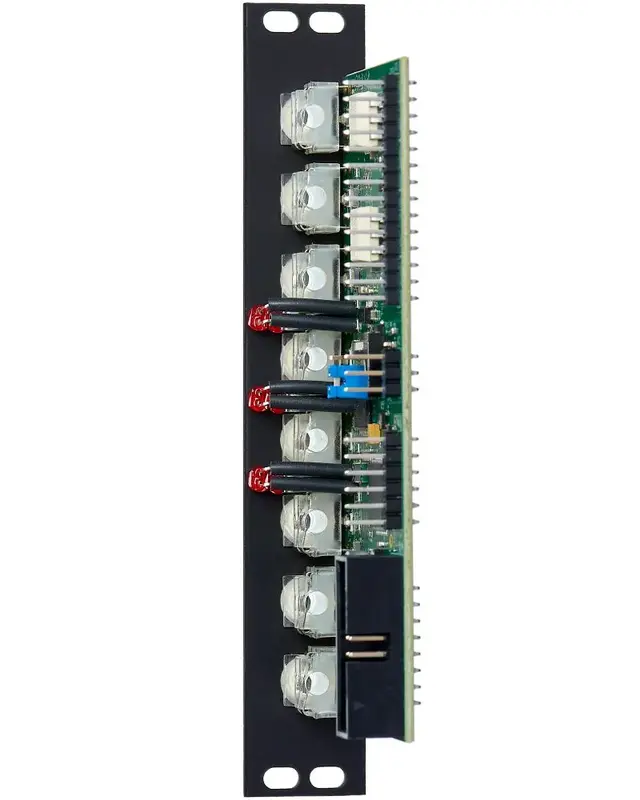

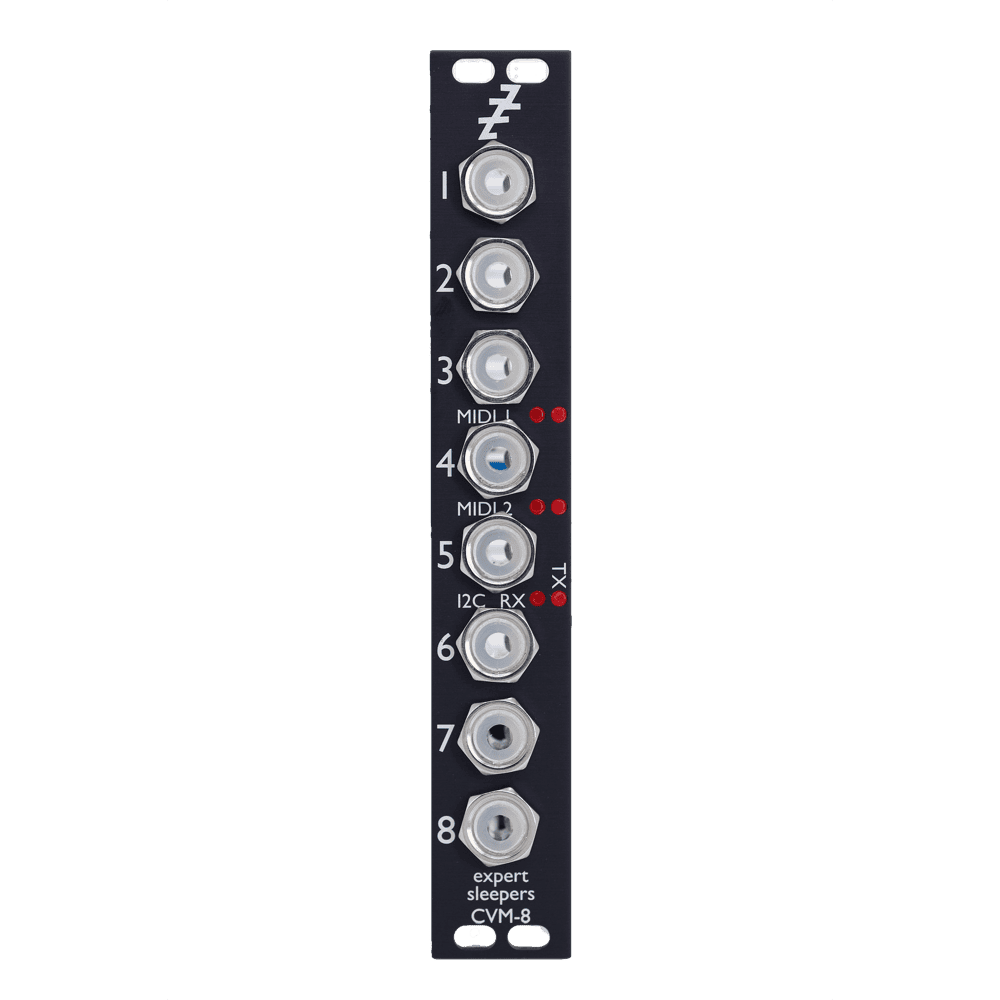

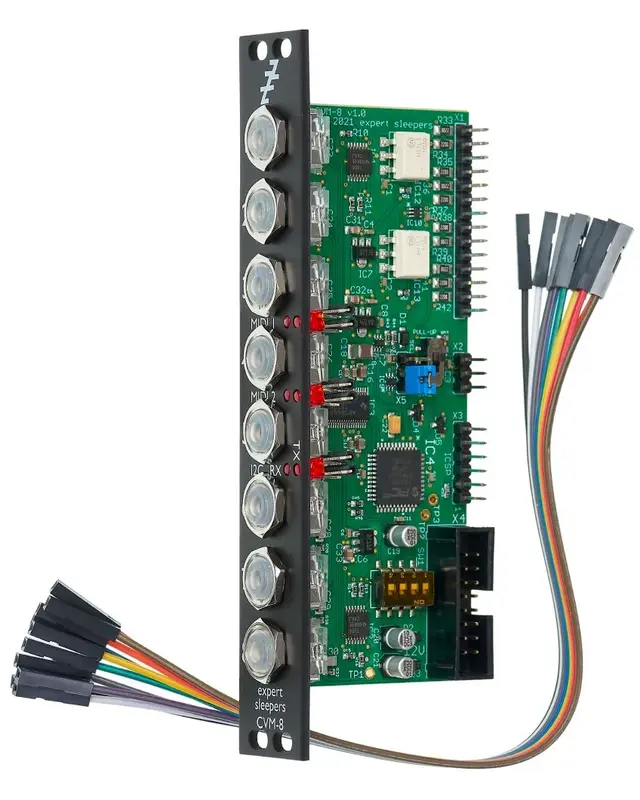

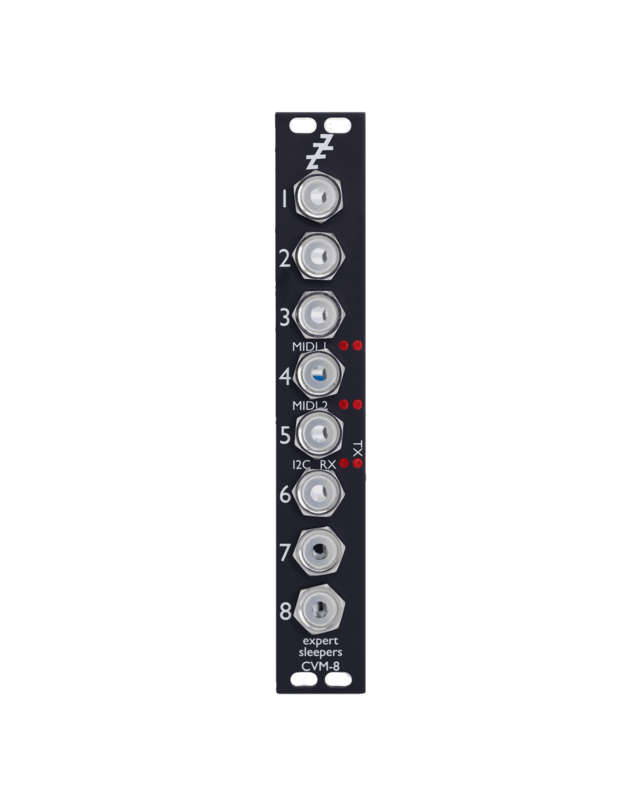

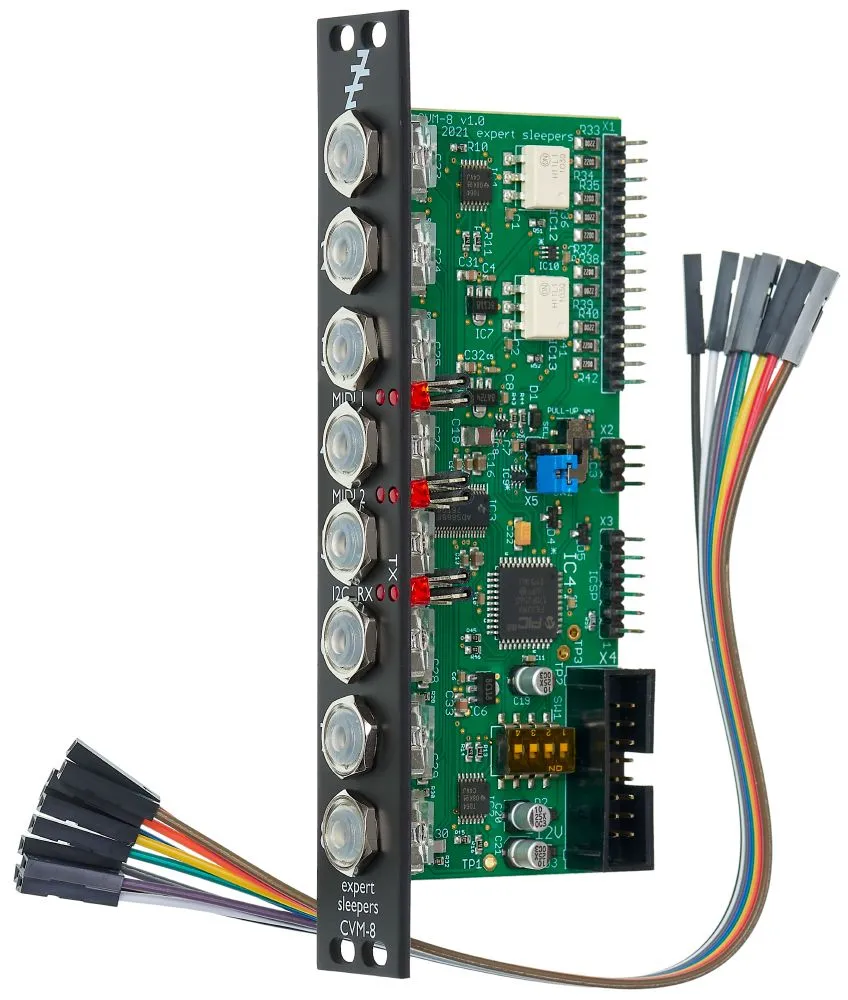

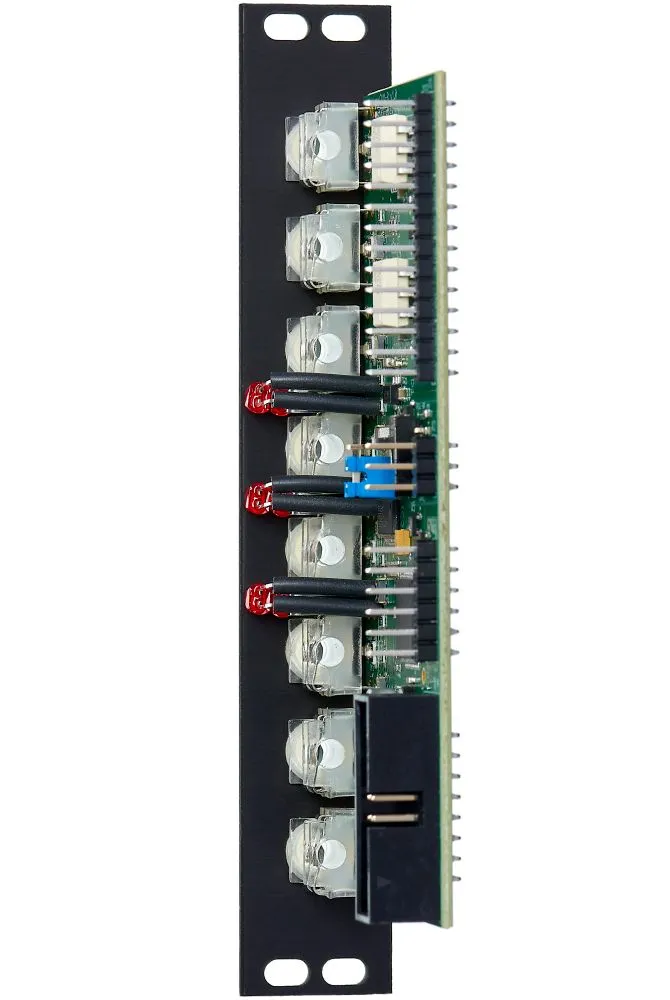

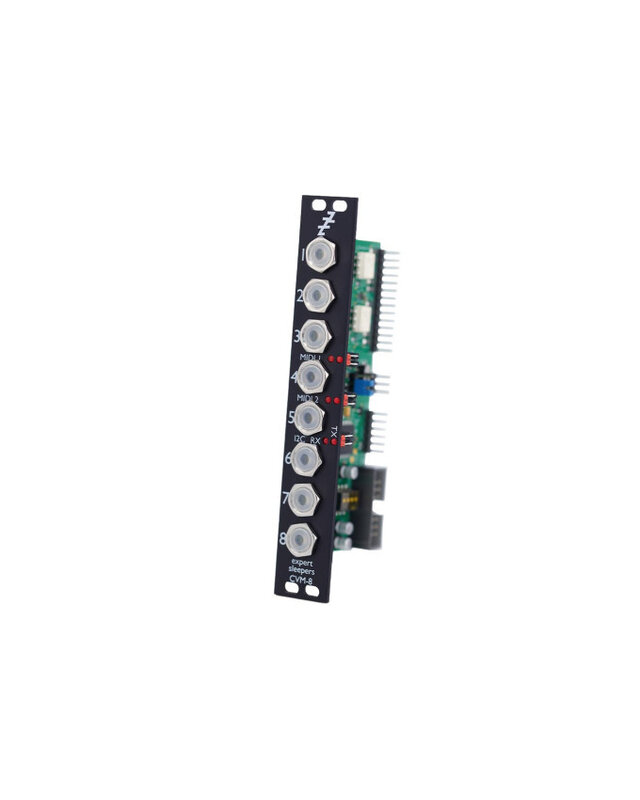

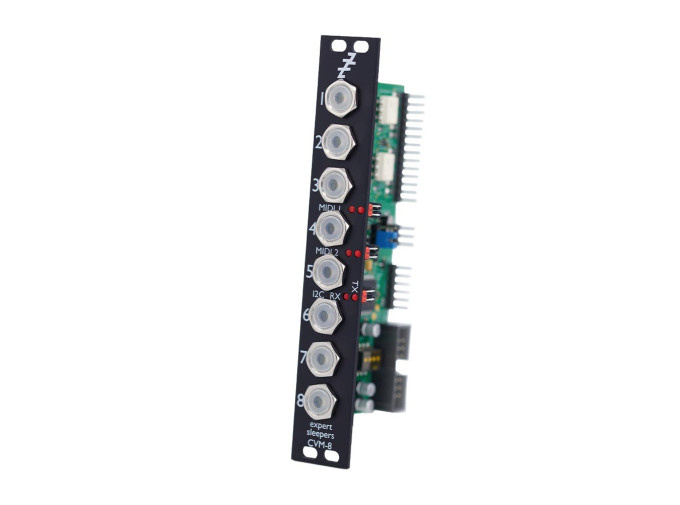

CVM-8 CV to MIDI/I2C Converter Eurorack Module

Expert Sleepers CVM-8: High-Precision CV to MIDI/I2C Hub

The CVM-8 is a high-density utility designed for the modern hybrid studio. It provides eight inputs that accurately convert Eurorack voltages into MIDI messages or I2C data. Whether you need to sync a hardware drum machine to your modular clock, control software VSTs with analog LFOs, or expand your system’s logic via I2C, the CVM-8 handles it with professional-grade speed and precision. Its flexible architecture allows each channel to be tailored to specific needs, from simple gate-to-note triggers to complex continuous controller mappings, all managed via a streamlined web configuration tool.

Key Features:

• Eight Independent Inputs: Convert CV/Gate to a vast range of MIDI messages (Notes, CC, Poly Pressure, etc.).

• Advanced I2C Support: Acts as a master/leader for I2C buses, expanding control over compatible modules.

• Low Latency & High Bit-Depth: Maintains the nuance and feel of your analog performances in the digital realm.

• Browser Configuration: Easy setup and preset management via a simple USB-connected web interface.

• OLED Visual Feedback: High-contrast display for real-time monitoring of input levels and data output.

Technical Specifications:

• Width: 8HP.

• Depth: 42mm.

• Inputs: 8x CV/Gate Inputs (high impedance).

• Connectivity: MIDI Out (TRS Minijack), I2C Header (Rear), USB (for configuration).

• Current Draw: +75mA (+12V), -12mA (-12V).
