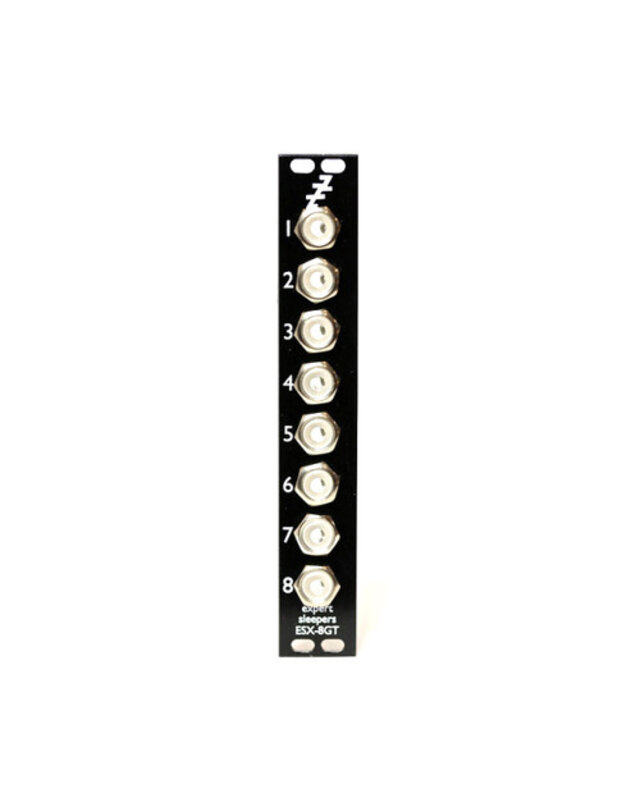

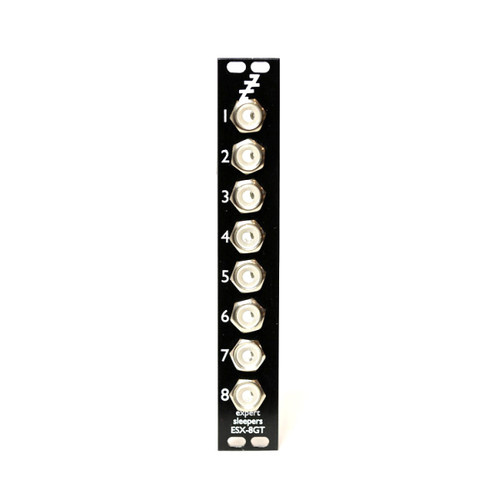

ESX-8GT Gate Expander Eurorack Module (MK3)

Expert Sleepers ESX-8GT MK3: Sample-Accurate Gate Expansion

The Expert Sleepers ESX-8GT MK3 is an essential expansion module for users looking to trigger modular drums and sequencers with ultimate precision. By connecting this module to a host interface like the ES-4, ES-40, or ES-5, you add eight independent gate outputs to your Eurorack system. The MK3 revision is optimized for lower power consumption and features a shallower profile, making it a perfect fit for modern skiff cases. When driven by your DAW, the ESX-8GT MK3 delivers timing that is far superior to standard MIDI interfaces, ensuring your rhythms remain rock-solid.

Key Features:

• Eight Gate Outputs: Perfect for driving triggers, gates, clock signals, and accents in any patch.

• Sample-Accurate Timing: Effectively removes jitter and latency for professional-grade rhythmic performance.

• MK3 Enhancements: Updated slim design and improved power efficiency for modern modular setups.

• Illuminated Sockets: Onboard LEDs provide immediate visual feedback of gate and trigger activity.



• Seamless Connectivity: Connects internally to your host module using the included expansion ribbon cable.

Technical Specifications:

• Width: 4HP

• Depth: 43mm

• Power Draw: +12V: 15mA, -12V: 0mA

• Outputs: 8x 3.5mm Gate/Trigger jacks

• Connection: 10-pin expansion header
