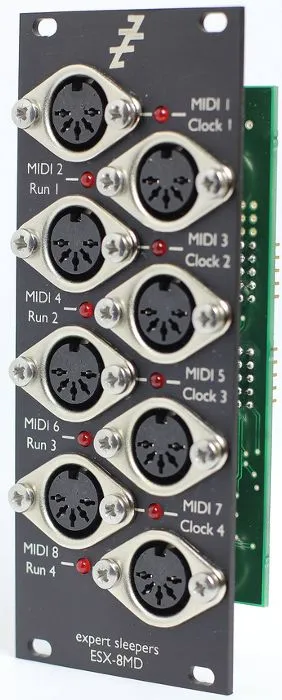

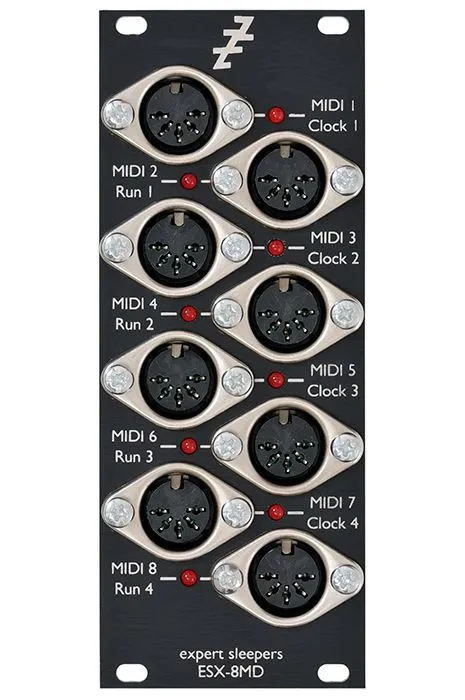

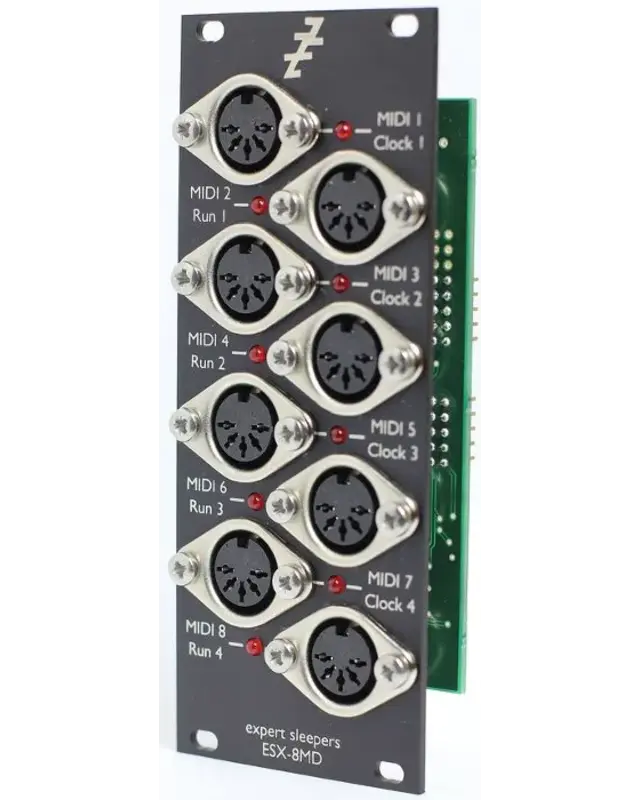

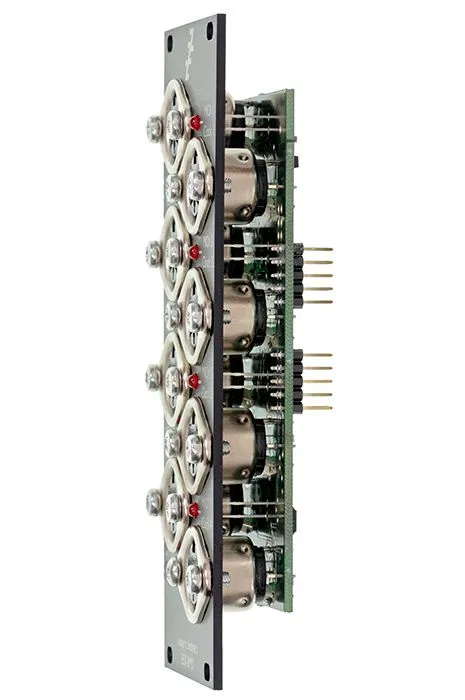

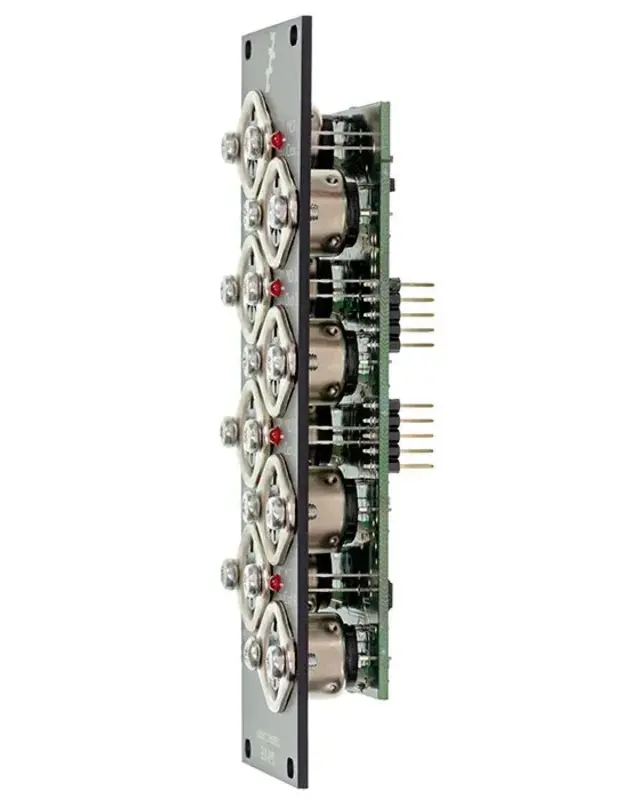

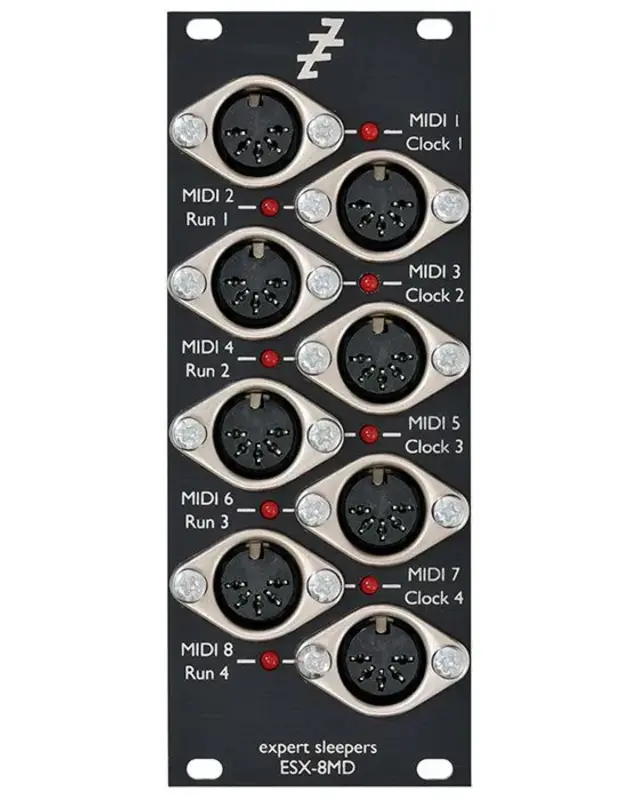

ESX-8MD MIDI/DIN Sync Eurorack Expander Module (MK2)

Expert Sleepers ESX-8MD MK2: Sample-Accurate MIDI and Sync

The Expert Sleepers ESX-8MD MK2 is a robust expansion module that transforms your Eurorack system into a central command hub for all your external MIDI and DIN Sync hardware. By connecting to a host module such as the ES-4, ES-40, or ES-5, you gain eight outputs that can each be independently configured.When used with the Silent Way software suite, the ESX-8MD MK2 delivers timing precision that far exceeds standard USB-MIDI interfaces, making it an essential tool for tight rhythms and the rock-solid integration of vintage drum machines.

Key Features:

• Eight Flexible Outputs: Can be individually assigned as MIDI ports or DIN Sync outputs for vintage gear.

• Sample-Accurate Timing: Effectively eliminates the jitter and latency issues common with traditional USB-to-MIDI interfaces.

• Low Profile Design: The MK2 revision is significantly shallower, ensuring compatibility with compact skiff cases.

• Seamless Host Integration: Designed specifically to expand the capabilities of the ES-4, ES-40, and ES-5 modules.

• Streamlined Connectivity: Includes the necessary ribbon cable for direct internal connection to your host interface.

Technical Specifications:

• Width: 4HP

• Depth: 43mm

• Power Draw: +12V: 31mA, -12V: 0mA

• Outputs: 8x 3.5mm jacks (supports MIDI/DIN Sync via breakout cables)

• Connection: 10-pin expansion header
