Eurorack MIDI Breakout Module

Expert Sleepers MIDI Breakout: Classic Connectivity for Modern Modules

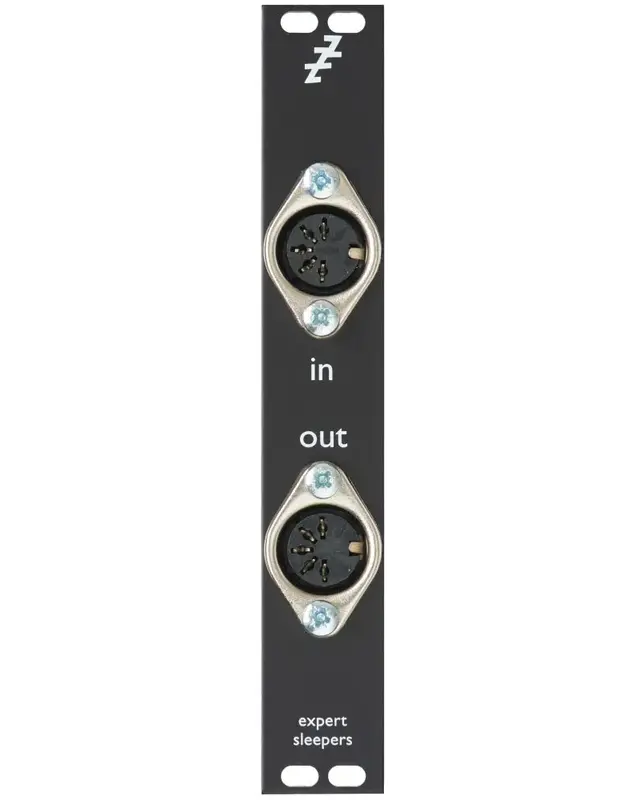

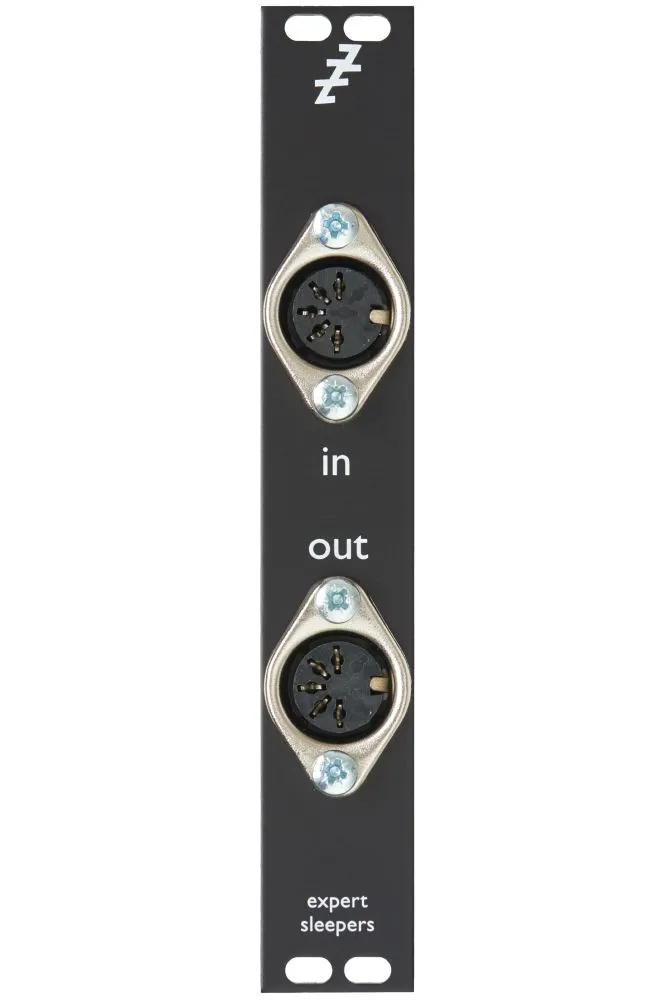

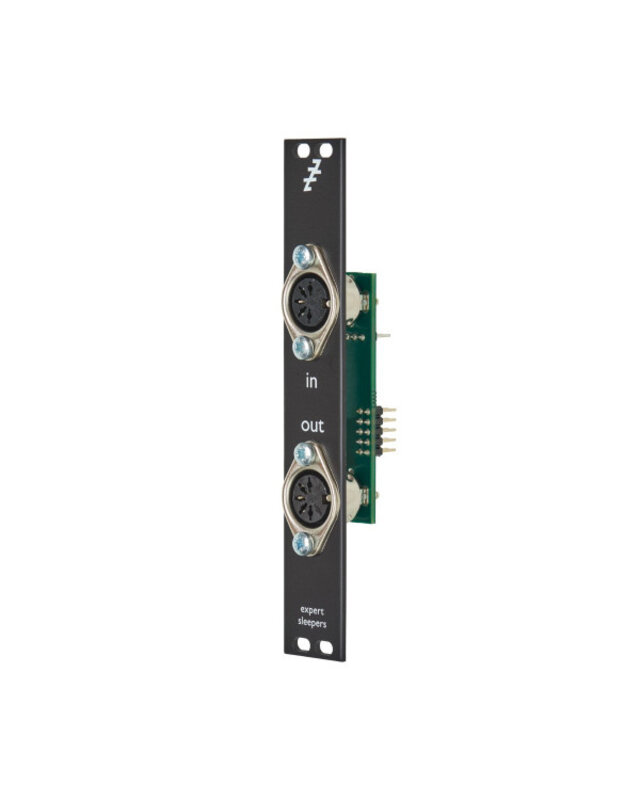

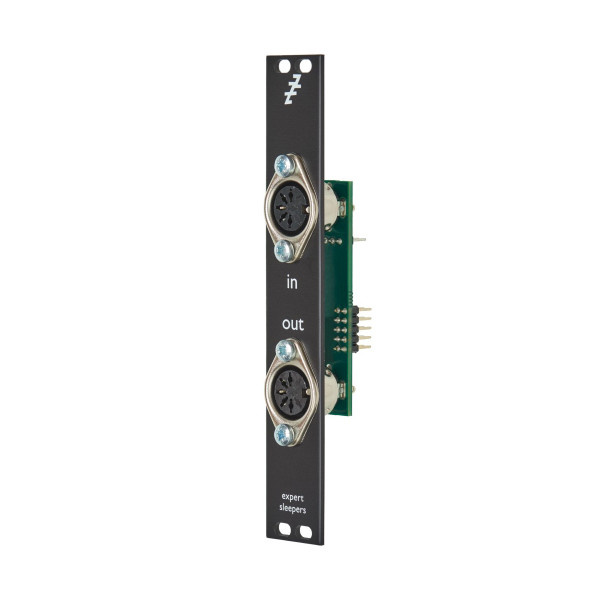

The Expert Sleepers MIDI Breakout is a passive expansion module designed to add standard 5-pin DIN MIDI connectivity to Expert Sleepers modules equipped with internal MIDI headers, such as the ES-8, ES-9, and the Disting series. By moving away from specialized adapters or minijack cables, this breakout provides a robust and familiar interface for your external keyboards, drum machines, and sequencers. Its compact 4HP footprint makes it an efficient solution for transforming your modular system into the central hub of your entire studio production environment.

Key Features:

• Standard DIN Ports: Features MIDI In, MIDI Out, and MIDI Thru functionality (dependent on host module capabilities).

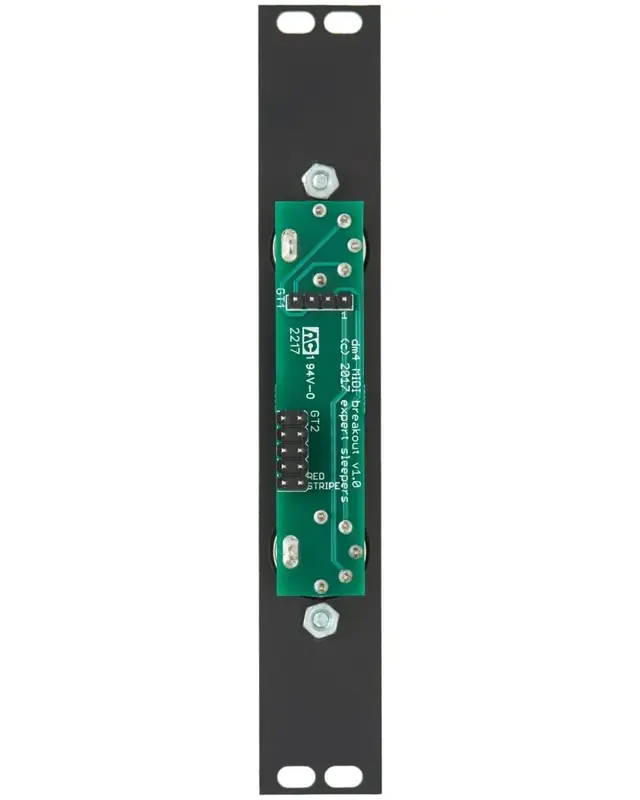

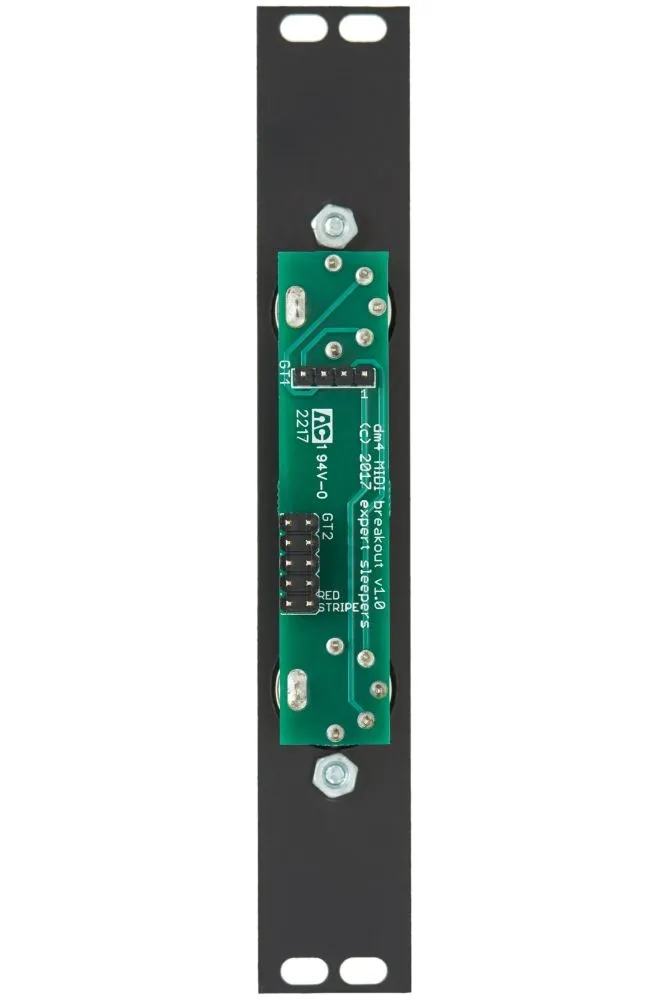

• Direct Internal Link: Connects seamlessly to compatible Expert Sleepers modules via included expansion headers.

• Passive Architecture: Draws no power from your system’s busboard; it is powered directly by the host module.



• Professional Build Quality: Outfitted with high-quality DIN connectors for reliable performance in studio and live settings.

• Utility Expansion: Provides essential MIDI interfacing while only occupying 4HP of rack space.

Technical Specifications:

• Width: 4HP

• Depth: 22mm

• Power Draw: Passive (no draw from power supply)

• Connectors: 2 or 3 5-pin DIN sockets (revision dependent)

• Compatibility: ES-8, ES-9, Disting MK4, Disting EX
