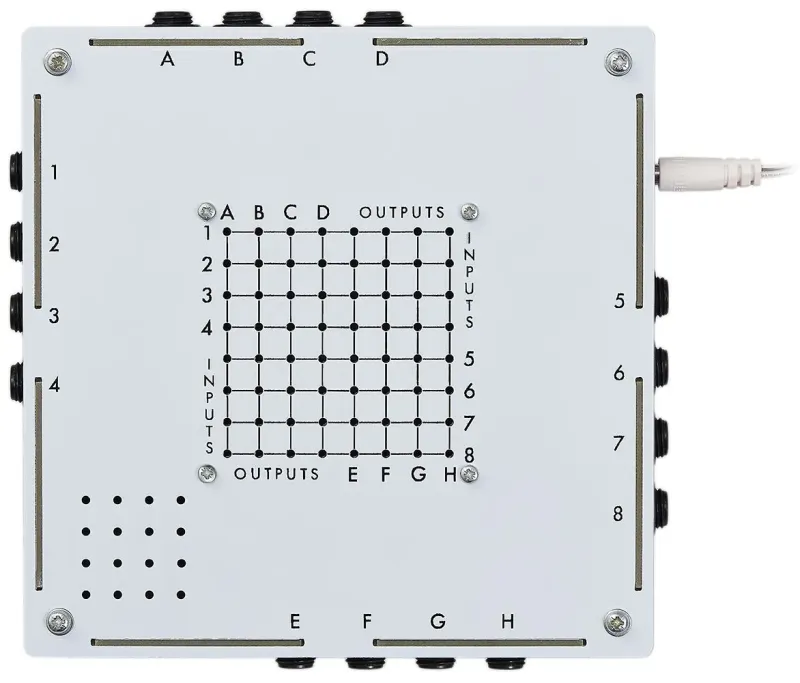

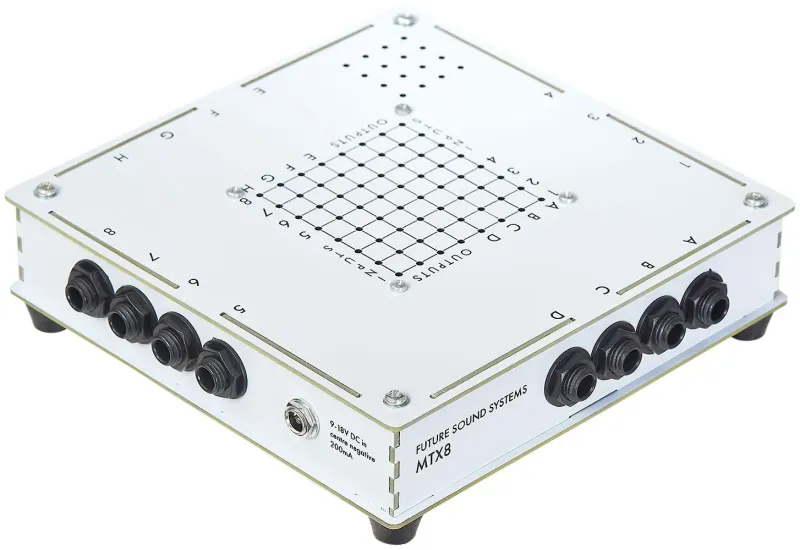

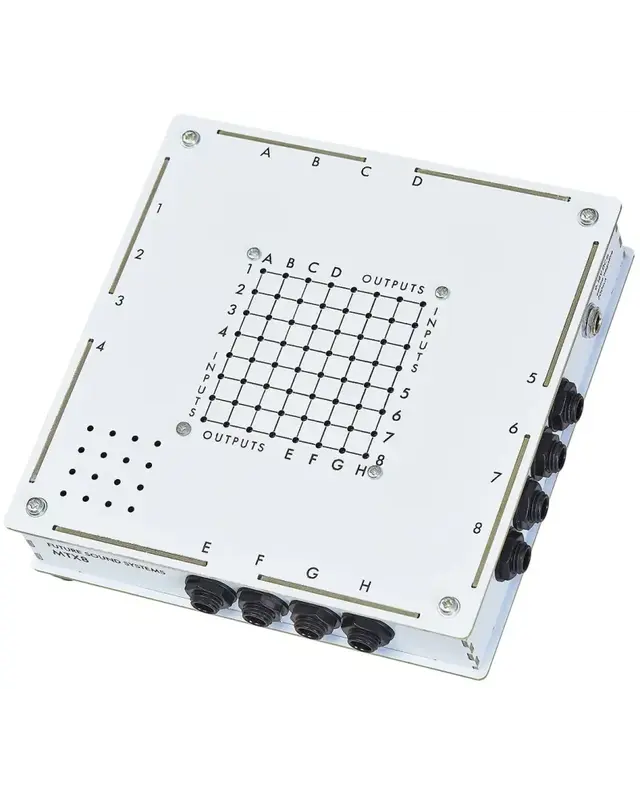

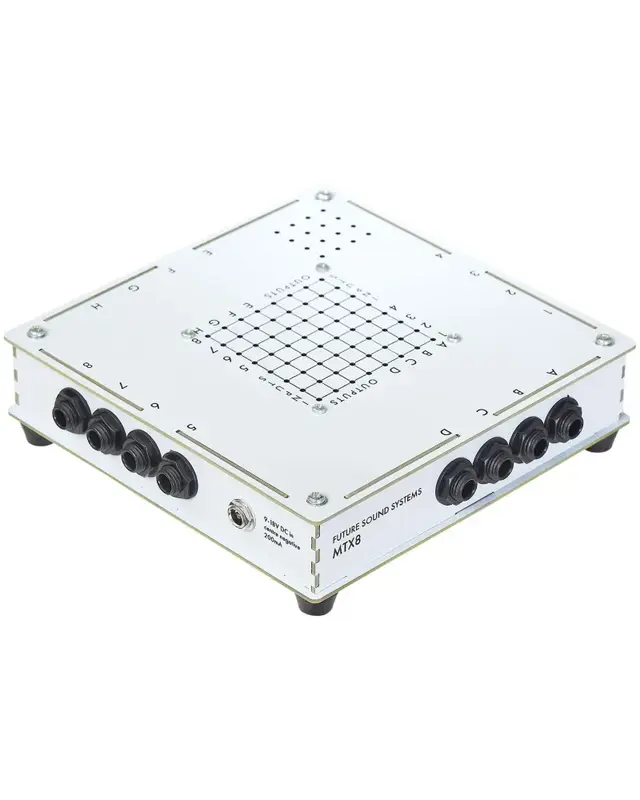

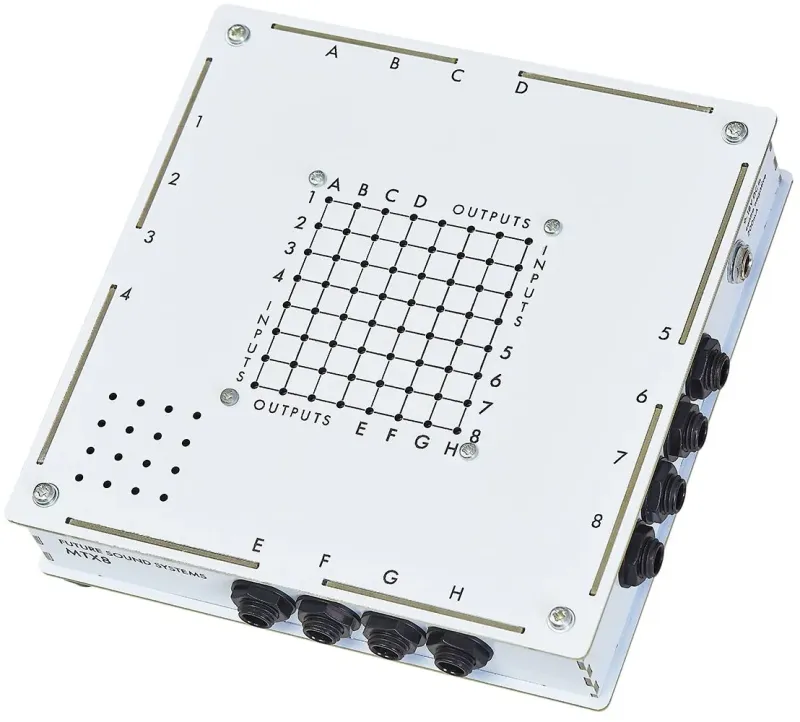

MTX8A Desktop Pin Matrix Mixer

Future Sound Systems MTX8A: Flexible Analogue Matrix for the Studio

The Future Sound Systems MTX8A is a high-performance 8x8 active analogue matrix mixer, engineered for modern electronic musicians and studio engineers. While the standard MTX8 is geared toward guitar levels, the MTX8A is optimized specifically for line-level signals from synthesisers, drum machines, and professional studio outboard gear. This central hub allows you to route eight sources to eight destinations via a classic pin-matrix interface.It enables the rapid creation of complex effect chains, parallel mixes, or experimental feedback loops—all without swapping a single cable on the rear panel. Thanks to active buffering, your signal levels remain consistent regardless of how many pins are inserted into the matrix.

Key Features:

• 8x8 Active Matrix: Seamlessly route any input to any output with zero signal degradation or crosstalk.

• Line-Level Optimized: Perfectly scaled for synthesisers and pro-audio signal chains.

• Tactile Pin Workflow: Inspired by legendary matrix synthesizers for a fast and intuitive patching experience.

• Rugged Desktop Enclosure: A durable metal chassis designed to sit at the heart of your studio desk.

• Versatile Processing: Effortlessly set up parallel routing, dry/wet blends, or complex feedback paths.

Technical Specifications:

• Inputs: 8x 6.3mm (1/4") Mono Jack (Line level)

• Outputs: 8x 6.3mm (1/4") Mono Jack (Line level)

• Matrix Type: Active analogue (buffered)

• Power: 9V DC (power supply included)

• Included: Set of 10 pins
