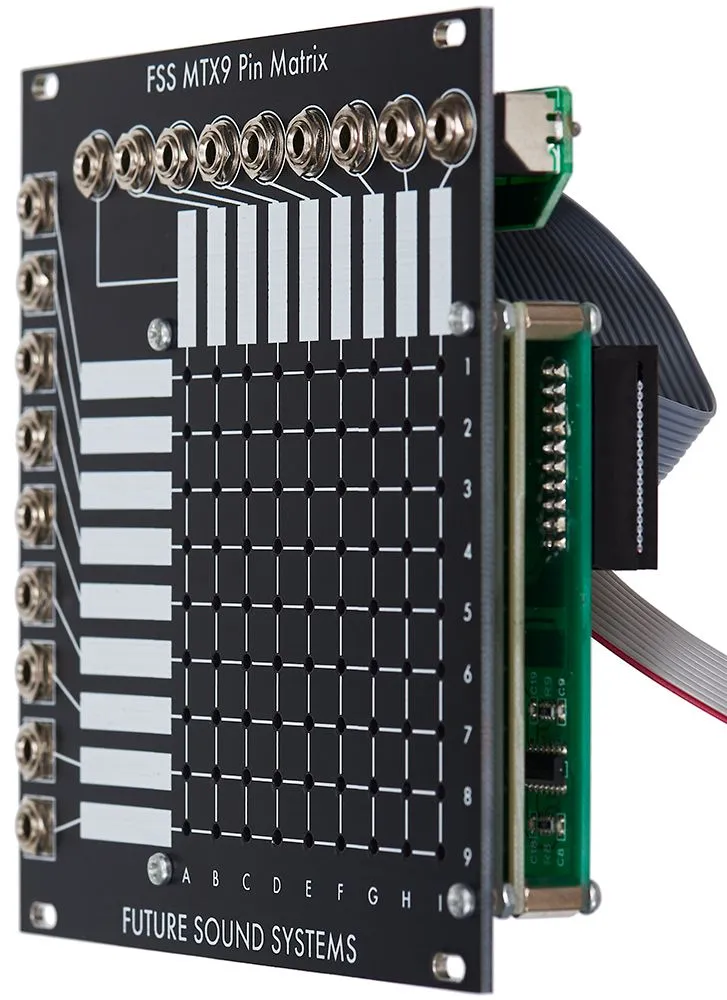

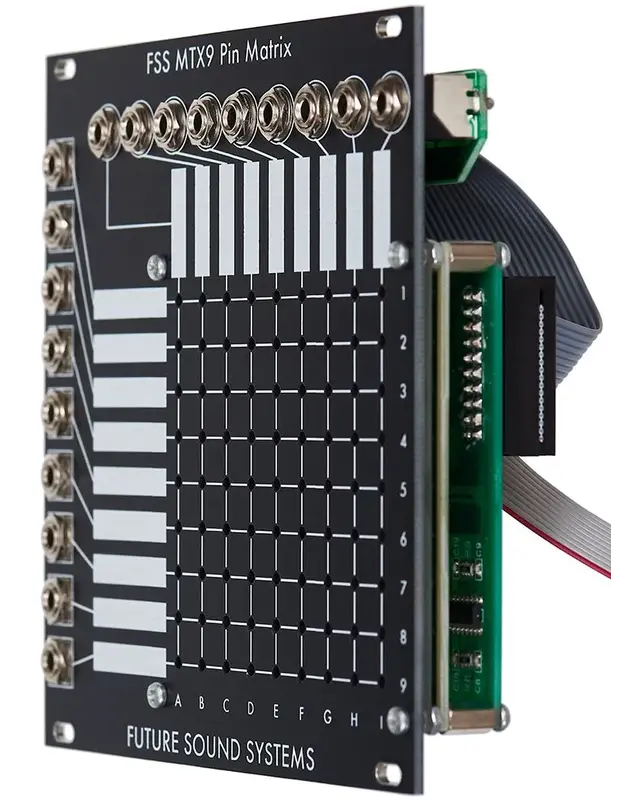

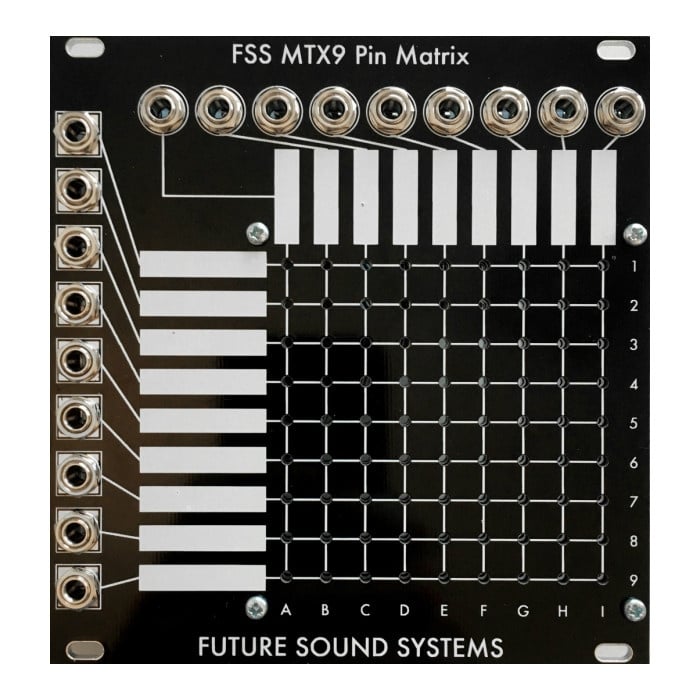

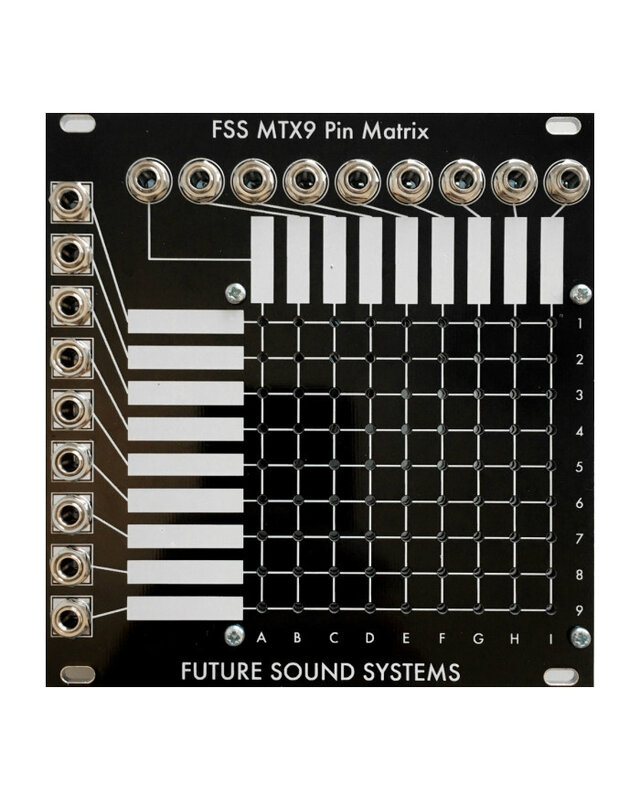

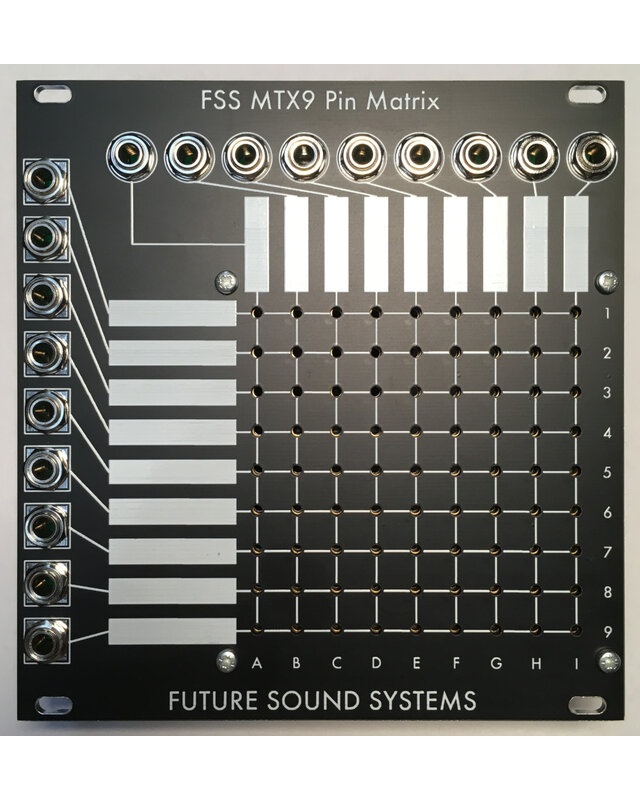

MTX9 Eurorack Passive Pin Matrix Module

Future Sound Systems MTX9: Tactile Signal Routing for Your Rack

The Future Sound Systems MTX9 brings the classic pin-matrix workflow to the Eurorack format. This 20HP module serves as a flexible, passive patch hub that allows you to route up to nine inputs to nine outputs. By simply inserting a pin into the matrix, you unlock a vast array of routing possibilities: use it as a switch, a signal splitter (multiple), or to establish complex feedback paths between your filters and effects. Because the module is entirely passive, it requires no power from your case, making it a reliable and noise-free addition to any modular system that demands quick, visual reconfiguration.

Key Features:

• 9x9 Pin Matrix: Route any input to any output instantly using the provided pins.



• Fully Passive Design: Zero power draw, ensuring no additional load on your Eurorack power supply.



• Multifunctional Utility: Functions as a patch bay, a signal multiple, or an experimental feedback hub.



• Clear Visual Feedback: Monitor your complex signal paths at a glance without cable clutter.

• Skiff-Friendly Depth: Slim profile ensures it fits into almost any Eurorack enclosure.

Technical Specifications:

• Width: 20HP

• Depth: 20mm

• Power Draw: 0mA (Passive)

• Connectors: 9x Inputs, 9x Outputs (3.5mm jacks)

• Included: Set of 10 pins
