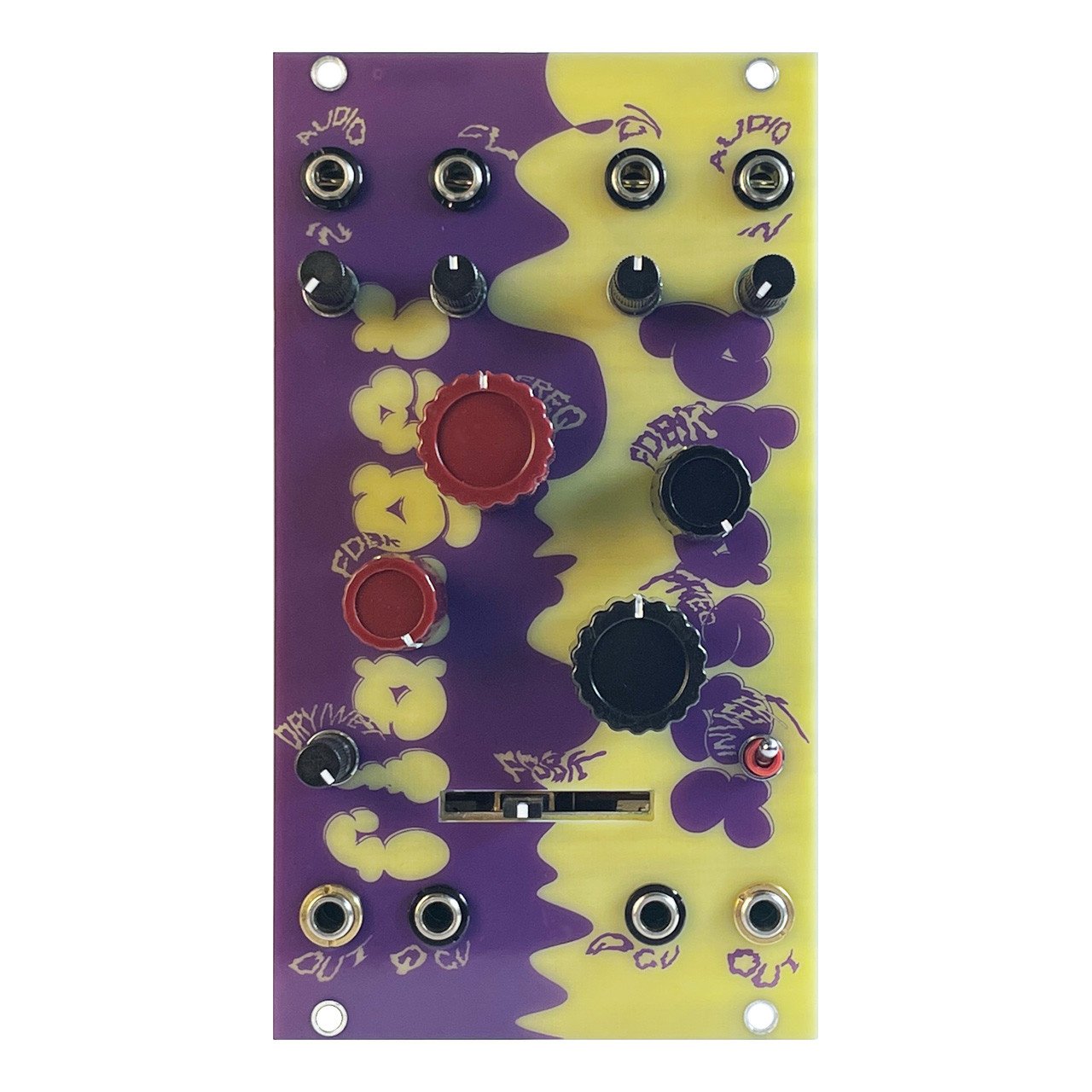

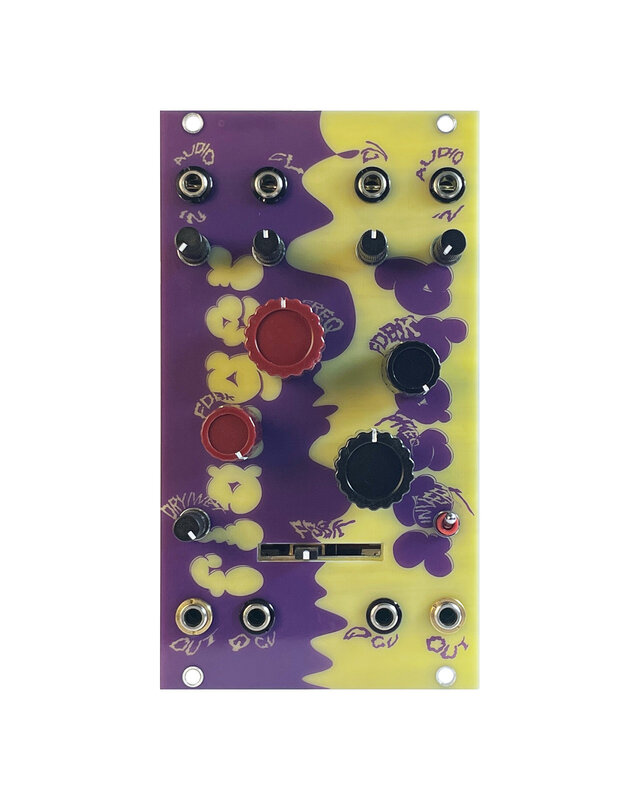

Ubique Eurorack Feedback Phase Network Module

Manifold Research Centre Ubique: A Journey Through Phase and Feedback

Ubique is a sophisticated signal processor operating at the intersection of filtering and time-delay. By utilizing a multi-stage network of all-pass filters, Ubique shifts the phase of incoming audio without directly altering its spectral content. When the internal feedback path is engaged, the module generates deep comb-filtering, resonant peaks, and atmospheric "ghost" tones. Ubique is exceptionally well-suited for transforming static oscillators into moving, organic soundscapes or generating percussive strikes through self-oscillation.

Key Features:

• Complex Phase Architecture: Multiple stages of phase-shifting for rich, 3D sonic textures.

• Integrated Feedback Network: Dial in intense resonances or infinite drones via internal signal loops.

• Voltage Controlled Parameters: Full CV control over Phase offset and Feedback intensity for dynamic modulation.

• Stereo Enhancement: Effectively creates wide spatial movement even from monophonic sound sources.

• Non-Linear Interaction: Responds dynamically to incoming audio levels, perfect for expressive sound design.

Technical Specifications:

• Width: 12HP

• Depth: 25mm

• Power Draw: +12V: 85mA, -12V: 40mA

• I/O: Main Audio Input, Phase CV Input, Feedback CV Input, Dual Audio Outputs (L/R)
