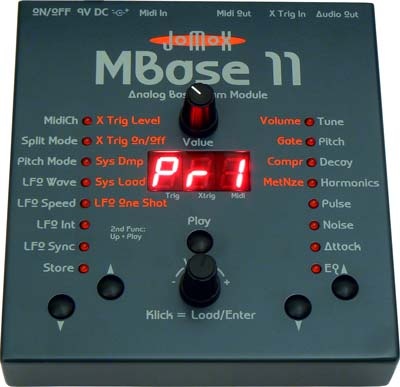

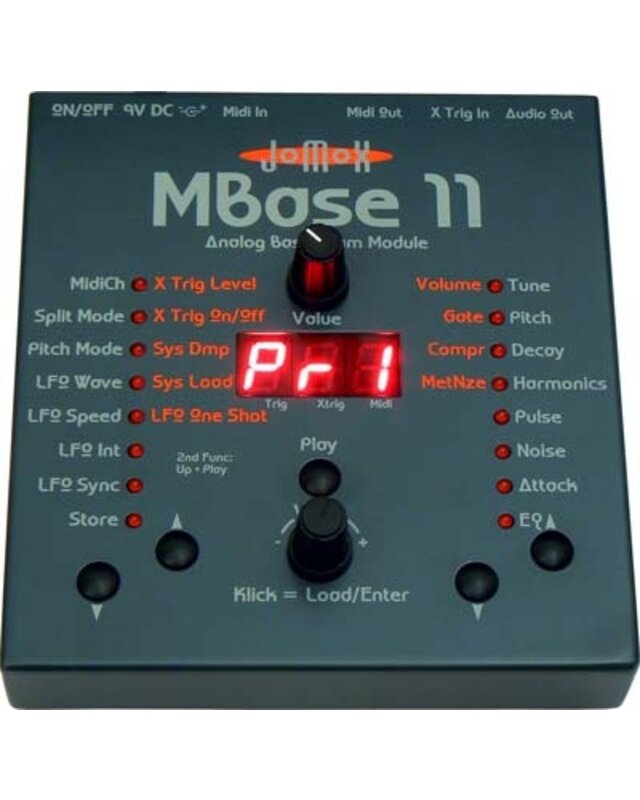

MBase11

The MBase11 does one thing – but it does it better than anything else: phat analog kick drums.

Building on the legacy of the MBase01, this updated version offers more versatility, better performance, and an even punchier sound. From booming 808-style sub kicks to snappy 909-style thumps, and everything in between, the MBase11 is more than just a drum module — it’s a dedicated bass drum synthesizer.

With advanced shaping options such as harmonic enrichment, pulse and noise attack layers, compression, and metalized noise variations, you can sculpt kicks ranging from subtle and soft to earth-shakingly powerful.

For live drummers, the external analog trigger input makes it easy to reinforce acoustic kits with massive electronic bass. For producers, full MIDI control of all parameters and syncable LFO modulation turn it into a versatile studio tool.

And with its compact size and affordable price, the MBase11 saves you the hassle of sample searching, delivering real analog bass you can feel.

Highlights

• Fully analog bass drum synthesis

• Covers a wide range: 808-style, 909-style, and beyond

• LFO with 8 waveforms (syncable via MIDI clock or free-run; includes one-shot mode)

• Compression & gate controls for punchy, snappy kicks

• Metalized noise generator with 255 variations for unique attack shaping

• External analog trigger input (with sensitivity adjustment)

• Intuitive editing via data wheel + potentiometer + touchpad

• Compatible with Jomox MIDI editors/templates

Specifications

• Instrument: Bass Drum

• Presets: 110 (10 User RAM, 100 FLASH)

• Sound engine: Fully analog with storable parameters

• Envelopes: Analog

• LFO: 8 waveforms (Saw +/-, Sine +/-, Triangle +/-, Rectangle +/-)

• Display: 3-digit LED, 7-segment

• MIDI: In/Out (full parameter control + sync)

• User Interface: 1 data wheel, 1 potentiometer, 5 buttons, 16 parameter LEDs

• Outputs: 1× mono out (1/4" jack, RCA compatible)

• Output Level: ~0 dBu

• Input: External analog trigger (adjustable sensitivity)

• Power: External PSU, 9V DC

• Dimensions: 145 × 155 × 35 mm

• Weight: ~0.5 kg (1.1 lbs)
