Studio 2 OTG Tracktion Ed.

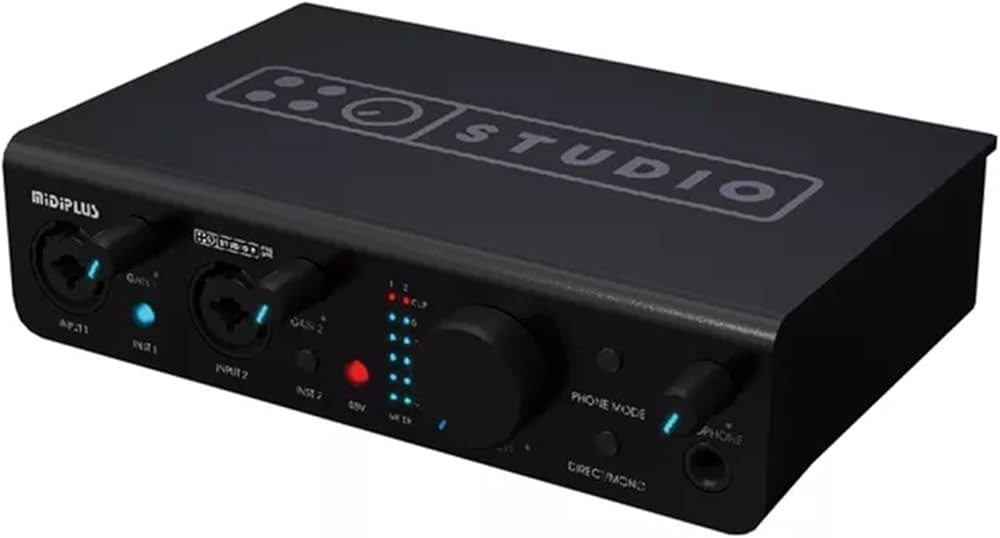

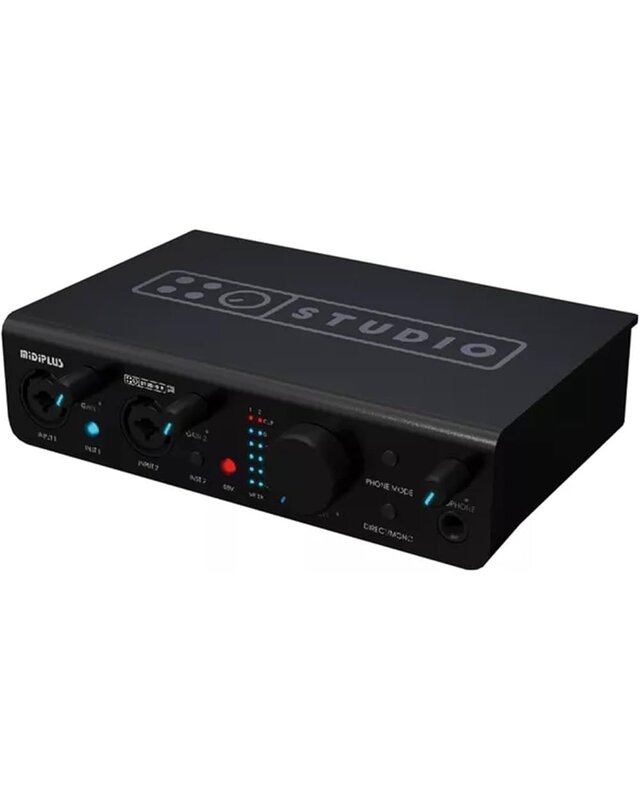

MIDIPLUS Studio 2 OTG Tracktion Edition: Compact USB Audio Interface with OTG Support

The MIDIPLUS Studio 2 OTG Tracktion Edition is a versatile 2-in/2-out USB audio interface delivering high-quality sound in a compact form factor. Featuring 24-bit/192kHz resolution, OTG support for direct mobile device connection, and a useful direct monitoring feature, this interface is perfect for studio recordings, live streaming, and mobile productions.

Key Features:

• 2 Mic/Line/Hi-Z combo inputs with 48V phantom power

• Support for 24-bit/192kHz audio resolution

• OTG functionality for direct connection to smartphones and tablets

• Direct monitoring with stereo/mono switch

• Independent volume control for headphone and monitor outputs

• 6-segment LED level meter for precise signal monitoring

• Includes USB Type-C cable, 1/4" to 1/8" adapter, 1/8" to 1/8" TRRS cable, and quick start guide

Technical Specifications:

• Connections: 2 x XLR/TRS combo inputs, 2 x 1/4" TRS outputs, 1 x 1/4" headphone output, 1 x 1/8" phone jack, 1 x OTG port, 1 x USB Type-C port

• Buttons: 2 x Hi-Z switches, 1 x OTG switch, 1 x 48V switch, 1 x mono switch

• Knobs: 2 x input gain controls, 1 x monitor level control, 1 x headphone volume control

• Dimensions: 186 x 116 x 47 mm

• Weight: 0.68 kg

• Compatibility: Windows XP, Vista, 7, 8, 10 and macOS
