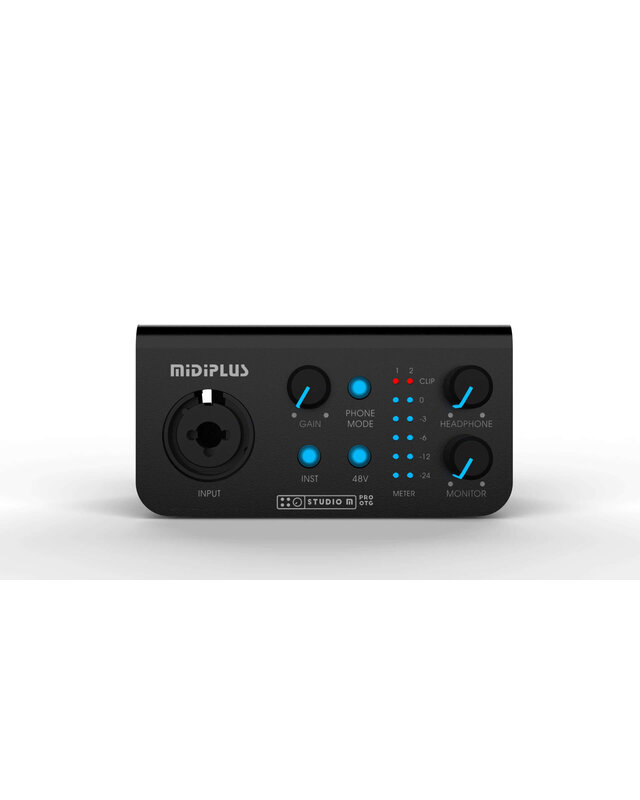

Studio M pro OTG GEN II

MIDIPLUS Studio M Pro OTG GEN II: Compact USB Audio Interface with OTG Support

The MIDIPLUS Studio M Pro OTG GEN II is a versatile 1-in/2-out USB audio interface that delivers high-quality sound in a compact form factor. With 24-bit/192kHz resolution and OTG support, this interface is perfect for studio recordings and mobile applications.

Key Features:

• 1 Mic/Line/Hi-Z combo input with 48V phantom power

• Support for 24-bit/192kHz audio resolution

• OTG functionality for direct connection to mobile devices

• Direct monitoring with stereo/mono switch

• Independent volume control for headphone and monitor outputs

• Compact and robust design

Technical Specifications:

• Connections: 1 x XLR/TRS combo input, 2 x 1/4" TRS outputs, 1 x 1/4" headphone output, 1 x 1/8" phone jack, 1 x OTG port, 1 x USB port

• Buttons: 1 x 48V switch, 1 x Hi-Z/mic switch, 1 x OTG switch

• Knobs: 1 x input gain control, 1 x monitor level control, 1 x headphone volume control

• Dimensions: 116 x 90 x 46 mm

• Accessories: USB cable, quick start guide, 1/4" to 1/8" adapter, 1/8" to 1/8" TRRS cable
