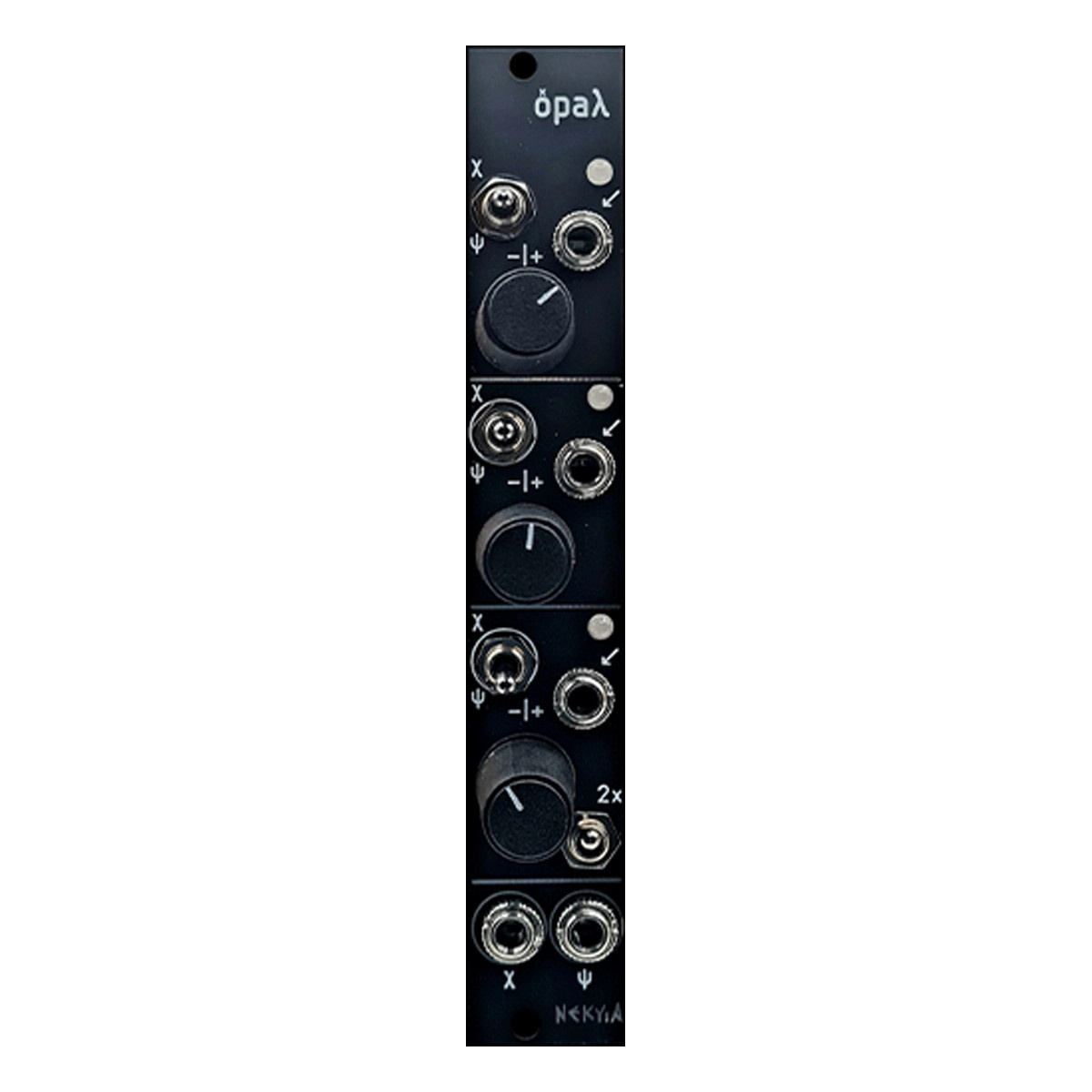

Opal Eurorack Triple Switched Attenuverter Module

Nekyia Circuits Opal: Three Channels of Pure Control

The Opal is a high-utility module designed to significantly expand the control potential of your Eurorack system. Each of its three independent channels can attenuate, pass-thru, or invert an incoming signal with extreme precision. The integrated toggle switches allow for rapid mode changes—perfect for live performance—while the high-quality potentiometers ensure smooth voltage transitions. When no input is present, each channel normalizes to a stable DC offset, providing manual control for modules lacking onboard knobs. Opal is the ultimate solution for keeping your modulation organized and your signal paths optimized.

Key Features:

• Triple Attenuverter Architecture: Three separate processing paths for maximum utility in just 8HP.

• Switched Versatility: Dedicated switches for instant phase inversion or signal muting.



• Internal DC Offsetting: Generate reliable control voltages for biasing external parameters.

• Bipolar Signal Path: Precision handling of both unipolar and bipolar CV, as well as audio signals.



• Visual Monitoring: Tri-color LEDs provide real-time feedback on signal intensity and polarity.

Technical Specifications:

• Width: 8HP

• Depth: 20mm

• Power Draw: +12V: 30mA, -12V: 25mA

• I/O: 3x Signal Inputs, 3x Signal Outputs
