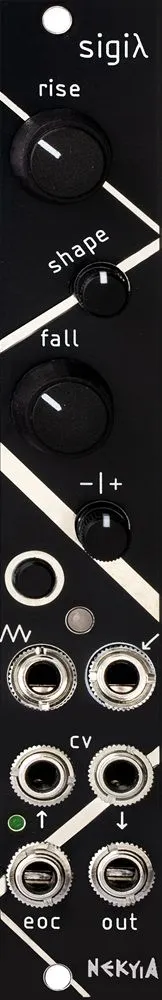

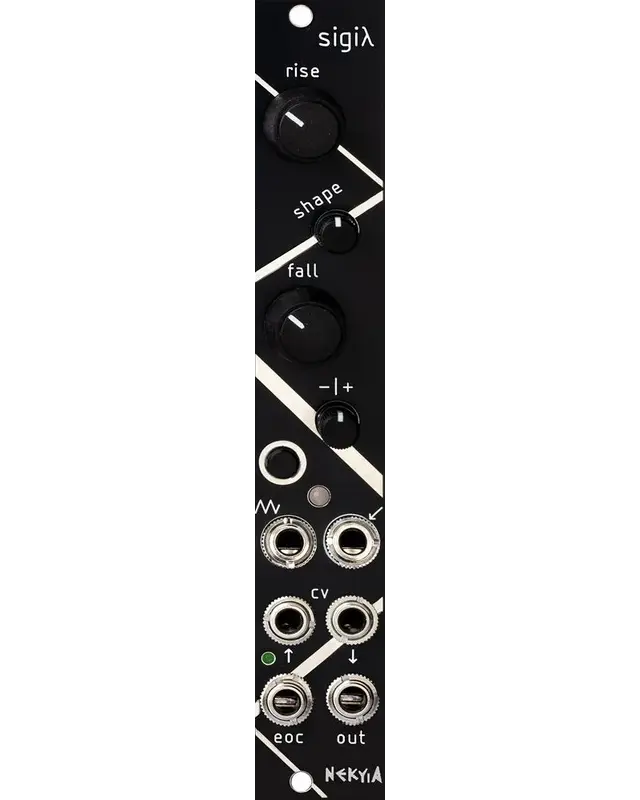

Sigil Eurorack Function Generator Module

Nekyia Circuits Sigil: The Architect of Modulation

The Sigil is a multi-functional building block that masters the fundamental aspects of control voltage. At its core, it is an integrator that transforms incoming gates into fluid Rise and Fall ramps. With Sigil, you can craft sharp Attack-Decay envelopes for percussion or switch the module into "Cycle" mode to function as a versatile LFO. Its integrated Slew functionality also allows you to smooth out abrupt transitions from sequencers for classic "glide" effects. Sigil is engineered for musicians who demand maximum utility from a small footprint without sacrificing analog warmth and precision.

Key Features:

• Versatile Functionality: Operates as an Envelope Generator, LFO, Slew Limiter, or Voltage Divider.



• Independent Rise/Fall Control: Precision sliders or knobs to shape the leading and trailing edges of your signal.



• Cycle Mode: Allows the module to self-trigger, creating evolving, continuous modulation cycles.



• Comprehensive CV Implementation: Voltage control over Rise and Fall times for dynamic, complex movement.

• Space Efficient: Packs essential "West Coast" utility into a compact 8HP module.

Technical Specifications:

• Width: 8HP

• Depth: 25mm

• Power Draw: +12V: 35mA, -12V: 30mA

• I/O: Trigger/Gate Input, Rise/Fall CV Inputs, Signal Input (for Slew), Main Signal Output
