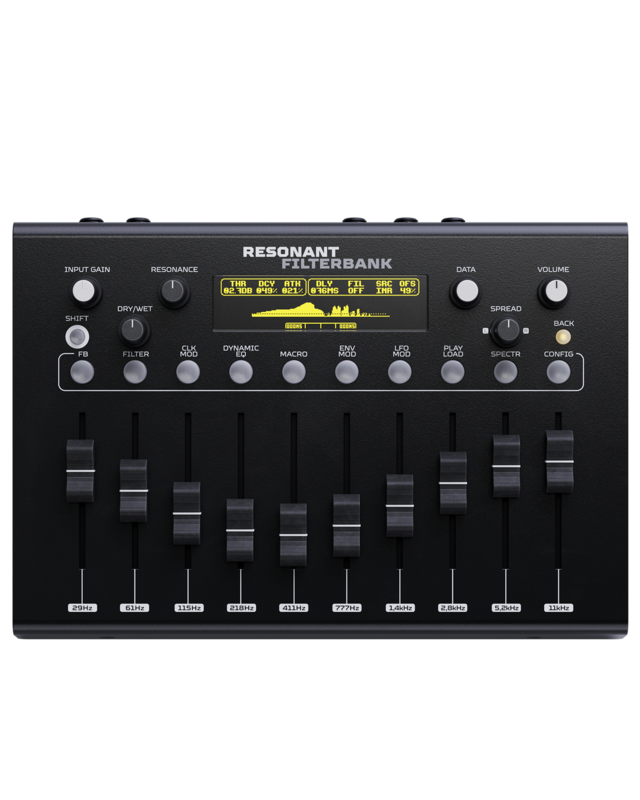

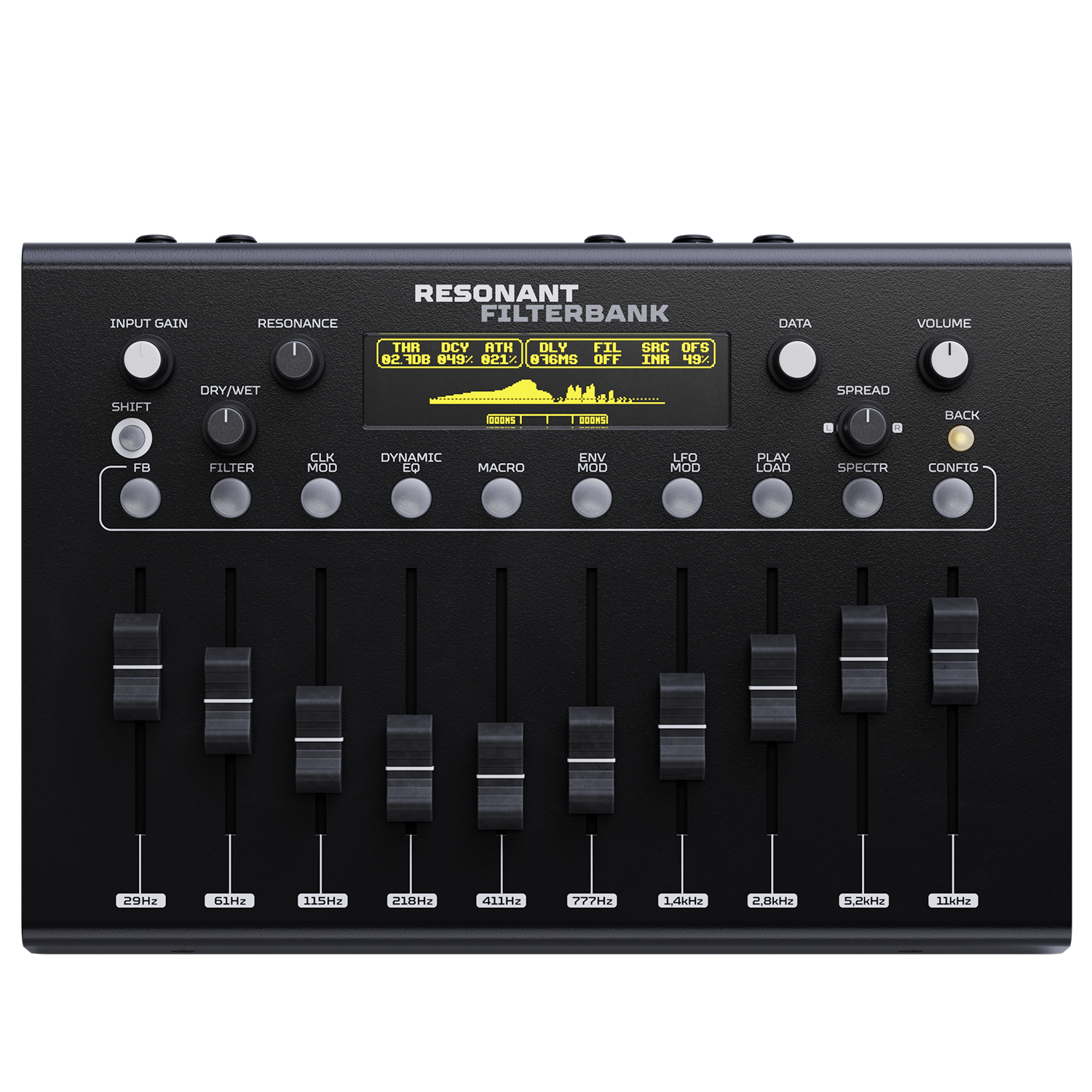

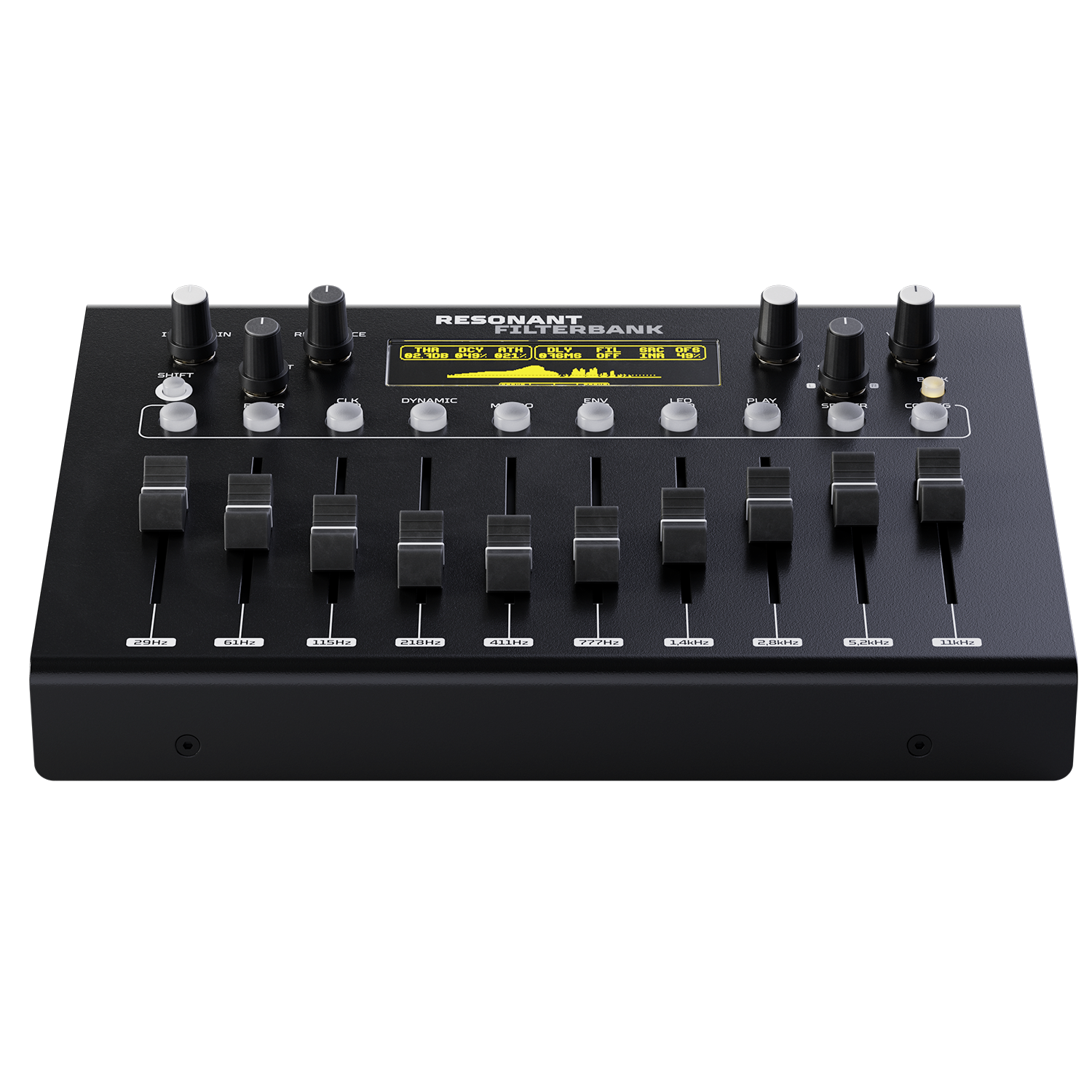

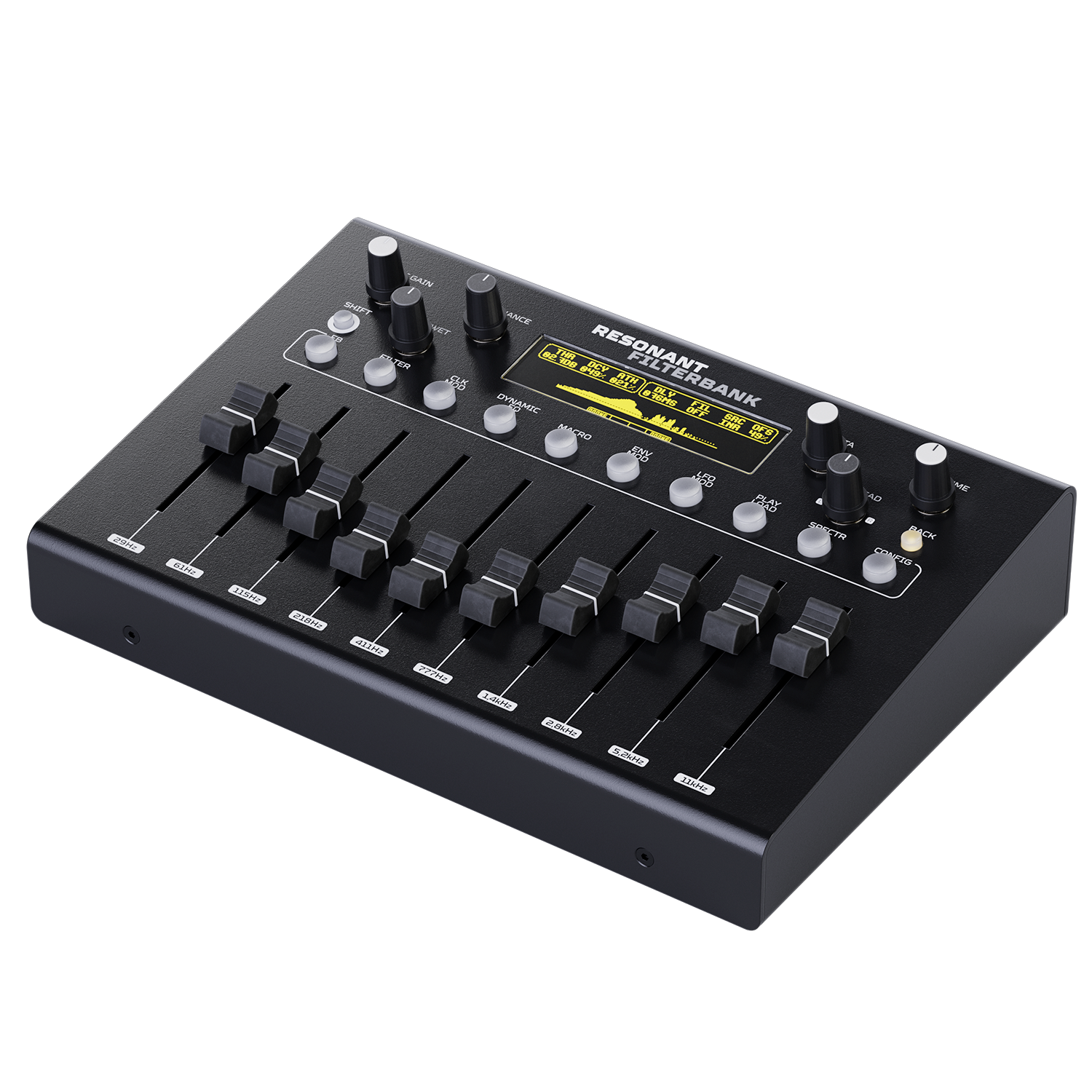

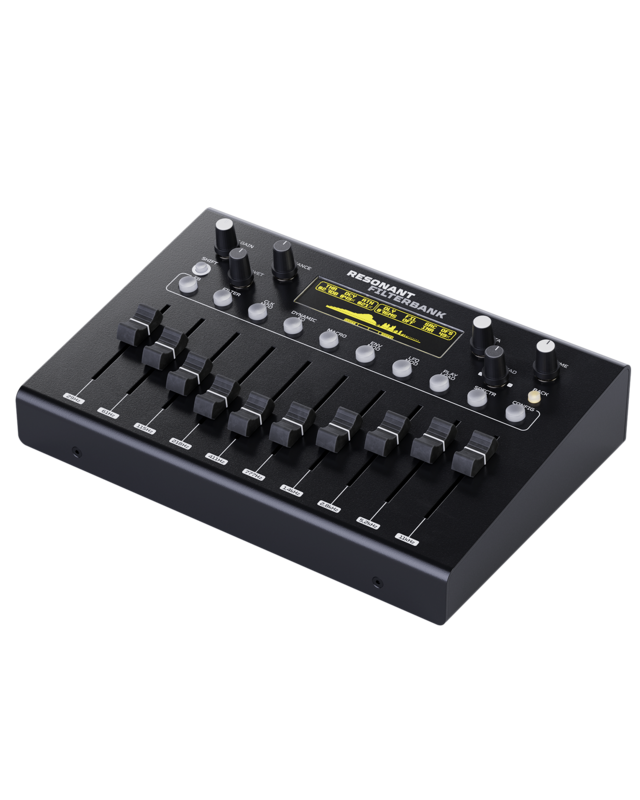

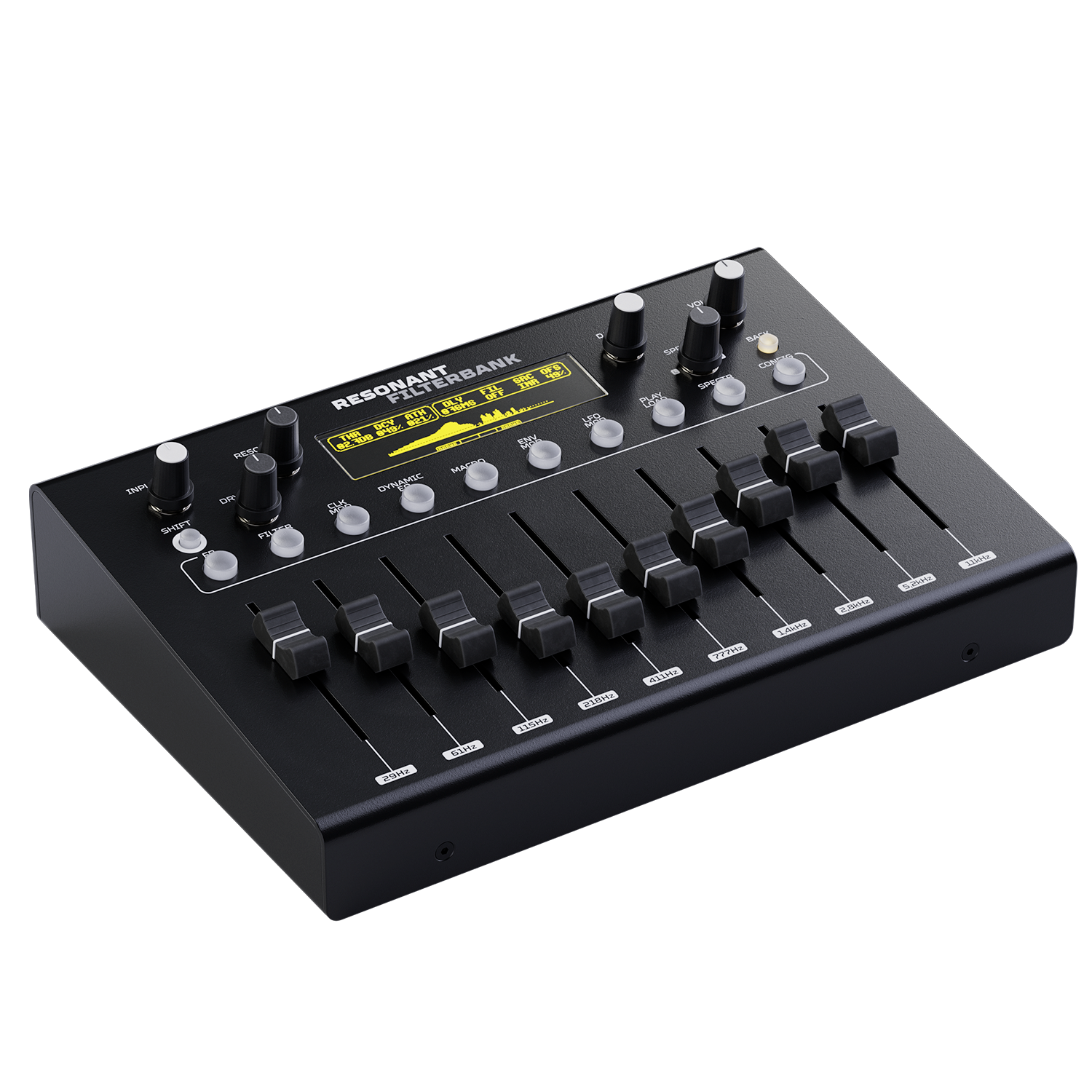

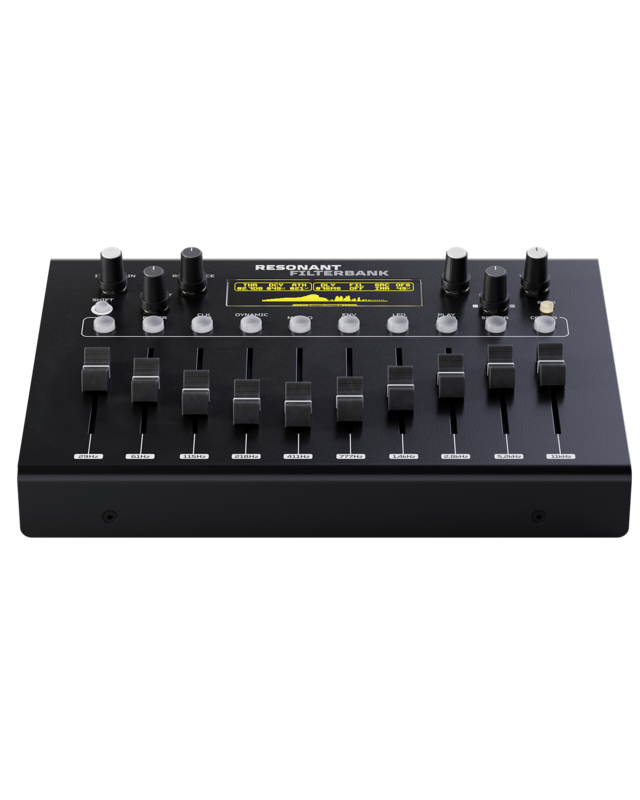

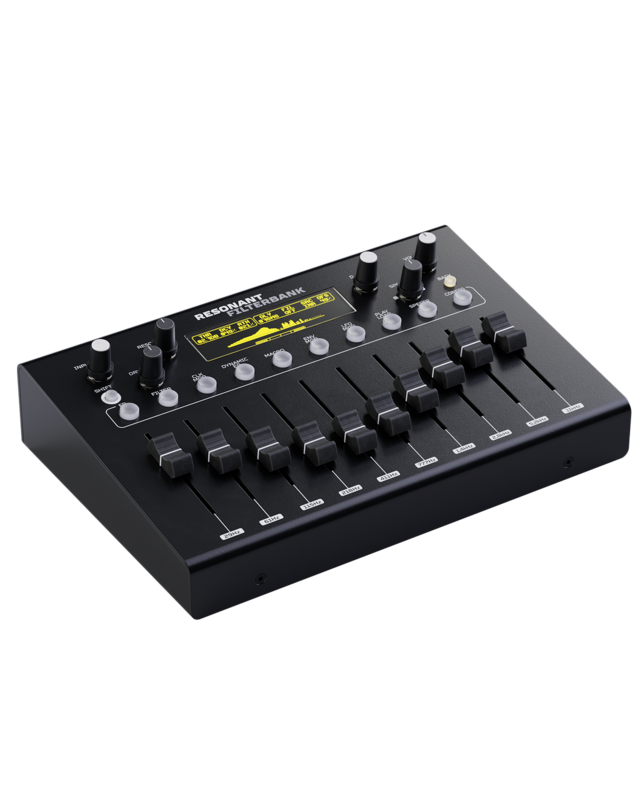

    DescriptionResonant Filterbank Desktop

    Desktop Resonant Filterbank is a performance and studio production-friendly FX unit - an analog stereo filterbank. It has a set of ten bandpass filters with hands-on control over each bands’ boost or cut and complex control configurations that can turn it into an unconventional multimode filter with an envelope follower and an instrument on its own when played with various resonance settings or even an experimental sound generator for no-input mixer-like setups.

    You can use it with synthesizers, drum machines, modular setups and thanks to an analogue GAIN STAGE that boosts incoming signals up to +24dB, with guitars and pretty much any other instrument. This is a tool that can let you discover entirely new sounds from the instruments you thought you knew inside-out.

    User snapshots (presets), MIDI control over all parameters and a sleek aluminium case to match our lineup of compact desktop units will make the Resonant Filterbank and integral part of many studio and live performance setups.

    Product Features

    • Analog 10-band stereo filterbank
    • Filter frequencies: 29 Hz, 61 Hz, 115 Hz, 218 Hz, 411 Hz, 777
    • Hz, 1.5 kHz, 2.8 kHz, 5.2 kHz, 11 kHz
    • Filter slope: 17 db/decade
    • High quality film capacitors in the bandpass filters
    • Manual and MIDI CC controlled bands’ boost and cut
    • Configurable resonance feedback loops
    • Manual and MIDI CC controlled resonance
    • MIDI clock synchronization of events
    • Multimode filter mode
    • Spectral analyzer mode
    • Dynamic spectral compressor mode
    • 20 independent LFOs
    • 20 independent envelope followers
    • User snapshot (preset) memory with 128 slots
    • Discrete and morphing snapshot change

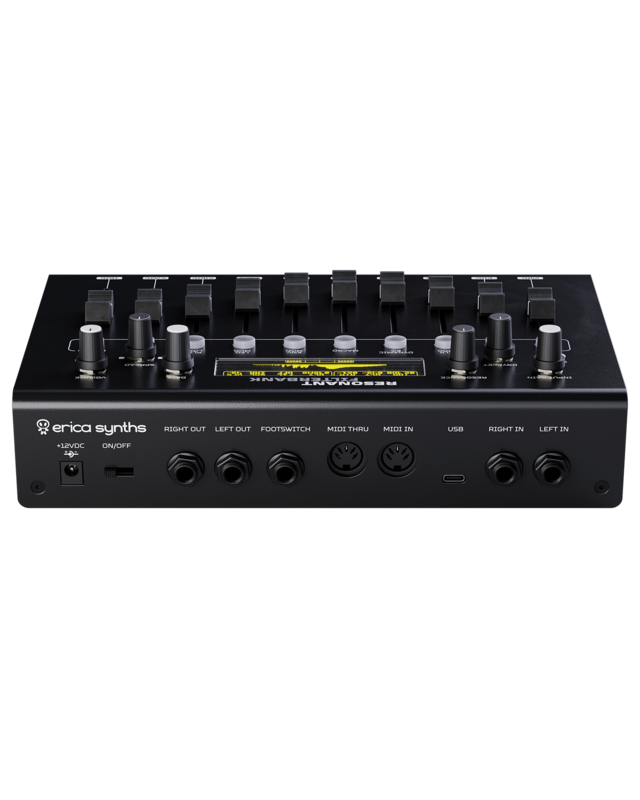

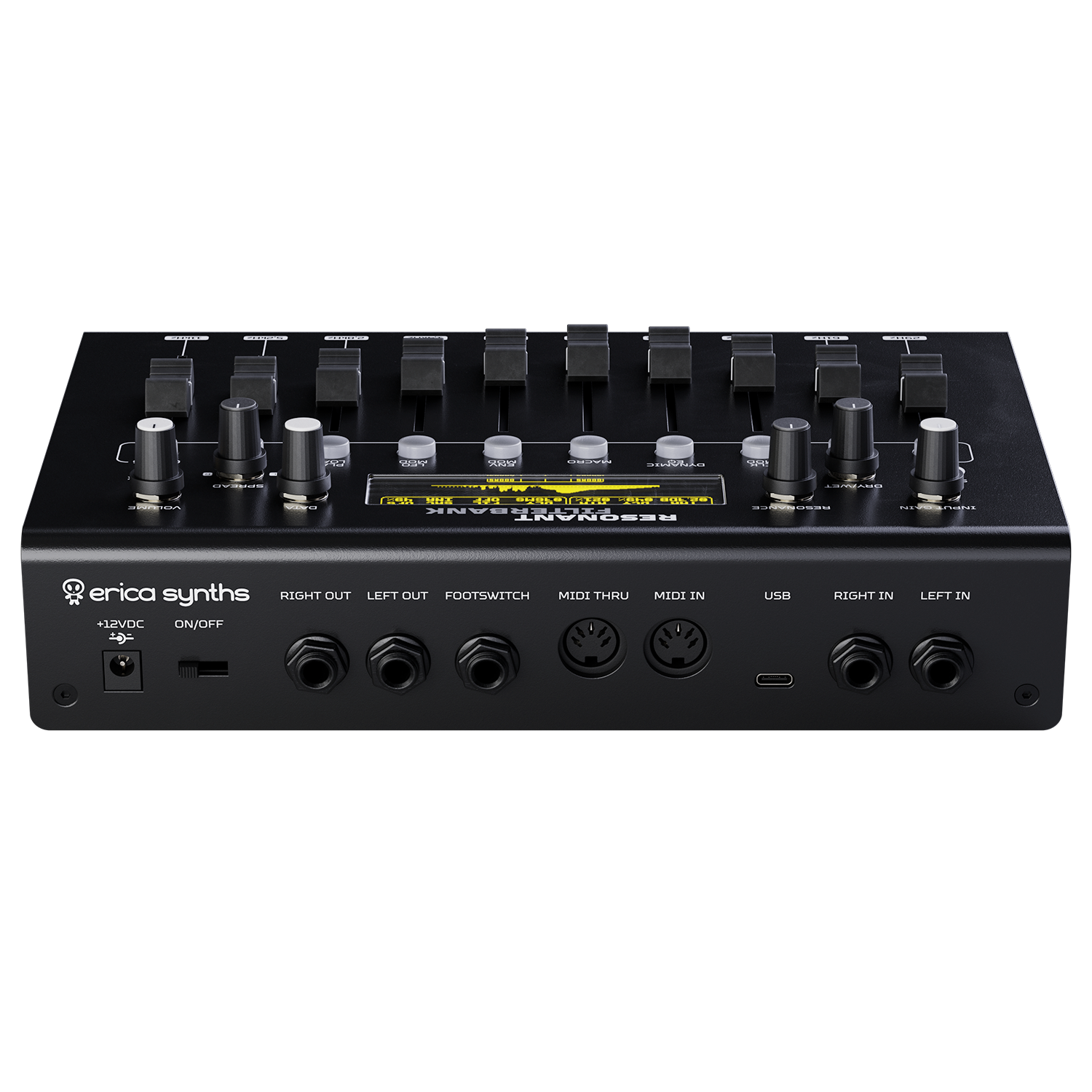

    • 6.3mm balanced stereo inputs and outputs
    • Configurable footswitch input
    • DIN 5 MIDI IN and MIDI OUT
    • Dimensions: 25,8 x 17,6 x 7 cm (including knobs)
    • Mass: 1,1 kg
