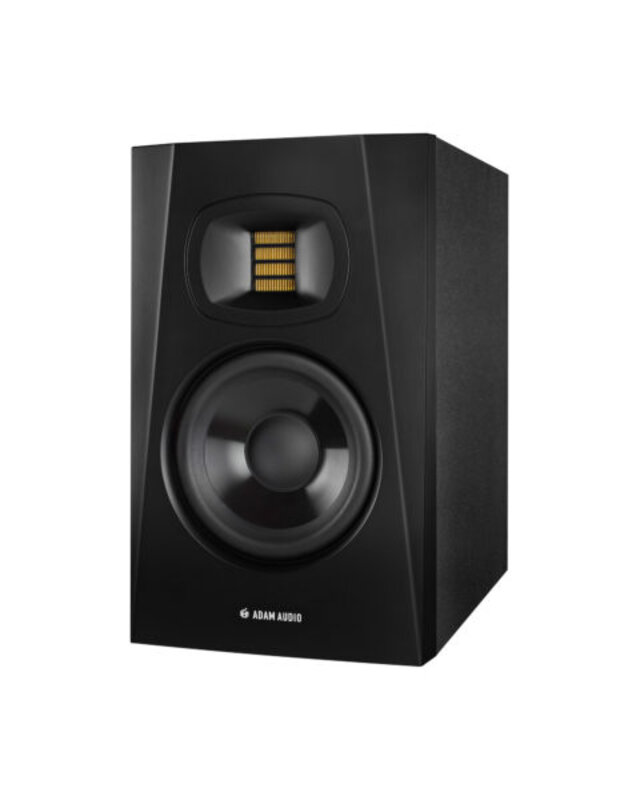

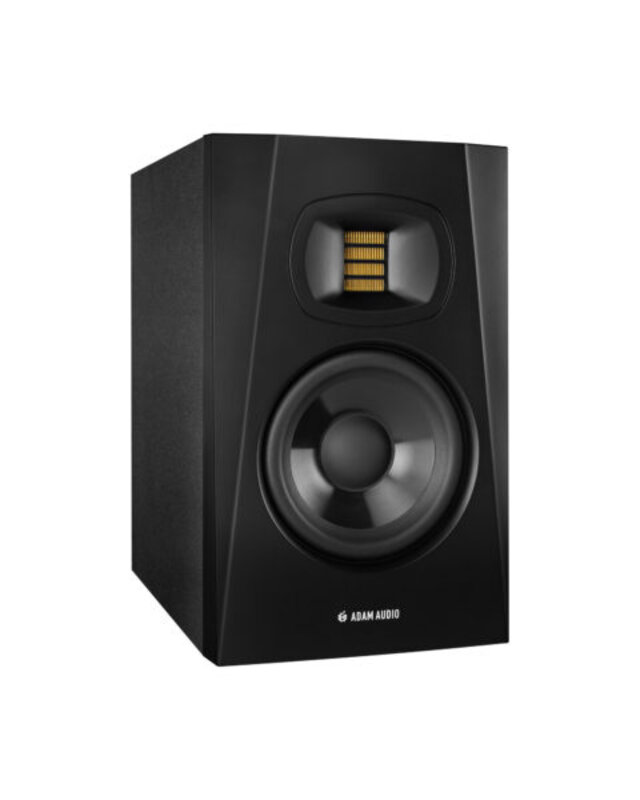

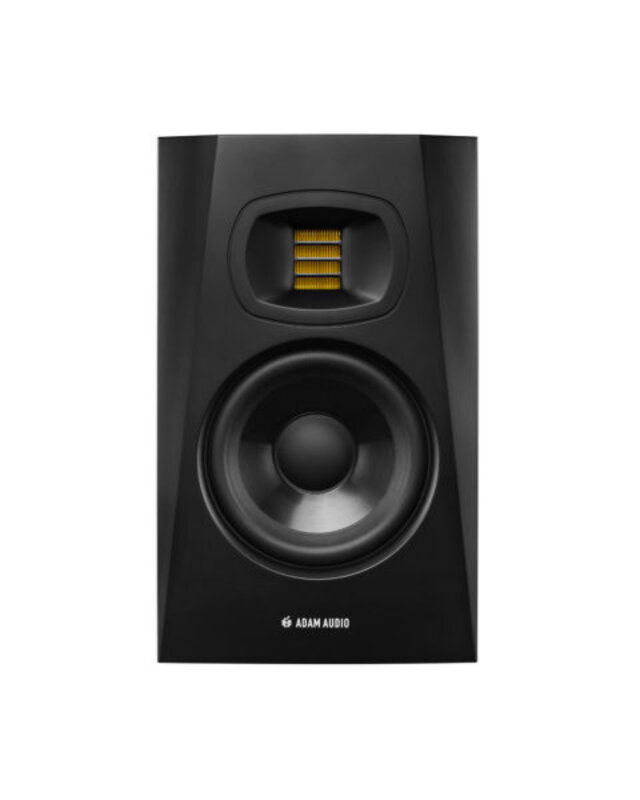

T5V
With its 5” woofer the bass-frequency response of the T5V extends to 45 Hz. The new U-ART tweeter, a breakthrough solution for use in high-resolution recording and mixing on a budget, goes up to 25 kHz and is mated to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.
TECHNICAL DATA
General Data

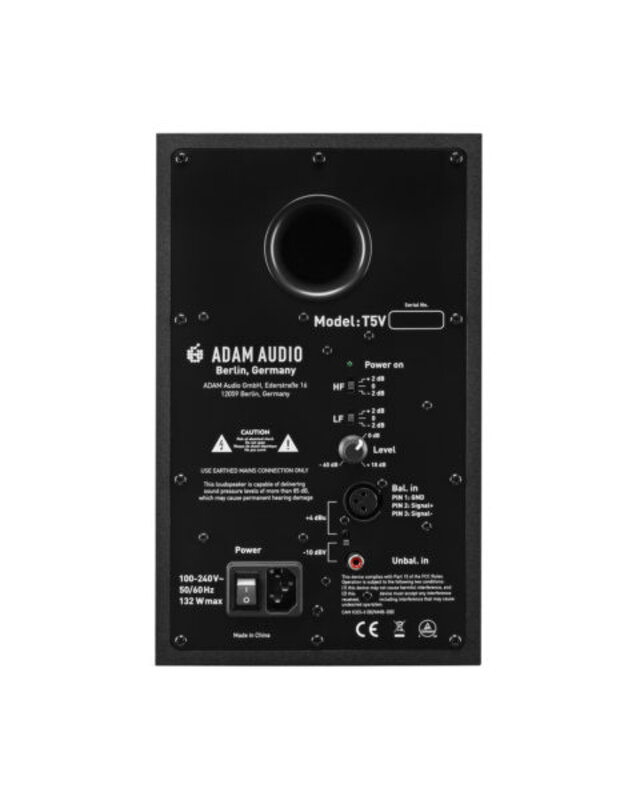

Panel: Rear
Max. Power Consumption: 132 W
Weight: 12.6 lbs (5.7 kg)
Height x Width x Depth: 11.7″ x 7″ x 11.7″ (298 mm x 179 mm x 297mm)
Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
Delivery Contents: Power cord, Quick Start Guide
Audio Input Connectors
Input Impedance: 10 kOhm / 20 kOhm
Analog: XLR / RCA
Amplification
- Woofer
- Amplifier Type: PWM
- Amp. Power RMS: 50 W
- Tweeter
- Amplifier Type: PWM
Amp. Power RMS: 20 W
Acoustics
- Frequency Response: 45 Hz – 25 kHz (-6 dB)
- THD > 80 Hz: 0.5 %
- Max. SPL per pair at 1 m: ≥106 dB
- Crossover Frequency: 3 kHz
More information you can find here: Adam Audio T5V
