EF-P2

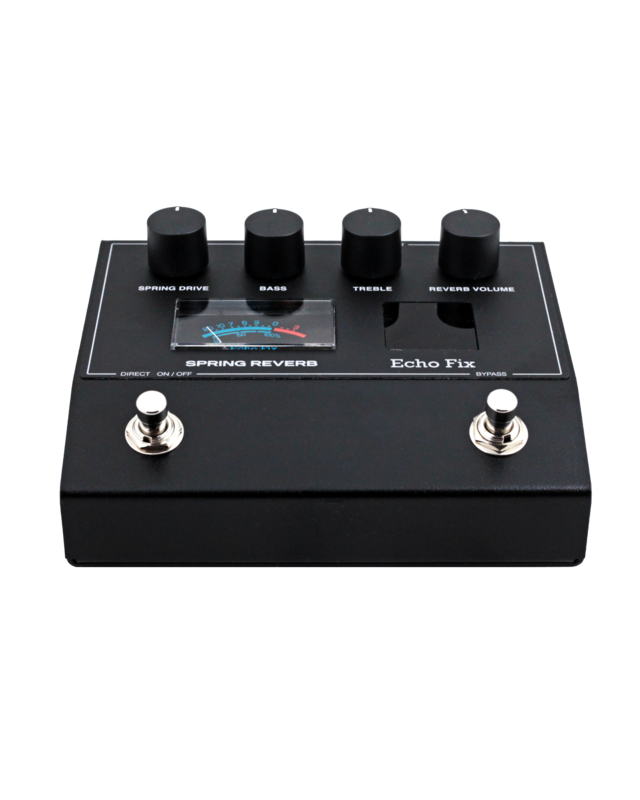

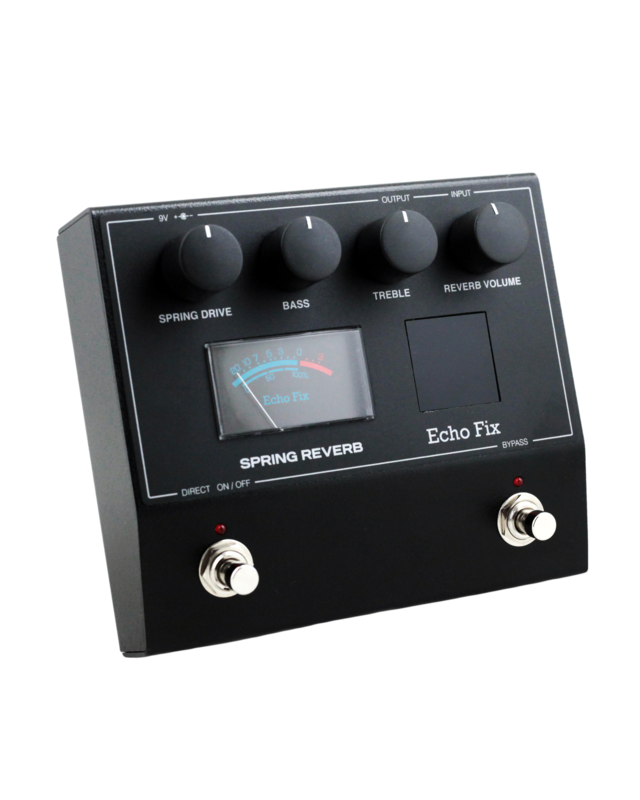

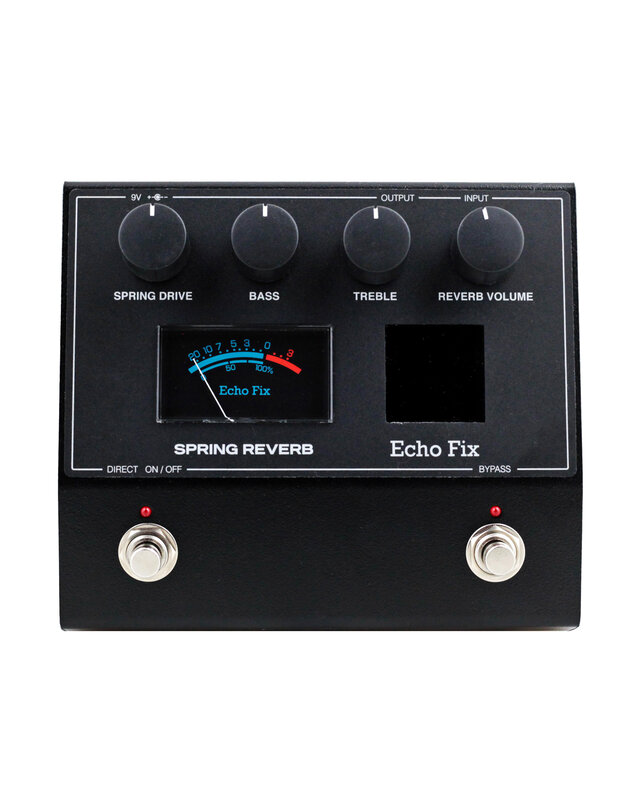

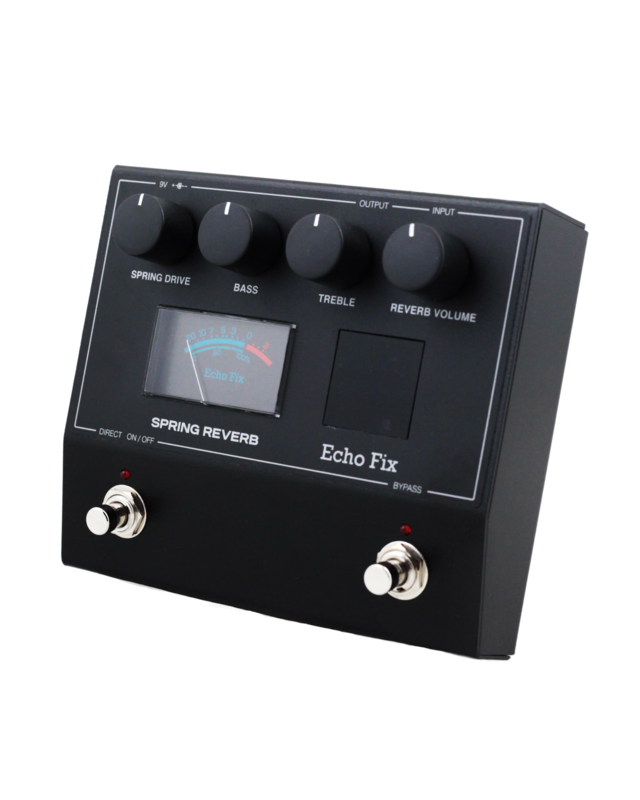

The Echo Fix EF-P2 is a real Spring Reverb pedal that packs a huge sound into a small enclosure.

Boastinga 100% analog signal path, this pedal delivers a classic, warm, ambient reverb effect, and would be a valuable addition to any effect arsenal.

The EF-P2 features a three-spring reverb tank, adjustable Spring Drive, Bass / Treble EQ controls, and Reverb Volume control.

With a footswitch for reverb bypass and also a direct signal mute footswitch, the EF-P2 can also be used as an outboard effect in recording studios.

With increased voltage rails for studio use, the EF-P2 can accept line level inputs from synths and other audio devices, not just guitar.

The Echo Fix EF-P2Spring Reverb Pedal is a must-have for any musician looking to add more depth and atmosphere to their sound.

Features:

- Real spring reverb pan

- Spring drive control

- Spring drive control

- Treble control

- Reverb Level Control

- Soft momentary switching for noiseless
Bypass and Direct Mute switching

- Increased internal power supply voltage
rails for increased dynamic range

- Illuminated reverb tank viewing window

Power - 9VDC Centre Negative
Current - 200mA minimum
Input Impedance - 1MΩ
Output Impedance - 1KΩ
Dimensions - 160mm x 130mm x 60mm (6.29" x 5.11" x 2.36")
