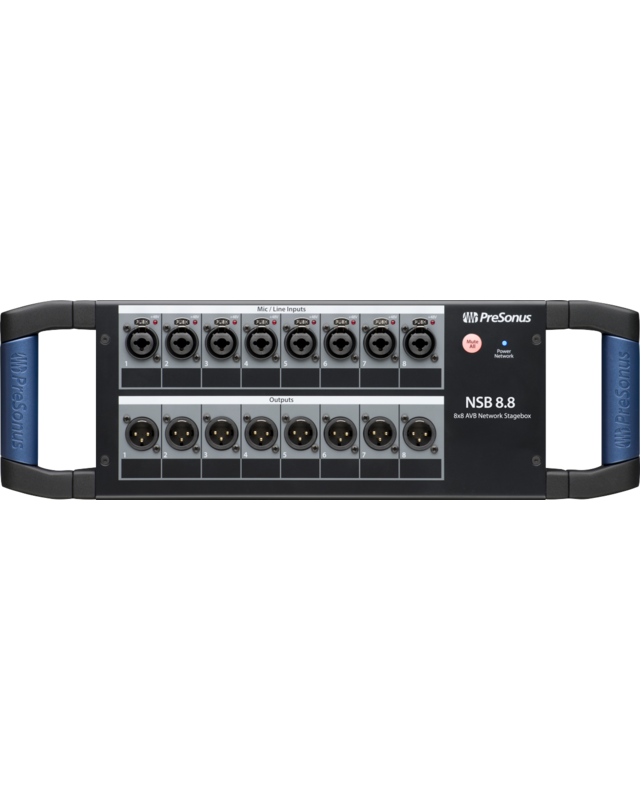

NSB 8.8 Networked Stage Box
DESCRIPTION

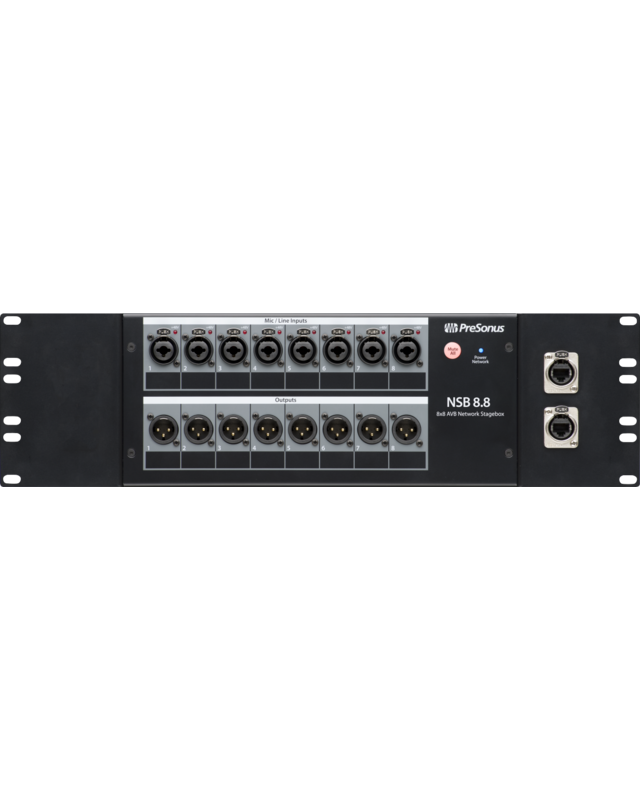

Designed to work seamlessly with PreSonus® StudioLive® Series III mixers, the PreSonus NSB 8.8 stage box offers 8 locking combo mic/line inputs with remote-controlled XMAX preamps that include gain compensation for shared input scenarios. All inputs can be controlled from a StudioLive Series III console and from free PreSonus UC Surface software. All eight outputs employ locking XLR jacks. A built in 2-port AVB switch lets you daisy-chain multiple units. A rugged steel chassis with sturdy handles and a stage box form factor allow the NSB 8.8 to sit well on the stage and survive the rigors of the road. The unit can be rack mounted with an optional rack-ear kit.
FEATURES
- Rugged stage box enclosure with handles
- 8 locking, mic/line inputs and 8 locking XLR outputs
- 8 remote-controllable XMAX preamps
- Gain compensation for shared inputs

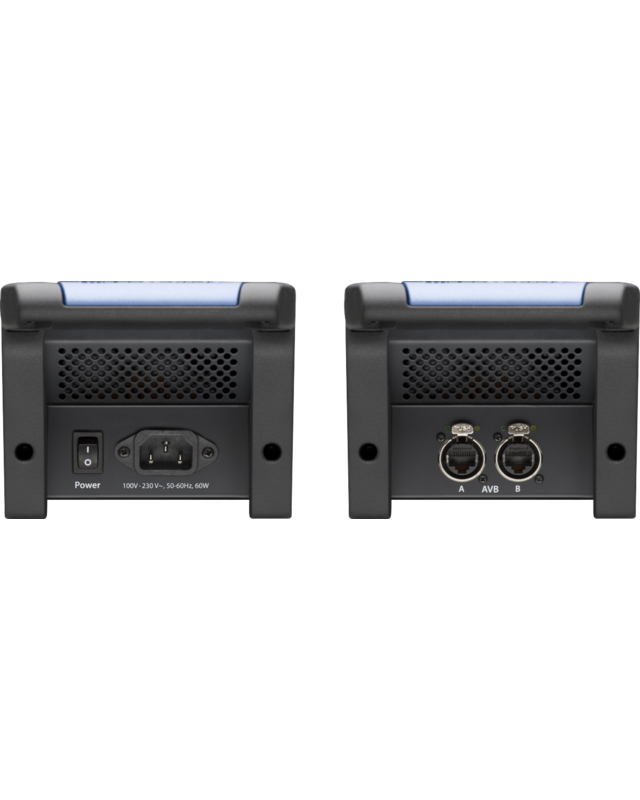

- 2 AVB ports with locking XLR Ethernet jacks
- 16x8 AVB (8 direct input channels + 8 gain compensated input channels)
- Easy setup and control from Series III mixers and free PreSonus UC Surface software
Inputs
1/4" TRS, Balanced20-20 kHz (±0.5 dBu at Unity Gain)10 kΩ+18 dBu94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)<0.005%, +4 dBu, 20-20 kHz, Unity Gain, UnweightedXLR Female, Balanced65 dB (1 kHz at Unity Gain)20-20 kHz (±0.5 dBu at Unity Gain)0 dB to +60 dB (±1 dB)1 kΩ+12 dBu (Unity Gain)94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)<0.005%, +4 dBu, 20-20 kHz, Unity Gain, UnweightedPerformance
115 dB (A-Weighted, 48 kHz)
