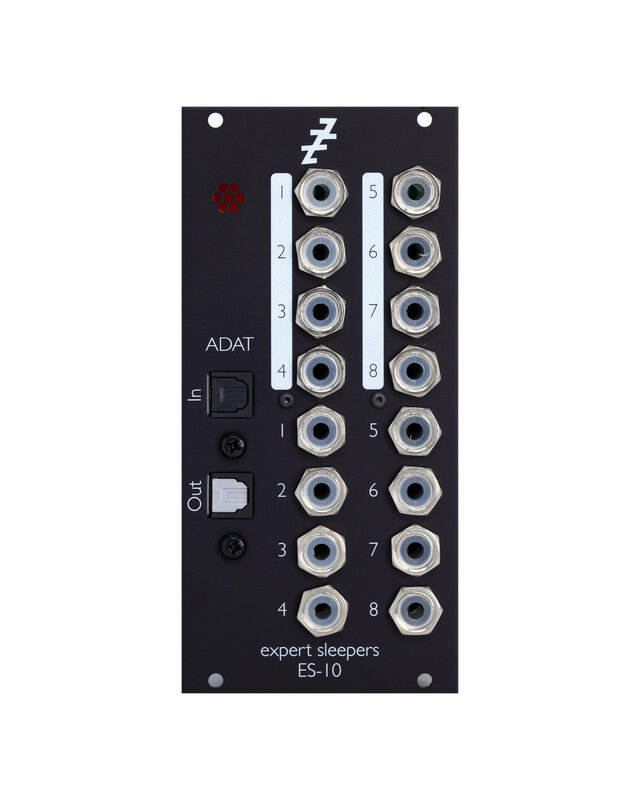

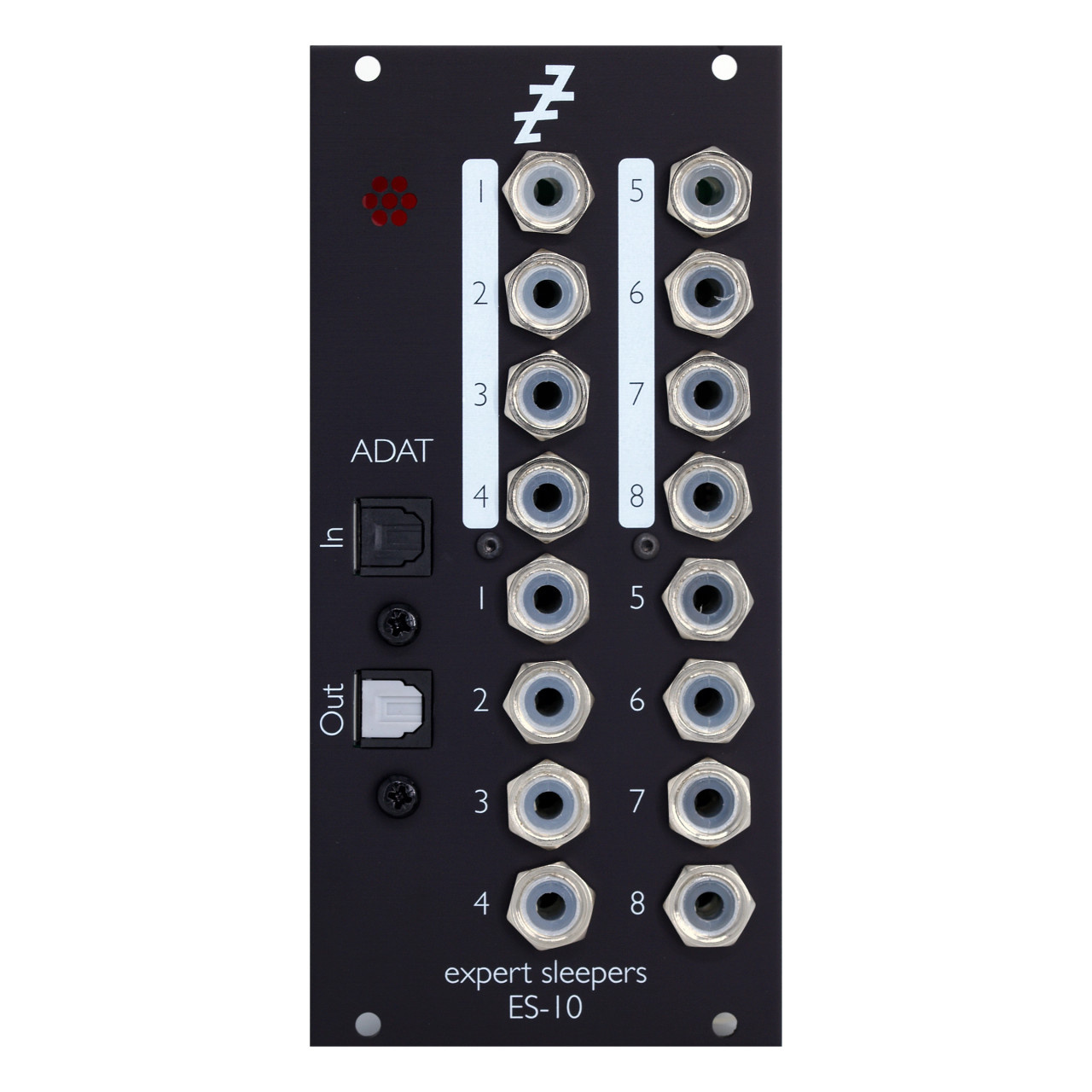

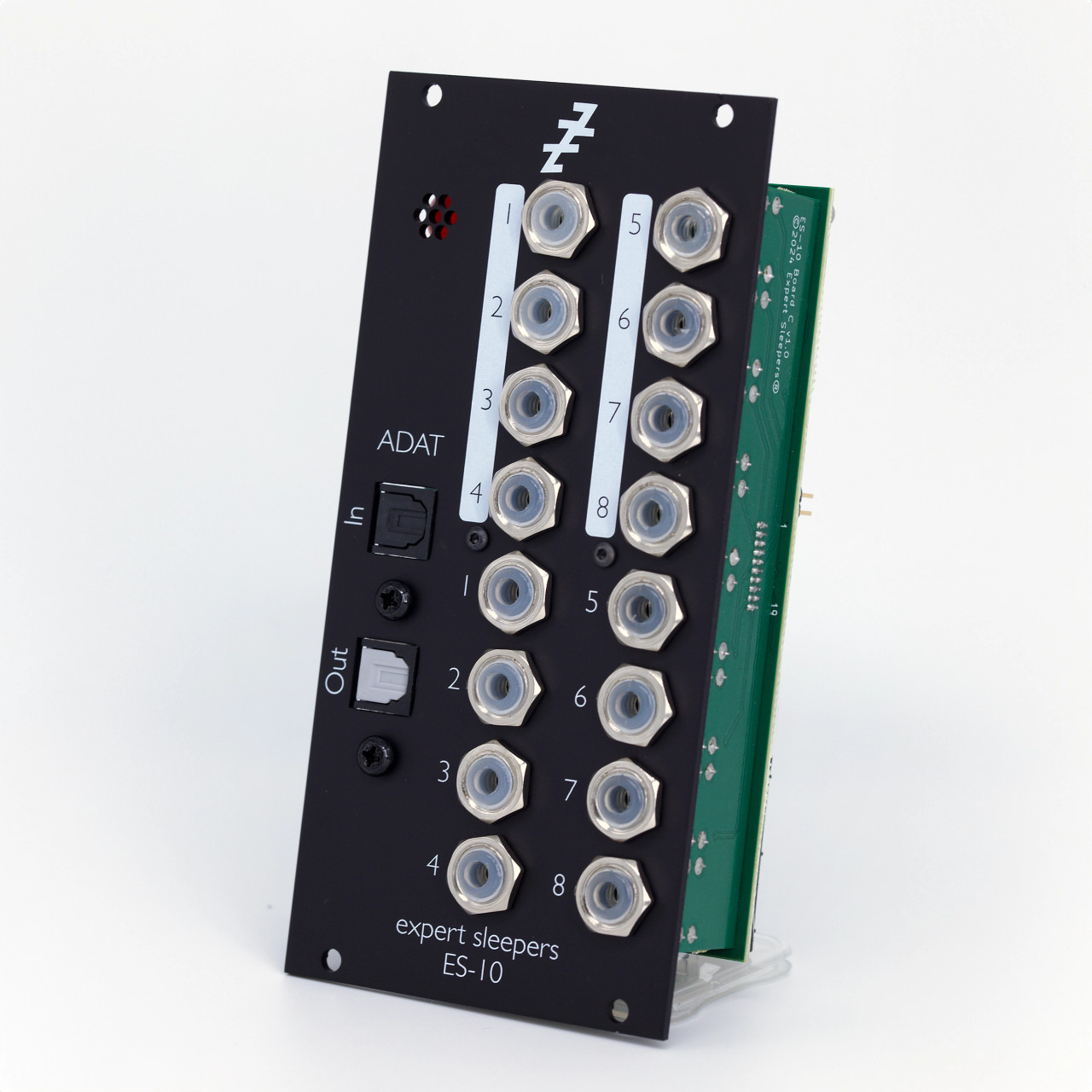

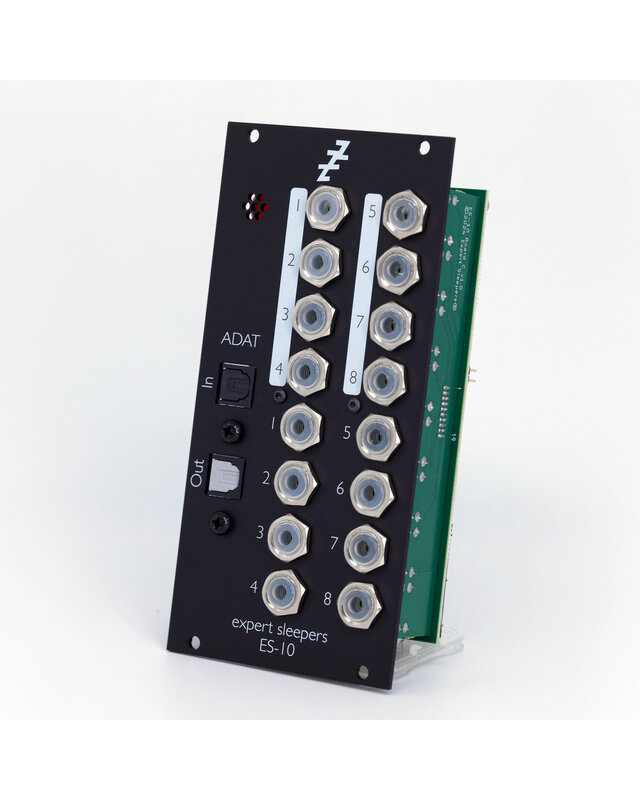

ES-10 Eurorack ADAT Lightpipe/CV Interface

Expert Sleepers ES-10: Sample-Accurate Hybrid Integration

The ES-10 is a high-density ADAT interface that brings professional-grade I/O to your Eurorack system. By utilizing the ubiquitous ADAT protocol, it provides eight inputs and eight outputs that are all fully DC-coupled. This allows for the simultaneous transfer of high-fidelity audio and jitter-free control voltages between your hardware and your DAW. Whether you are using it to process software plugins through analog filters or to record multi-track modular jams with perfect phase alignment, the ES-10 is an essential tool for the modern hybrid musician.

Key Features:

• Bi-Directional ADAT Interface: 8 channels in and 8 channels out in a single 12HP module.

• DC-Coupled Architecture: Effortlessly handle everything from sub-audio LFOs to high-frequency audio.

• Plug-and-Play Integration: Works with any audio interface equipped with ADAT TOSlink ports.

• Low Latency Performance: Essential for real-time interaction between software sequencers and modular hardware.

• Expandable Design: Includes headers for connecting further I/O expanders like the ES-5 or ES-6.

Technical Specifications:

• Width: 12HP.

• Depth: 50mm.

• Digital I/O: 1x ADAT In, 1x ADAT Out (TOSlink).

• Analog I/O: 8x 3.5mm Inputs, 8x 3.5mm Outputs.

• Current Draw: +145mA (+12V), -40mA (-12V).
