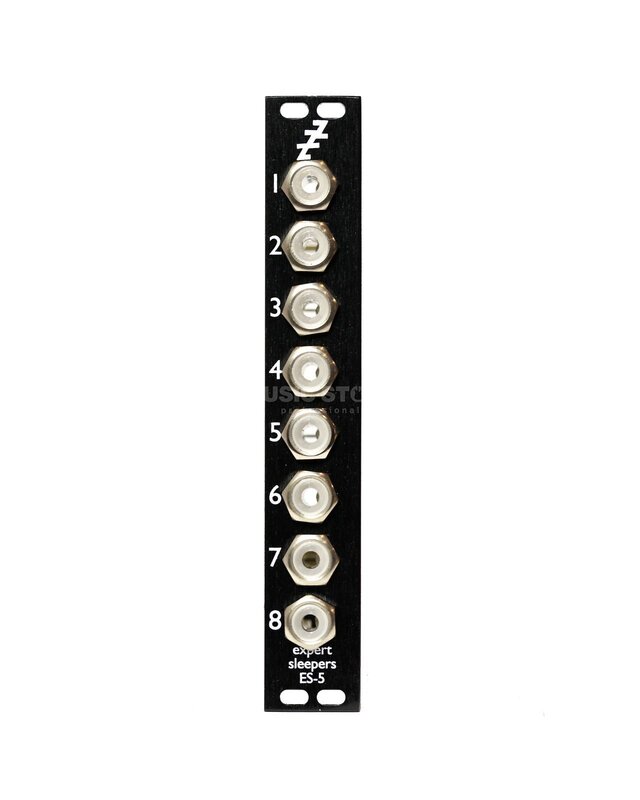

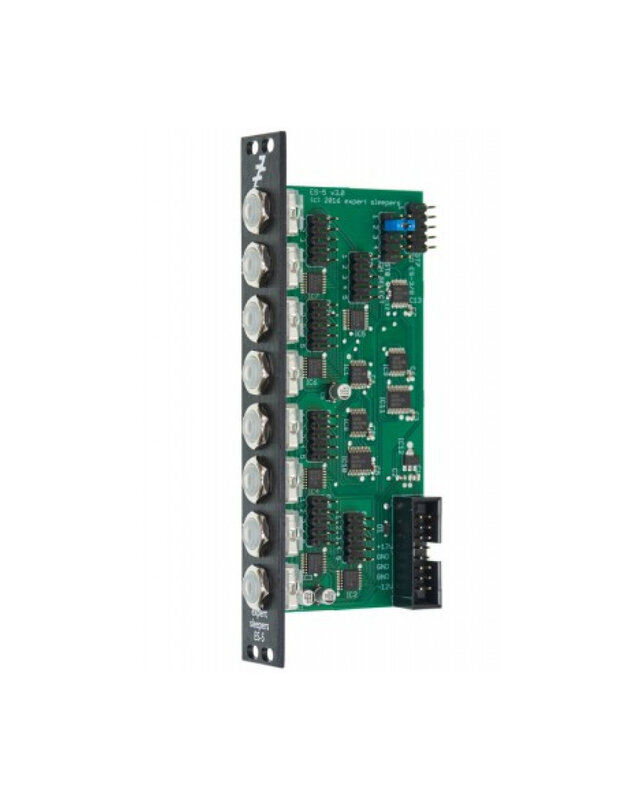

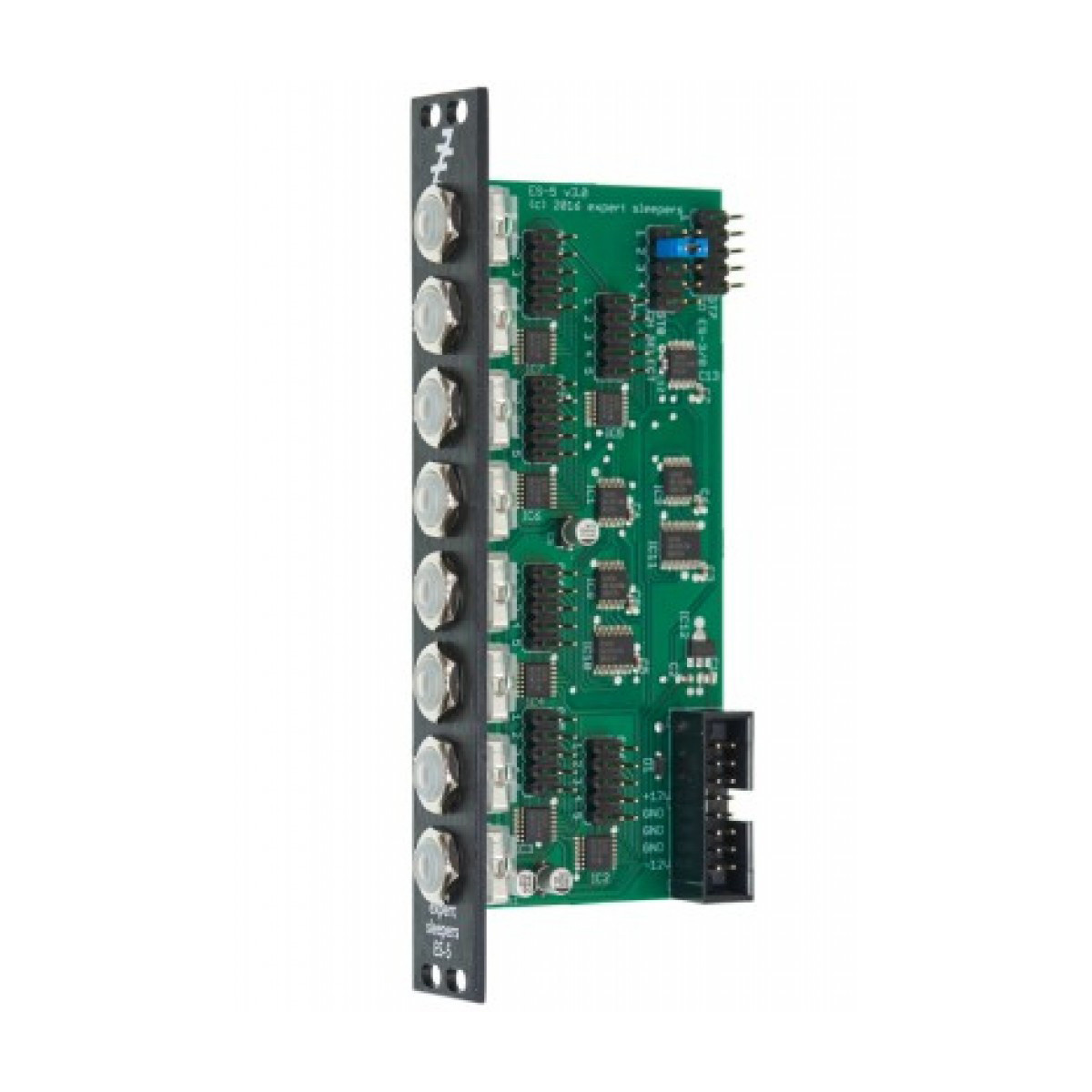

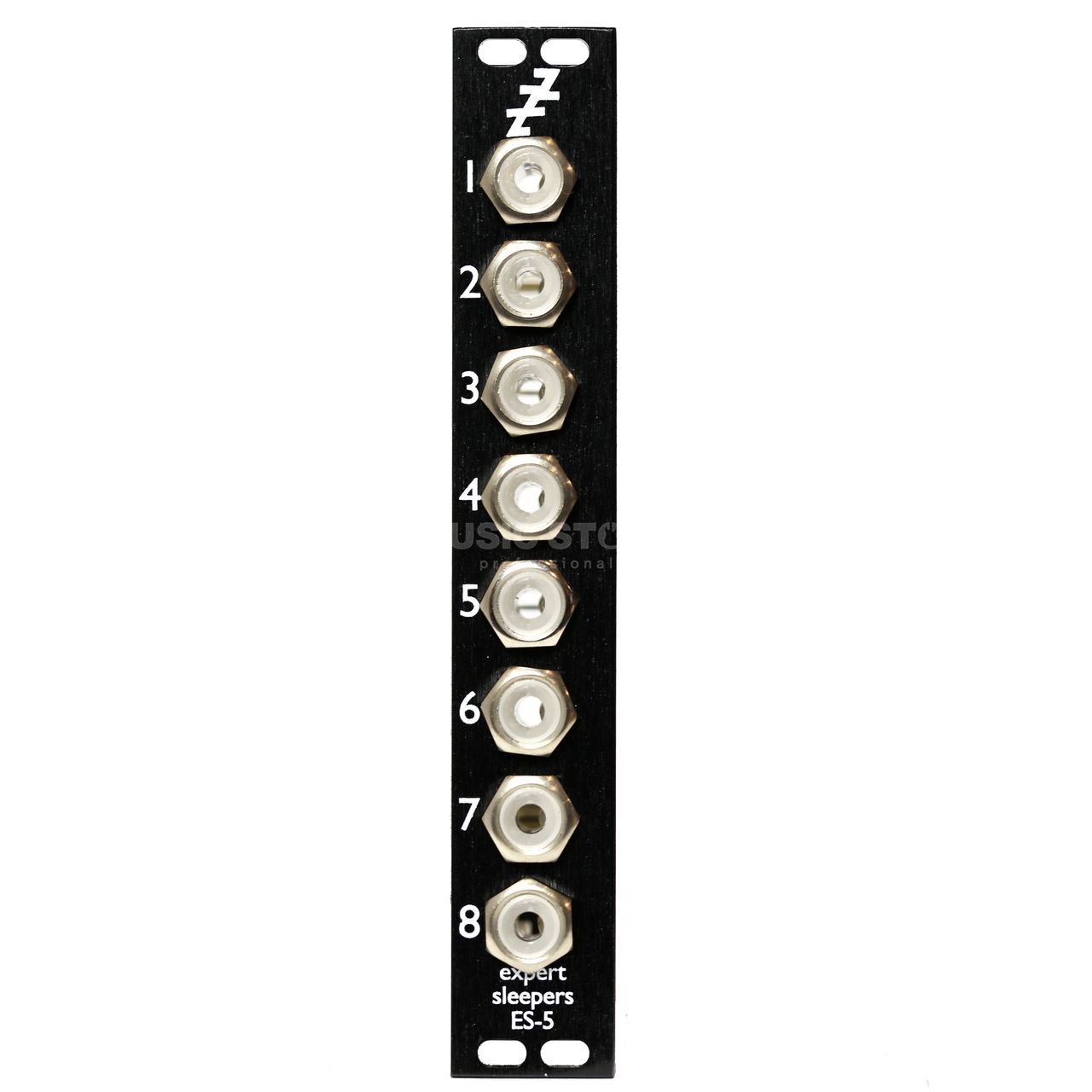

ES-5 Eurorack ADAT Lightpipe/Gate Interface (MK4)

Expert Sleepers ES-5 MK4: The Ultimate Gate and Expansion Hub

The Expert Sleepers ES-5 MK4 is a specialized expansion module designed to connect to the expansion header of an ES-3 or ES-8 interface.This module provides eight direct gate outputs for triggers, clock signals, and simple on/off functions directly from your DAW. However, the true power of the ES-5 MK4 lies in its role as a hub; you can connect up to six additional expanders to provide your system with a massive amount of I/O without consuming any extra ADAT channels. The MK4 revision features improved stability and optimized power efficiency for modern modular racks.

Key Features:

• Eight Direct Gate Outputs: Sample-accurate 3.5mm jacks for perfect rhythmic synchronization.

• Master Expander Hub: Features headers to connect up to six further Expert Sleepers modules (such as the ESX-8GT).



• Illuminated Sockets: Built-in LEDs provide immediate visual feedback on gate activity and signal status.

• Streamlined Connectivity: Operates seamlessly via the host module's digital stream for a plug-and-play experience.

• Hybrid Integration: The professional choice for complex sequencing and MIDI-over-CV tasks using Silent Way software.

Technical Specifications:

• Width: 4HP

• Depth: 49mm

• Power Draw: +12V: 8mA, -12V: 0mA

• Input: 10-pin header for connection to ES-3 or ES-8

• Outputs: 8x 3.5mm Gate/Trigger Outs
