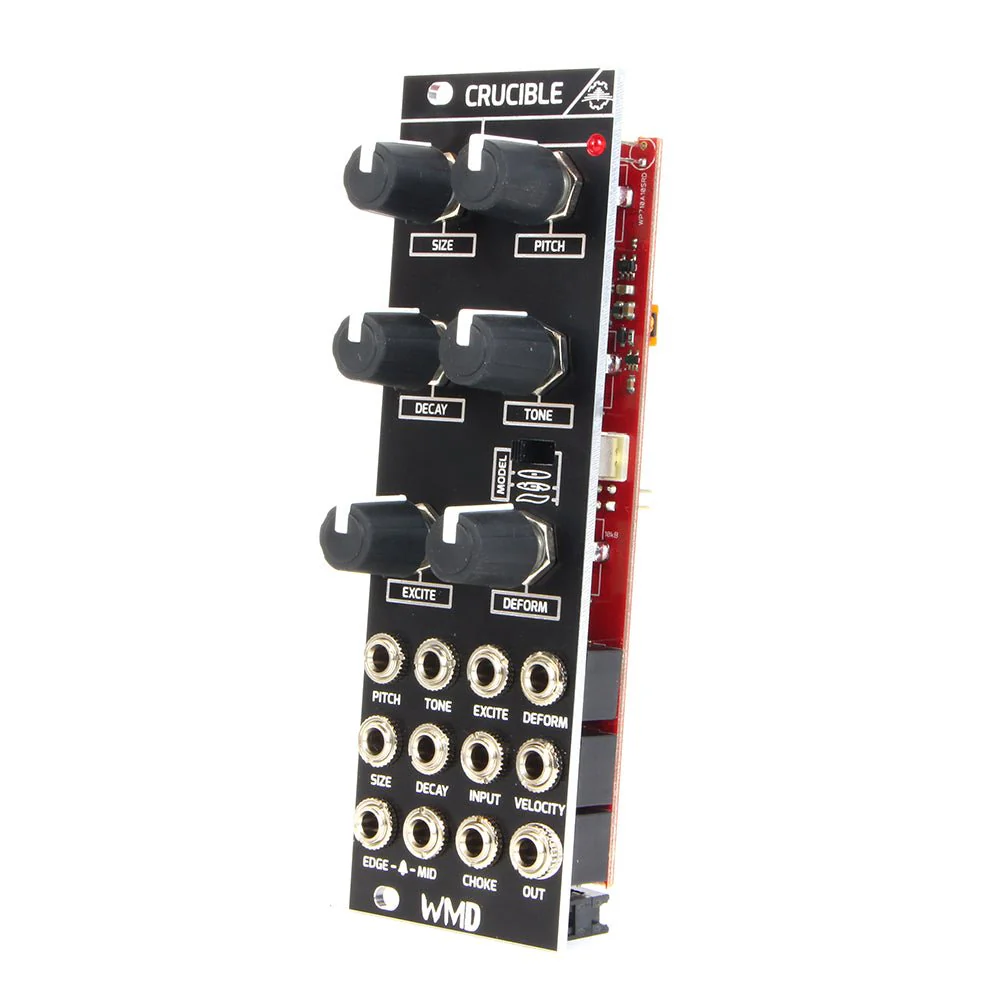

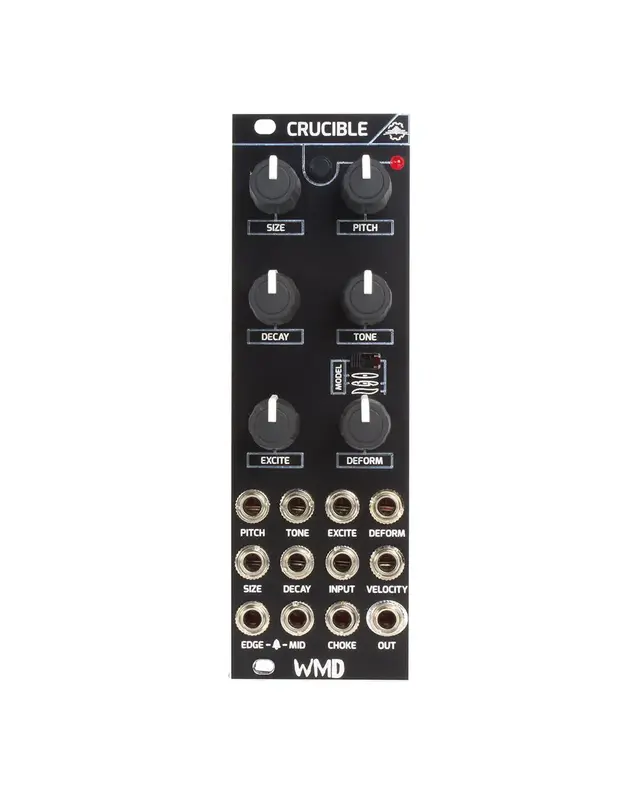

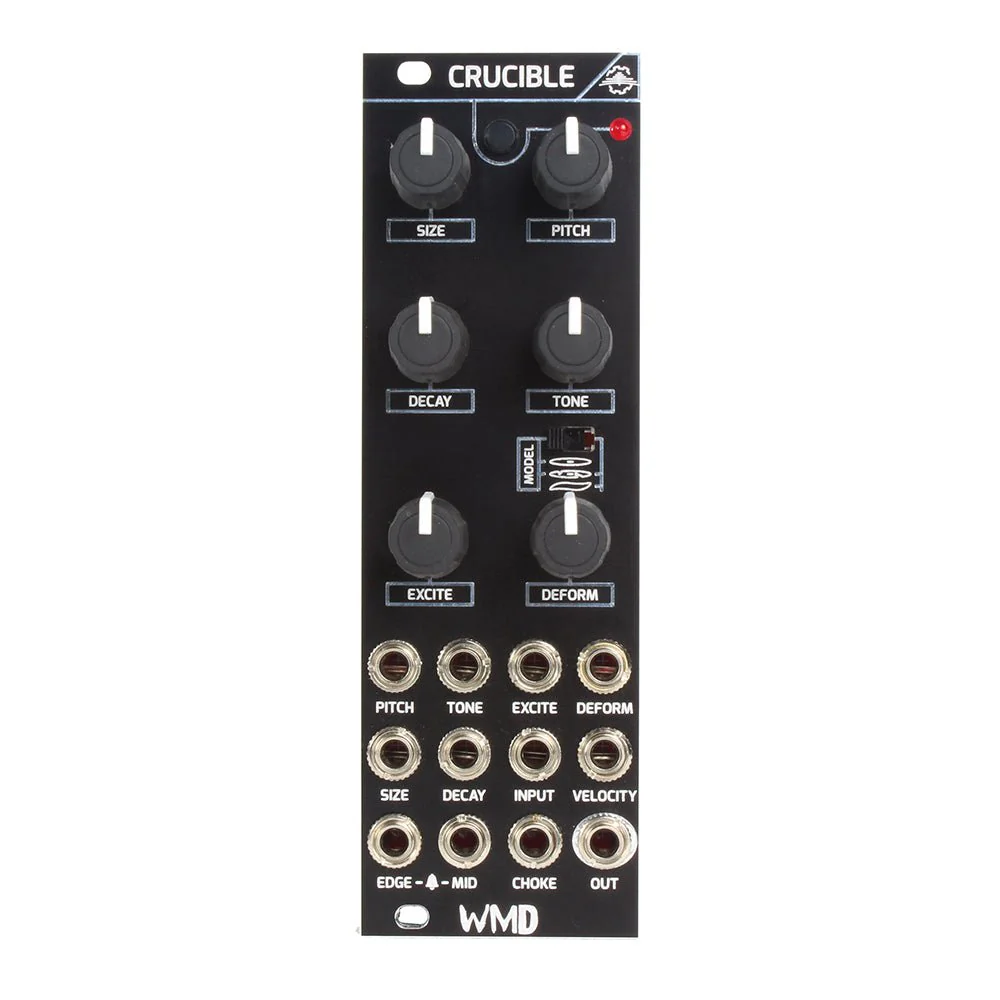

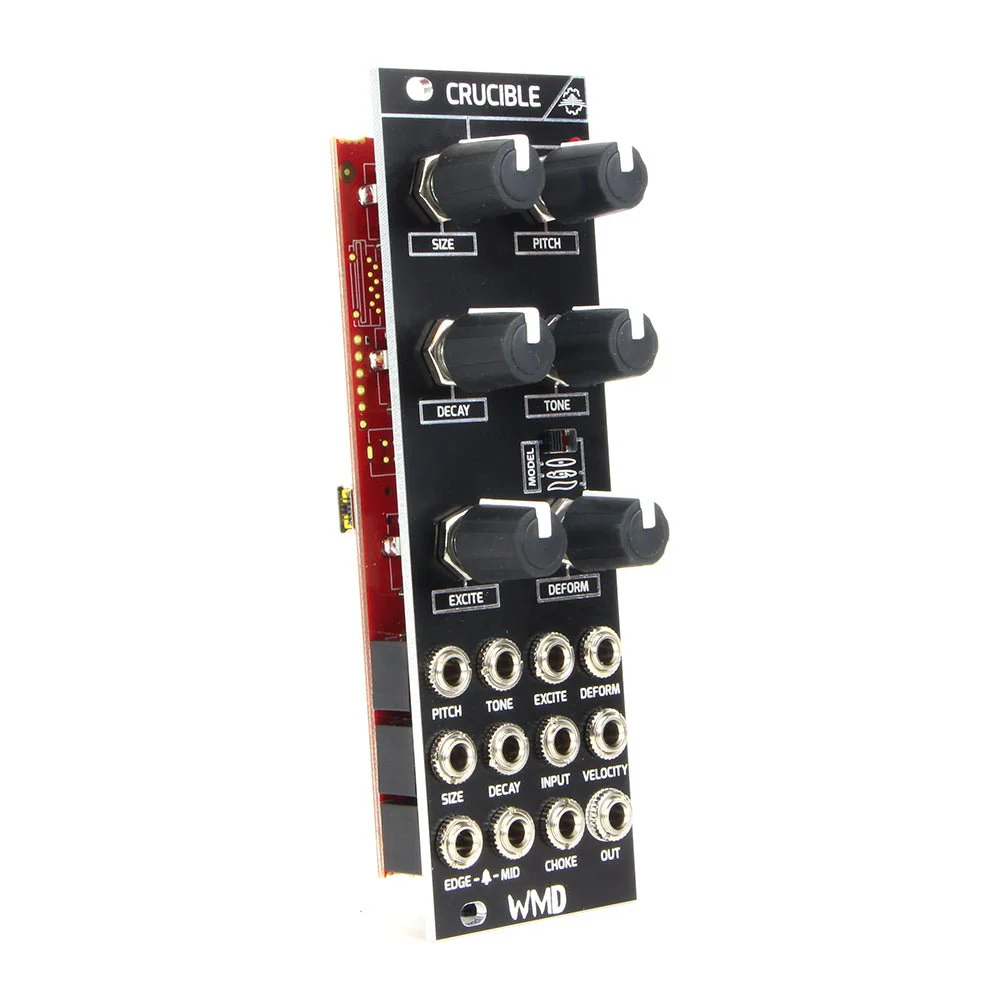

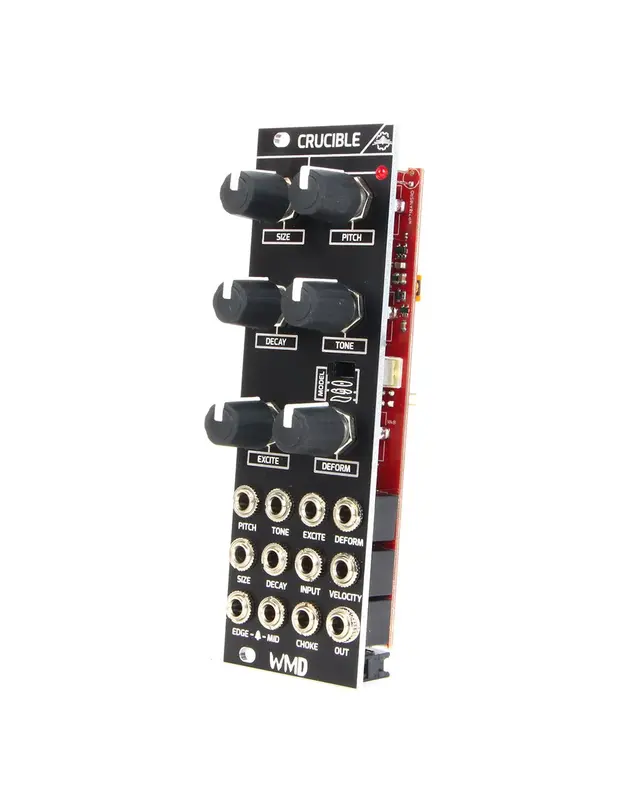

CRUCIBLE Curved Plate + Cymbal Synth

WMD CRUCIBLE: The Evolution of Cymbal Synthesis

The WMD CRUCIBLE is a dedicated synthesizer module that uses physical modeling to reproduce the sound of curved metallic plates and cymbals. Unlike traditional analog circuits that can often sound static, the CRUCIBLE simulates the complex vibrations and resonances of a real cymbal. With adjustable parameters for hit position (edge to bell) and material stiffness, this module provides unprecedented realism and dynamic expression within a modular environment.

Key Features:

• Physical Modeling Engine: Sophisticated algorithms designed for realistic cymbal textures and behaviors.

• Hit Position Control: Adjust where the virtual cymbal is struck for tonal variety from the outer edge to the bell.

• De-clutch Feature: Simulate hi-hat opening/closing or cymbal choking for expressive performances.

• Multiple Models: Includes various synthesis models for rides, crashes, and experimental metallic tones.

• Comprehensive CV: Full control over pitch, decay, and timbre via external CV modulation.



Technical Specifications:

• Width: 8HP

• Depth: 30mm

• Power Draw: +12V: 110mA, -12V: 15mA

• Inputs: Trigger, Accent, Choke, and CV for Pitch and Timbre

• Outputs: Mono Audio Out
