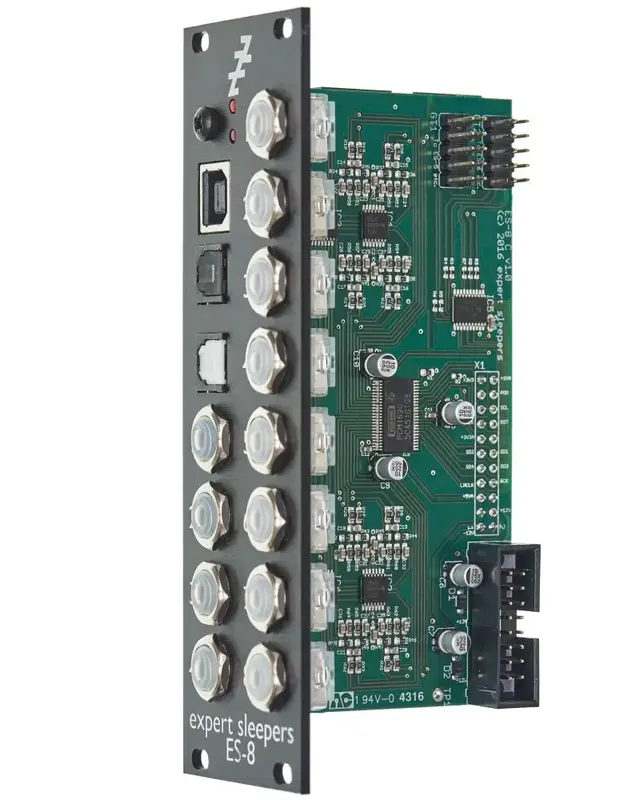

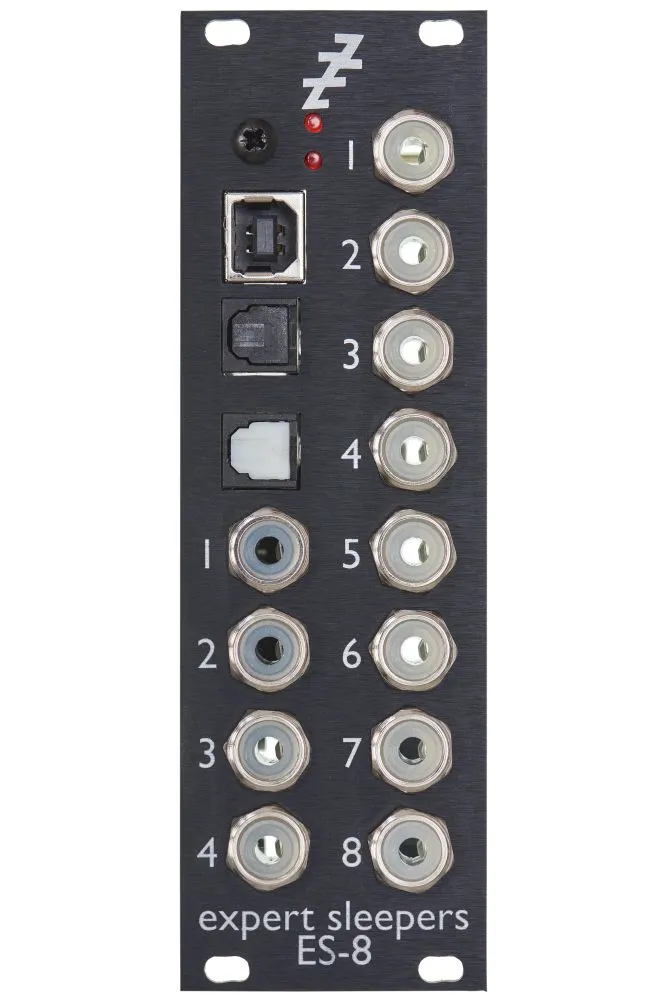

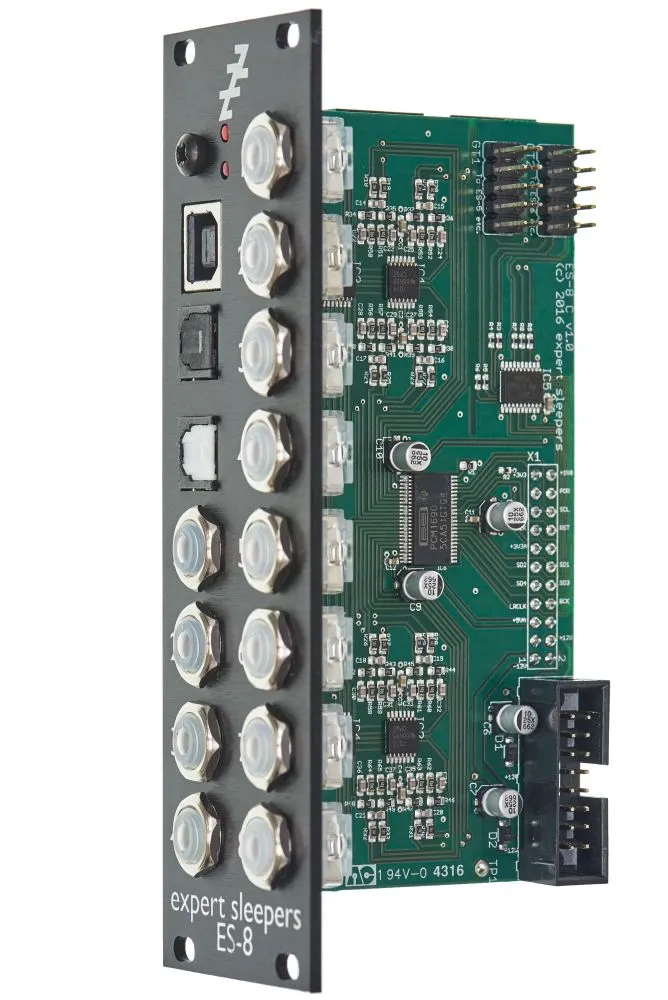

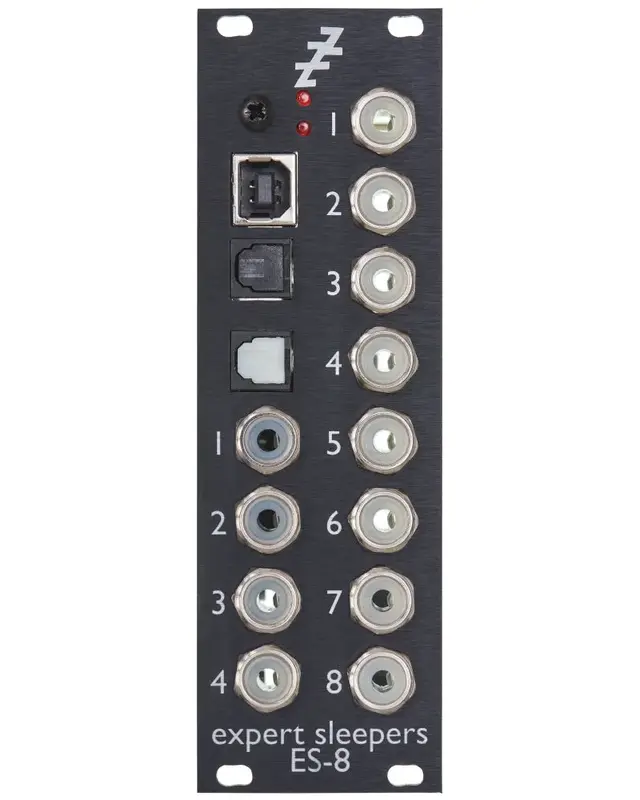

ES-8 Eurorack USB Audio Interface Module

Expert Sleepers ES-8: The Ultimate USB Bridge to Eurorack

The Expert Sleepers ES-8 is a high-performance USB 2.0 audio interface in a compact Eurorack format.With a total of twelve inputs and sixteen outputs (including ADAT connectivity), this module provides a comprehensive solution for hybrid modular setups. All analog inputs and outputs are DC-coupled, meaning they can handle both high-fidelity audio and precision control voltages (CV). Whether you are utilizing Ableton CV Tools, Bitwig Studio, or Expert Sleepers' own Silent Way software, the ES-8 ensures an ultra-stable, low-latency link between your DAW and your modular hardware.

Key Features:

• USB Audio Interface: Connect directly to Mac, PC, or iOS devices without the need for a separate desktop interface.

• DC-Coupled I/O: Engineered to send and receive accurate CV, gate, and audio signals without voltage drop.

• ADAT Expandability: Easily scale your system by adding more channels via the optical TOSLINK ports.

• Standalone Operation: Can function as a dedicated ADAT-to-analog converter when not connected to a computer.

• Pro-Grade Audio: Supports sample rates up to 96kHz for pristine recording and playback.





Technical Specifications:

• Width: 8HP

• Depth: 50mm

• Power Draw: +12V: 198mA, -12V: 52mA

• Analog I/O: 4 inputs, 8 outputs (3.5mm jacks)

• Digital I/O: 1x ADAT In, 1x ADAT Out, 1x USB 2.0 (Type B)
