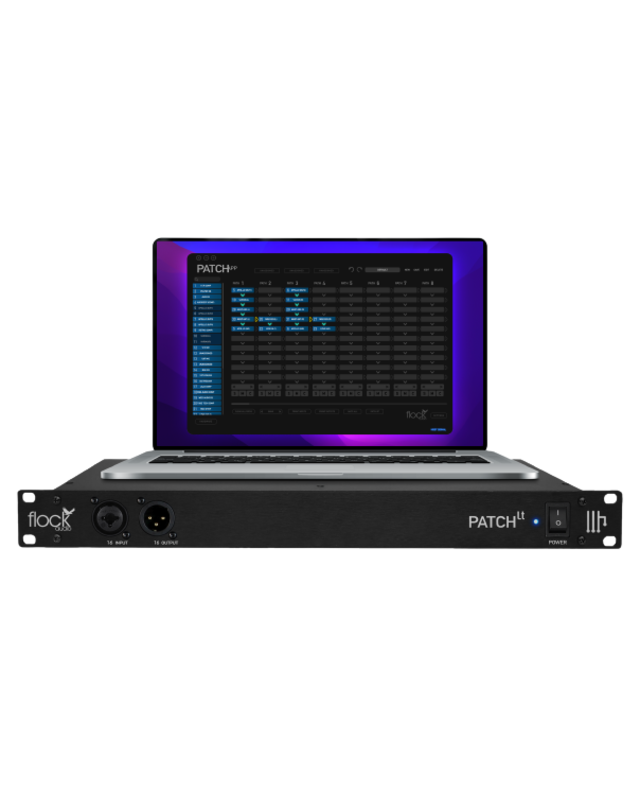

Patch LT

- Simple. Sleek. Spectacular.

- Resolution/ AWARDS 2021 - WINNER!

- Everything you love about PATCH... Just more Compact!

- Just enough I/O to create a masterpiece...

- Available IO located right on the front panel for quick hardware, instruments or microphone integration into your routing system.

Out of sight, out of mind.

The same reliable connections as PATCH, designed into PATCH LT.
Power Supply & USB Cables Included

SPECIFICATIONS:

• No AD/DA Conversion, 100% Transparent Analog Signal Path
• Patented Flock Audio Matrix Technology (Same as PATCH)
• Multiple Unit Expansion with any PATCH Model (PATCH, LT & XT)

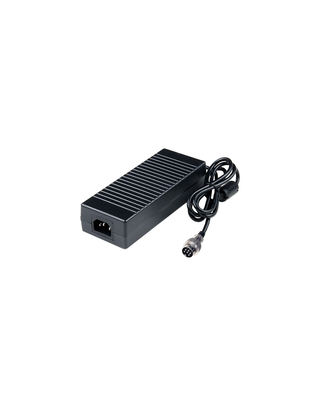

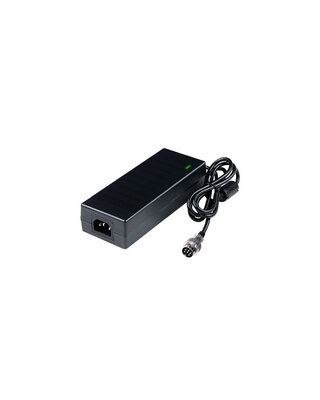

• External 5Pin 24VDC Power Supply w/ IEC Cable Included
• 10 Ft. - USB 2.0 (USB-A to USB-B) - Cable Included
• Unit Dimensions: 1U - 1.75”(H) x 19” (L) x 8” (D) - 15 lbs
• 32 Point Connections (16 Inputs / 16 Outputs)
• DB-25/D-SUB Tascam Standard Pinout Format Connectors
• 16 Independent Channels of 48V Phantom Power
• Front Panel - 1 Combo TRS/XLR Input & 1 XLR Output
• PATCH APP Routing Software (OSX & Windows) (iOS iPad Coming Soon)
• Create, Store & Recall Routings in Seconds
• Create Complex Multing Combinations w/ No Impedance Issues
