Description
Patch XT
SPECIFICATIONS:
- 192 Point Connections (96 Inputs / 96 Outputs)
- DB-25/D-SUB Tascam Standard Pinout Format Connectors
- 32 Assignable Independent Channels of 48V Phantom Power
- Front Panel - 2 Combo TRS/XLR Input & 2 XLR Output

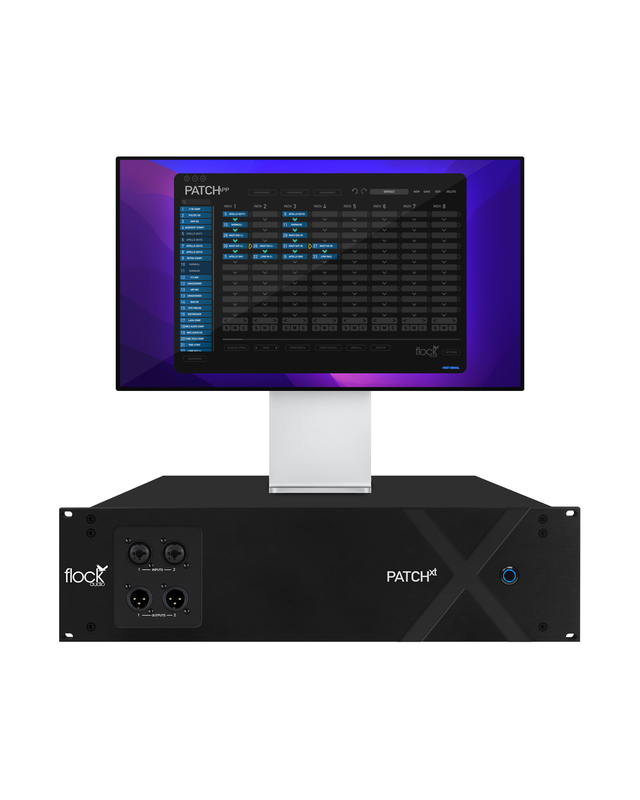

- PATCH APP Routing Software (OSX & Windows) (iOS iPad Coming Soon)
- Create, Store & Recall Routings in Seconds
- Create Complex Multing Combinations w/ No Impedance Issues
- No AD/DA Conversion, 100% Transparent Analog Signal Path
- Remote Sleep/Wake Mode Control of PXT Hardware
- Input Signal Audio Detection Integration
- Patented Flock Audio Matrix Technology
- Multiple Unit Expansion with any PATCH Model (PATCH, LT & XT)
- Internal Power Supply w/ IEC Cable Included
- 6 Ft. - USB 2.0 (USB-A to USB-B) Threaded Securement - Cable Included
- CAT5 Network (Optional Control) Capability (Cable Not Included)
- Unit Dimensions: 3U - 5.25”(H) x 19” (L) x 13” (D) - 26 lbs
- Optional Rear mount Cable Hanger Accessory (Product Code: XTH)
