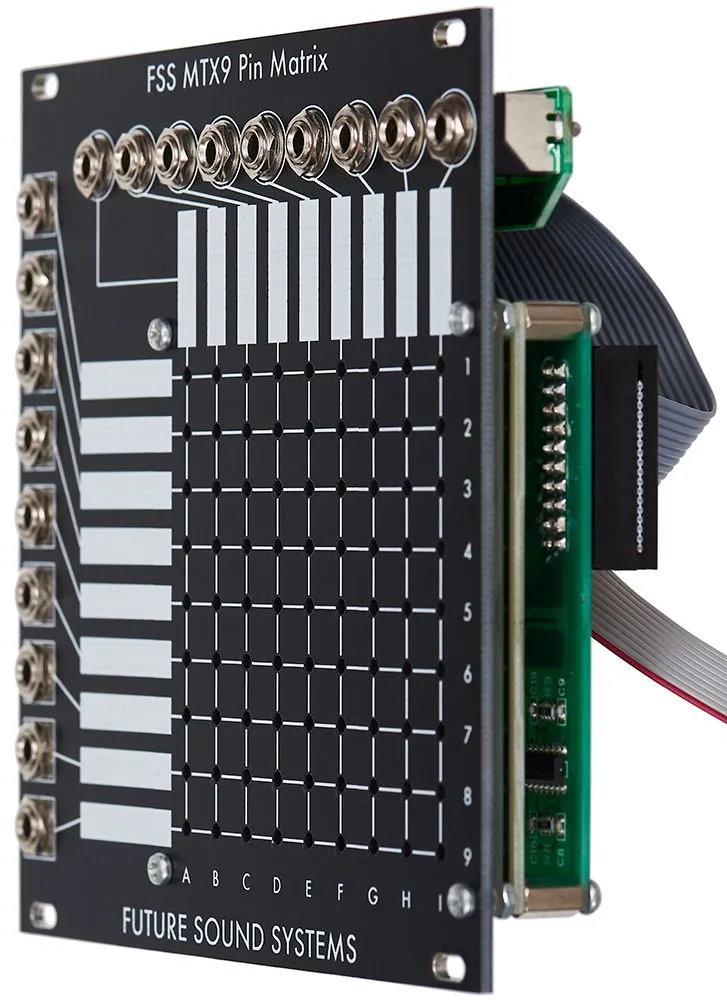

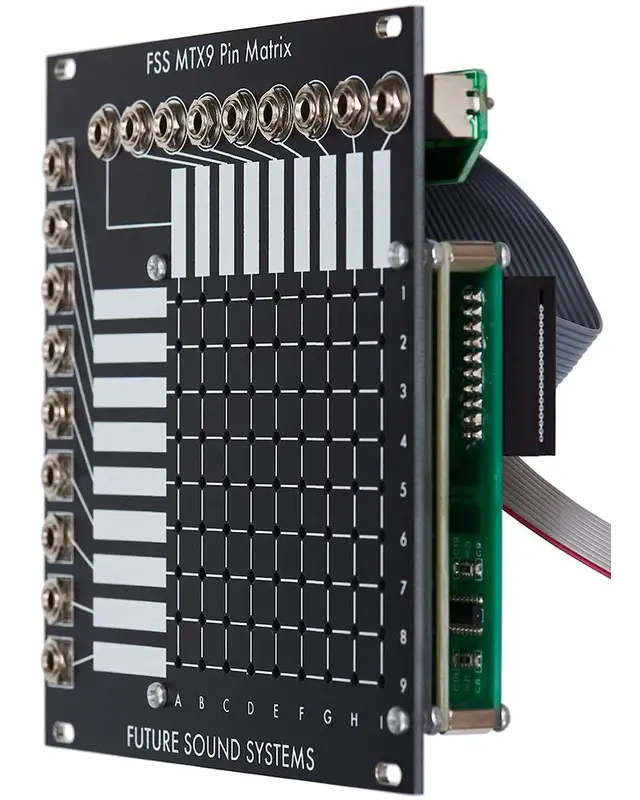

MTX9A Eurorack Active Pin Matrix Module

Future Sound Systems MTX9A: Active Precision for Your Signal Path

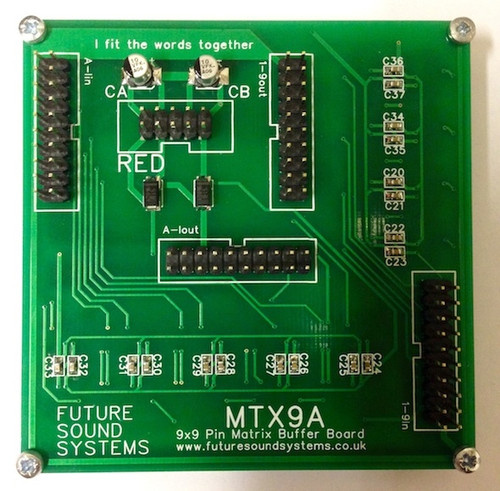

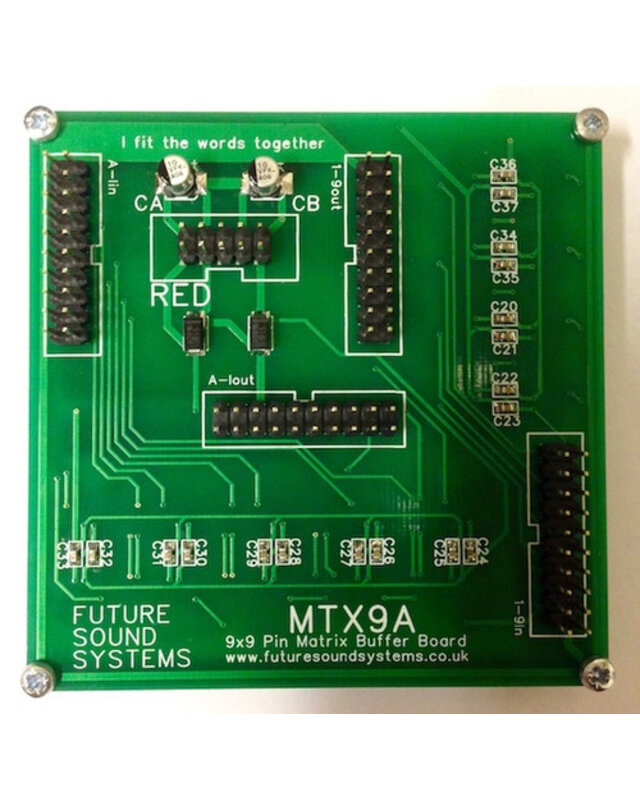

The Future Sound Systems MTX9A is the active counterpart to the MTX9, designed for users who demand absolute precision in their Eurorack signal routing. Unlike passive matrices, the MTX9A is fully buffered. This ensures that you can send a single signal to multiple outputs without experiencing "voltage droop" or signal degradation. This makes the module perfect not only for creative audio routing and feedback loops but also for the critical distribution of pitch CV. With an 8x8 architecture, the MTX9A provides a clear and tactile interface to reconfigure your modular system instantly, whether on stage or in the studio, without the clutter of traditional patch cables.

Key Features:

• Active Buffered Circuitry: Eliminates signal loss, crosstalk, and impedance issues in complex patches.

• 8x8 Matrix Grid: Connect any input to any output seamlessly using the tactile pin interface.

• CV and Audio Versatility: High stability makes it suitable for precise pitch CV splitting and high-fidelity audio.

• Instant Visual Feedback: Map out complex routings and modify them on the fly with the provided pins.

• Stage-Ready Performance: Designed for rapid changes, making it a powerful tool for improvisational live sets.

Technical Specifications:

• Width: 20HP

• Depth: 35mm

• Power Draw: +12V: 50mA, -12V: 50mA

• Connectors: 8x Inputs, 8x Outputs (3.5mm jacks)

• Included: Set of 10 pins
