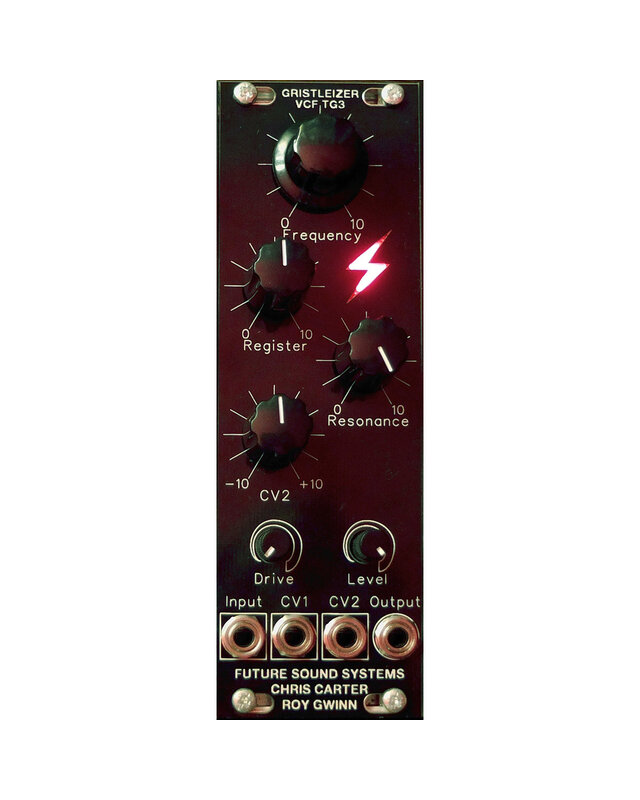

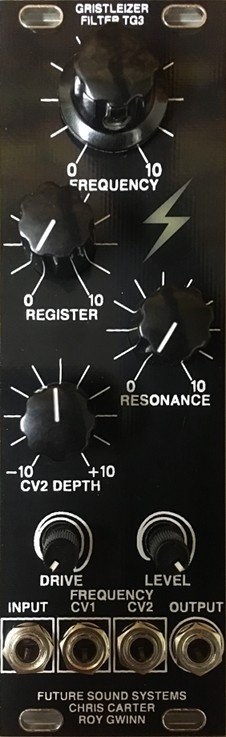

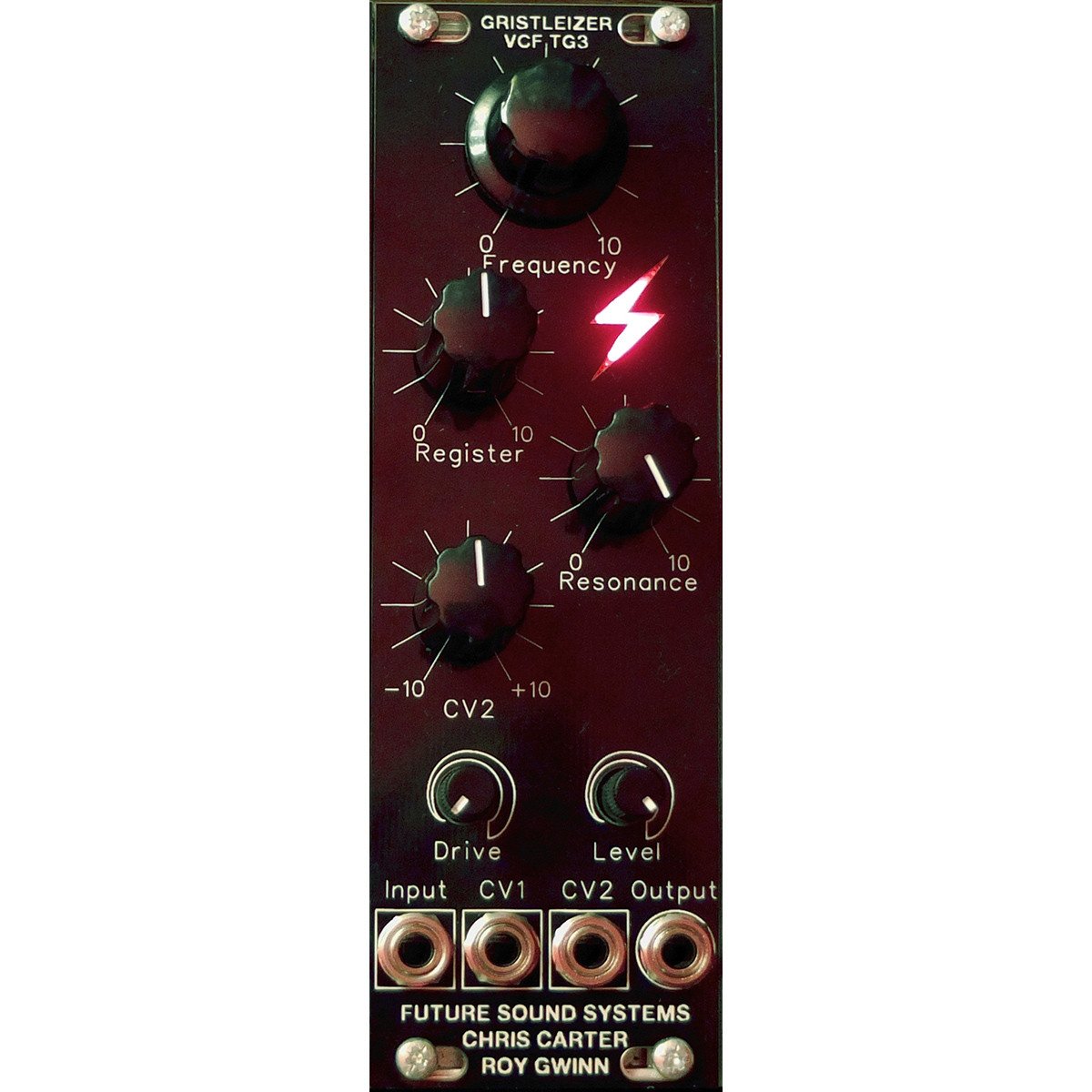

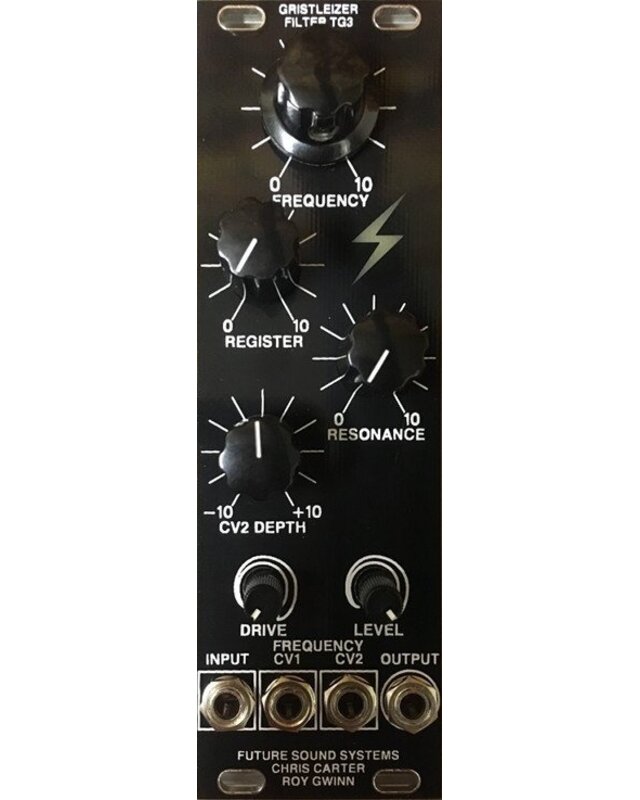

TG3 Gristleizer Eurorack VCF Module

Future Sound Systems TG3: The Raw Resonance of the Gristleizer

The Future Sound Systems TG3 Gristleizer brings the infamous filter section of the original Gristleizer to the Eurorack format. This voltage-controlled filter (VCF) is renowned for its untamed and aggressive character. Unlike traditional filters that strive for purity, the TG3 imparts a unique analogue distortion and grittiness to any signal passed through it. With the ability to sweep from subtle tonal shaping to complete sonic chaos, this filter is an essential instrument for devotees of industrial music and experimental sound design.

Key Features:

• Authentic JFET Circuitry: Based on the original Gristleizer architecture for a distinctively raw profile.

• Extreme Resonance Potential: Capable of being pushed into self-oscillation for piercing leads and drones.

• Dynamic Modulation: Features CV inputs for both cutoff frequency and resonance control.

• Harmonic Saturation: Naturally clips and distorts at higher input levels for added harmonic richness.

• Tactile Performance: Designed for immediate manual interaction during live sessions.

Technical Specifications:

• Width: 8HP

• Depth: 35mm

• Power Draw: +12V: 30mA, -12V: 25mA

• Inputs: Audio In, Cutoff CV In, Resonance CV In

• Outputs: Audio Out
