T7V

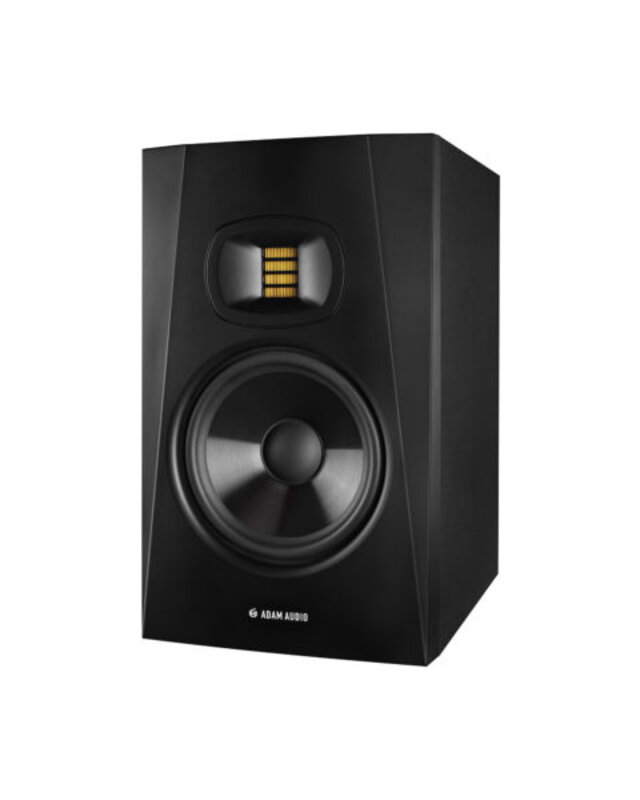

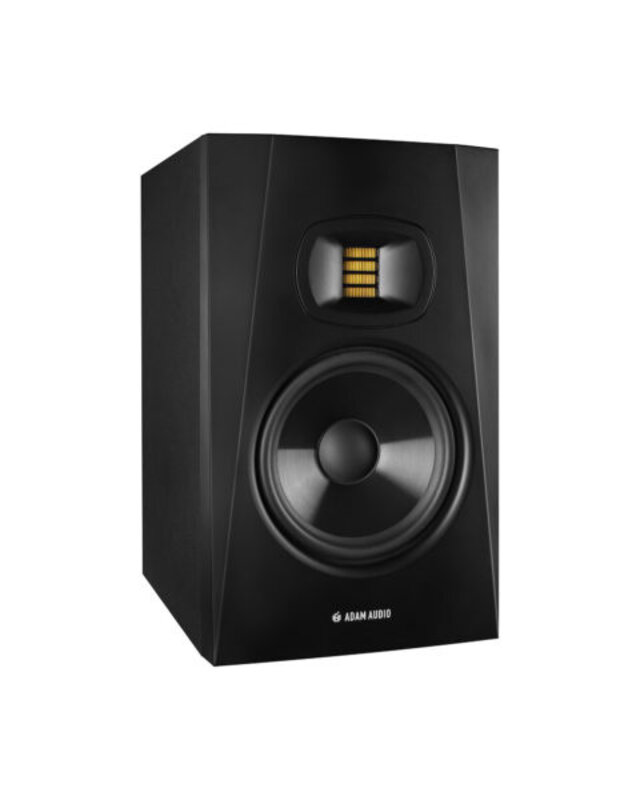

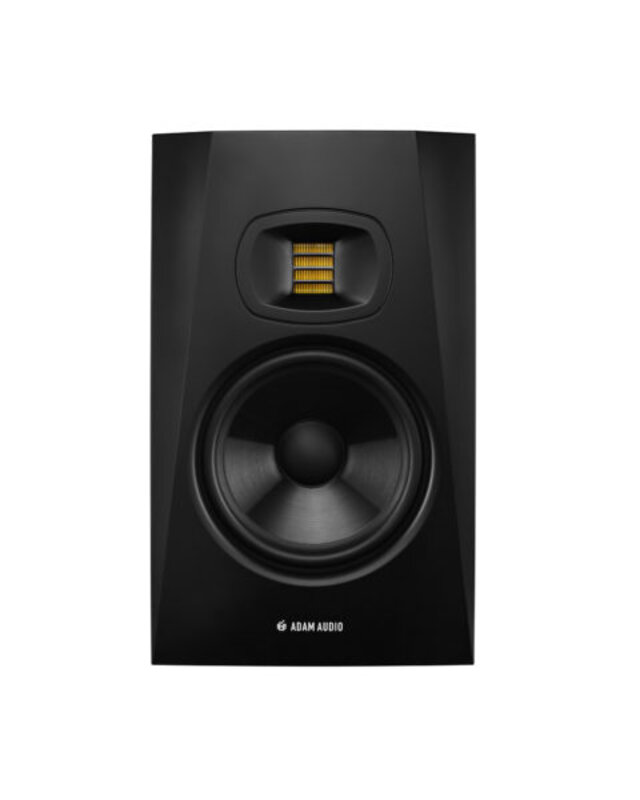

The T7V features a 7” woofer that provides bass extension down to 39 Hz, while the U-ART tweeter’s diaphragm provides pristine and extended high-frequency response up to 25 kHz – virtually unheard of in monitors in this price range. The U-ART tweeter is fitted to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series studio monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.
TECHNICAL DATA
General Data

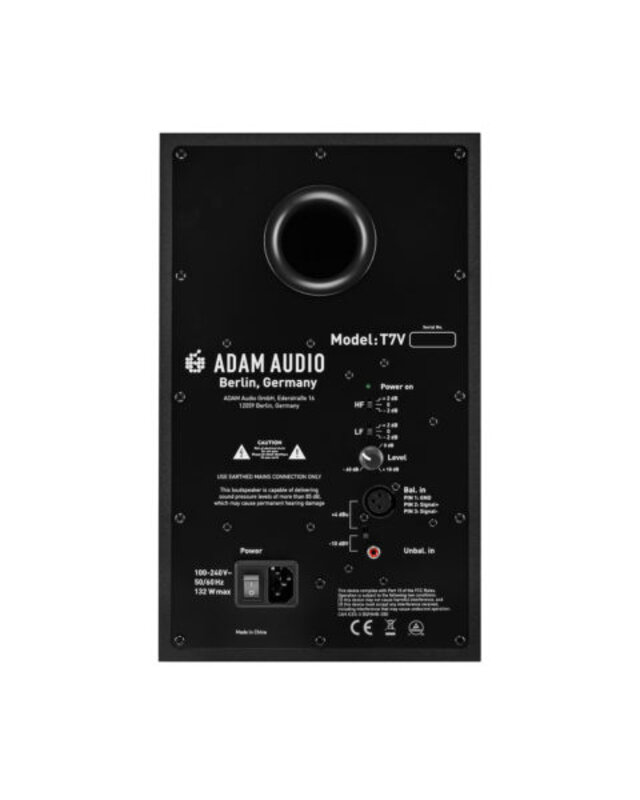

- Panel: Rear
- Max. Power Consumption: 132 W
- Weight: 15.7 lbs (7.1 kg)
- Height x Width x Depth: 13.7″ x 8.3″ x 11.5” ( 347 mm x 210 mm x 293 mm)
- Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
- Delivery Contents: Power cord, Quick Start Guide
Audio Input Connectors
- Analog: XLR / RCA
- Input Impedance: 10 kOhm / 20 kOhm
Amplification
- Woofer
- Amplifier Type: PWM
- Amp. Power RMS: 50 W
- Tweeter
- Amplifier Type: PWM
- Amp. Power RMS: 20 W
Acoustics
- Frequency Response: 39 Hz – 25 kHz (-6 dB)
- THD > 80 Hz: 0.5 %
- Max. SPL per pair at 1 m: ≥110 dB
- Crossover Frequency: 2.6 kHz
Drivers
- Woofer
- Basket Diameter: 7″
- Voice Coil Diameter: 1″
- Cone Material: Polypropylene
- Tweeter
- Type: U-ART
- Diaphragm Area: 4 inch² (2420 mm²)
- Equiv. Diaphragm Diameter: 1.9″ (48 mm)
- Velocity Transform Ratio: 4 to 1
- Diaphragm Weight: 0.17 g
- Waveguide: HPS
Control Options
- Input Sensitivity: -10 to +4 dB
- Gain: Yes
- High Shelf EQ > 5 kHz: -2 dB, 0 dB, +2 dB
- Low Shelf EQ < 300 Hz: -2 dB, 0 dB, +2 dB
More information you can find here: Adam Audio T7V
