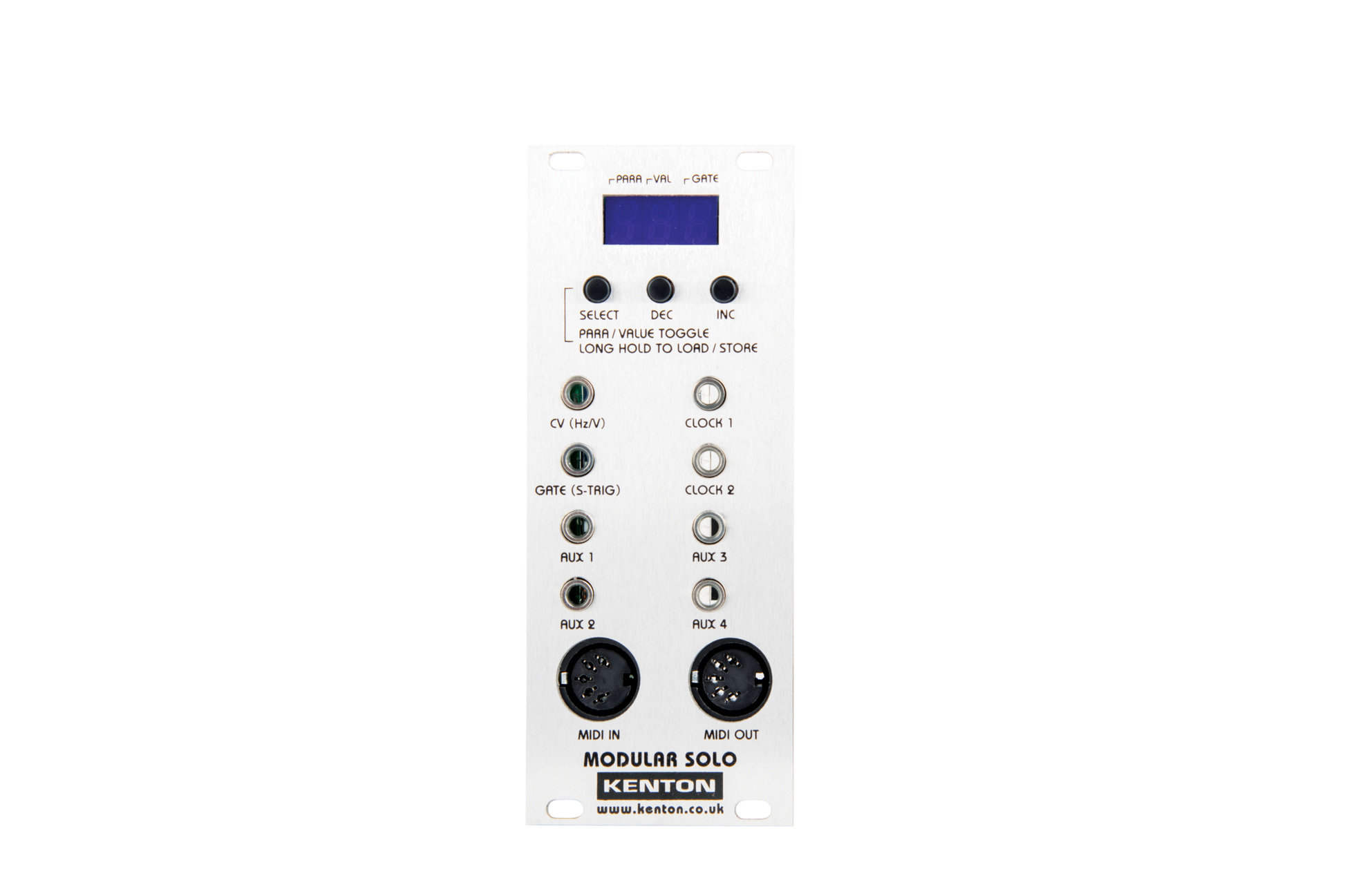

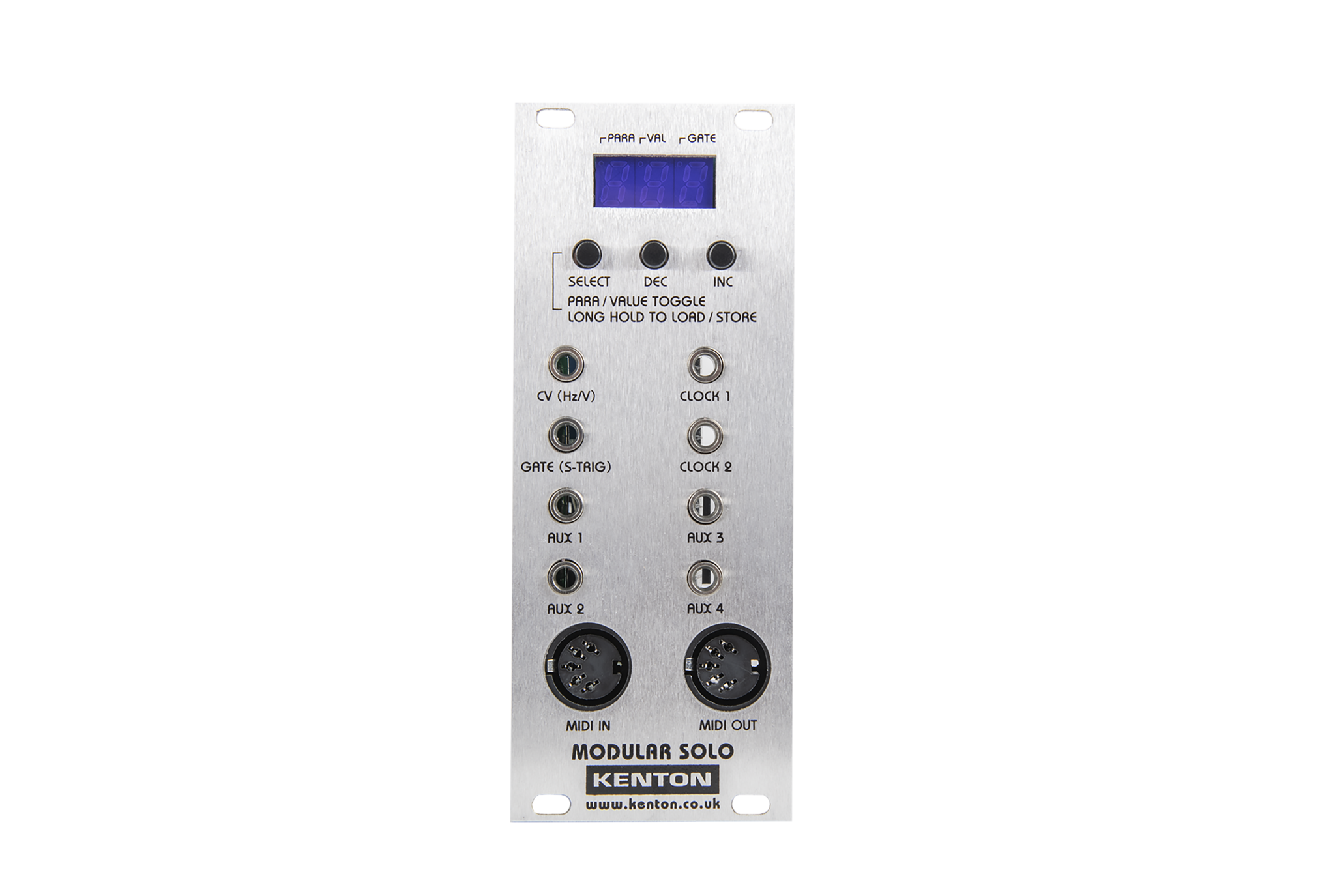

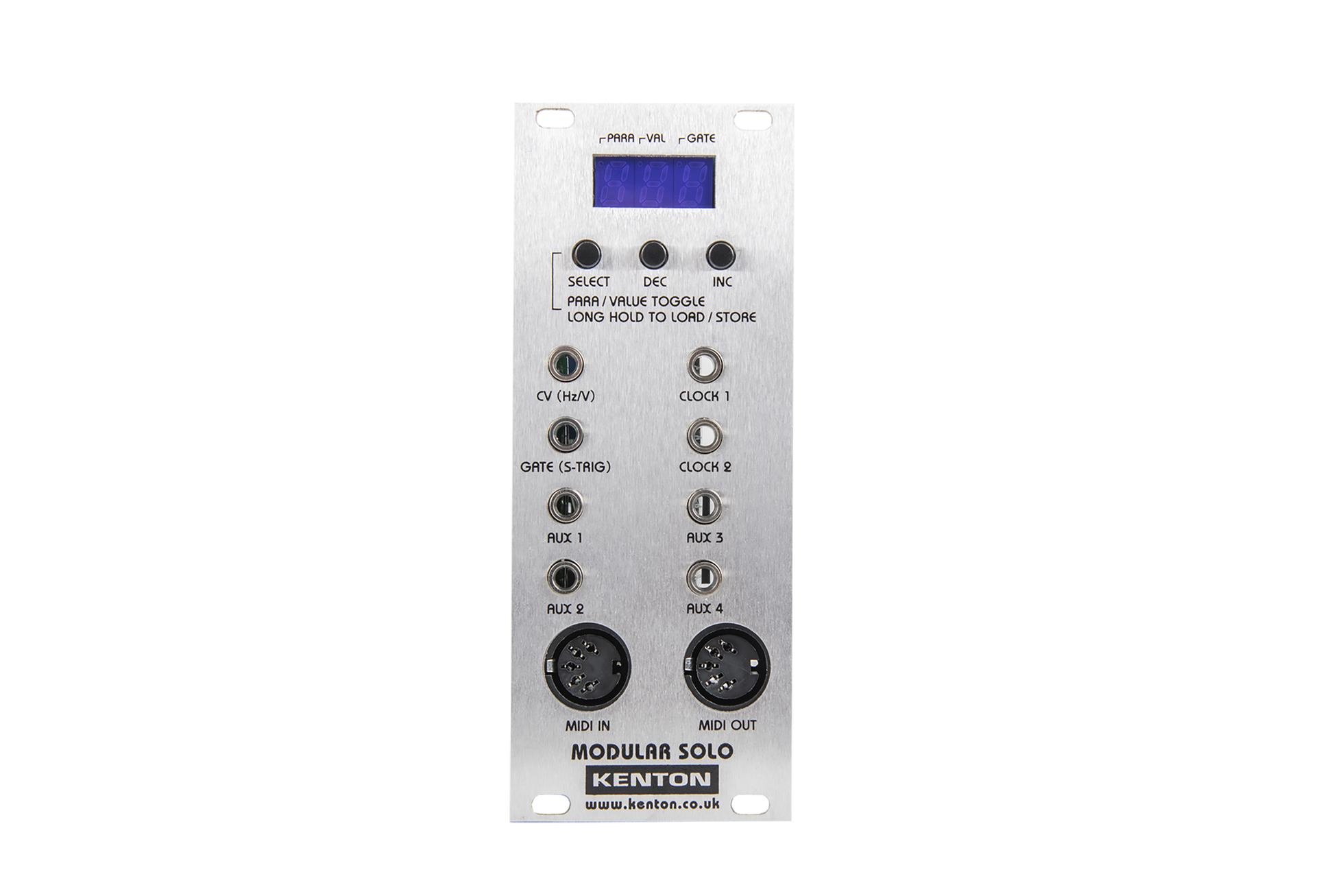

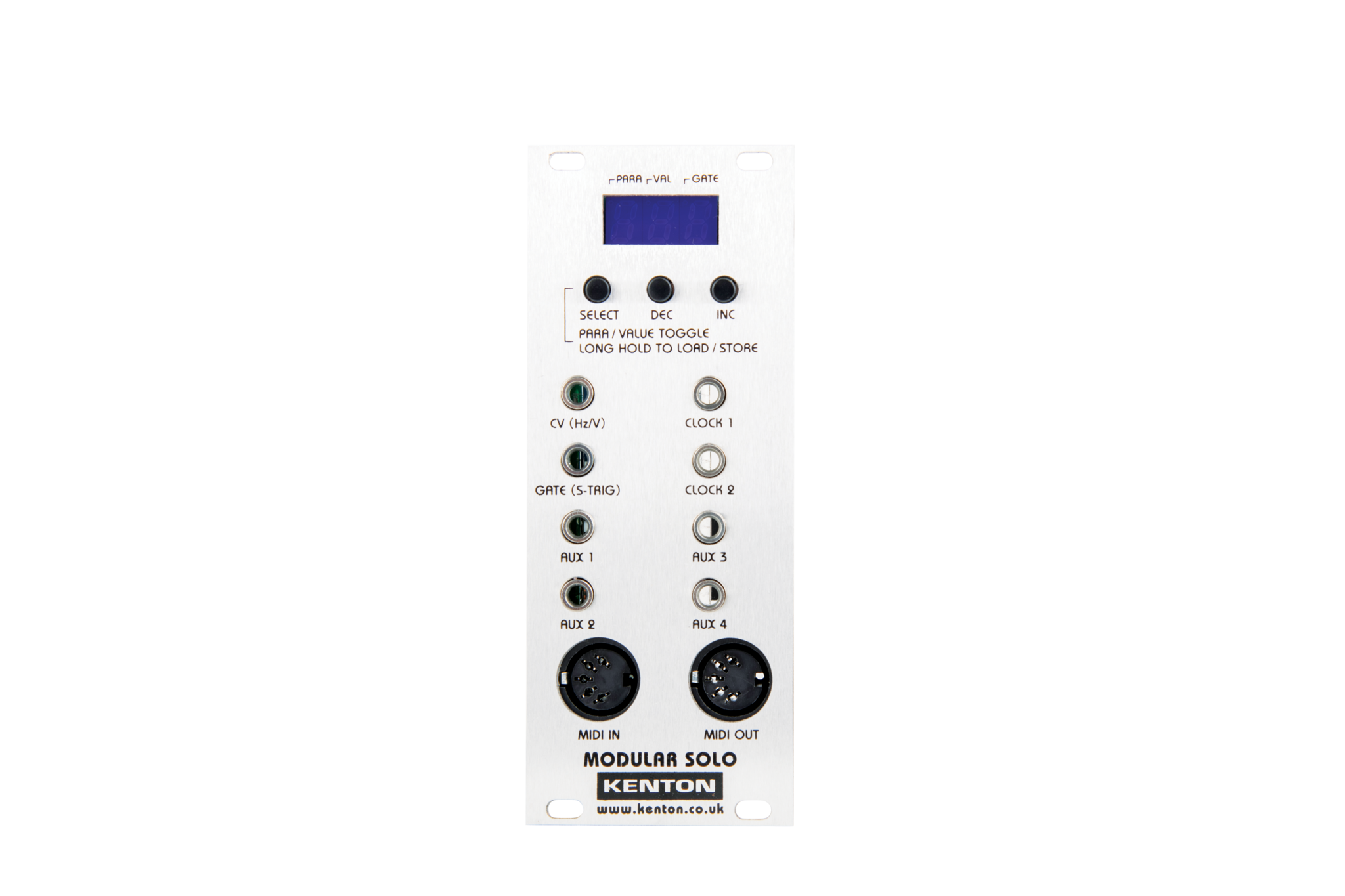

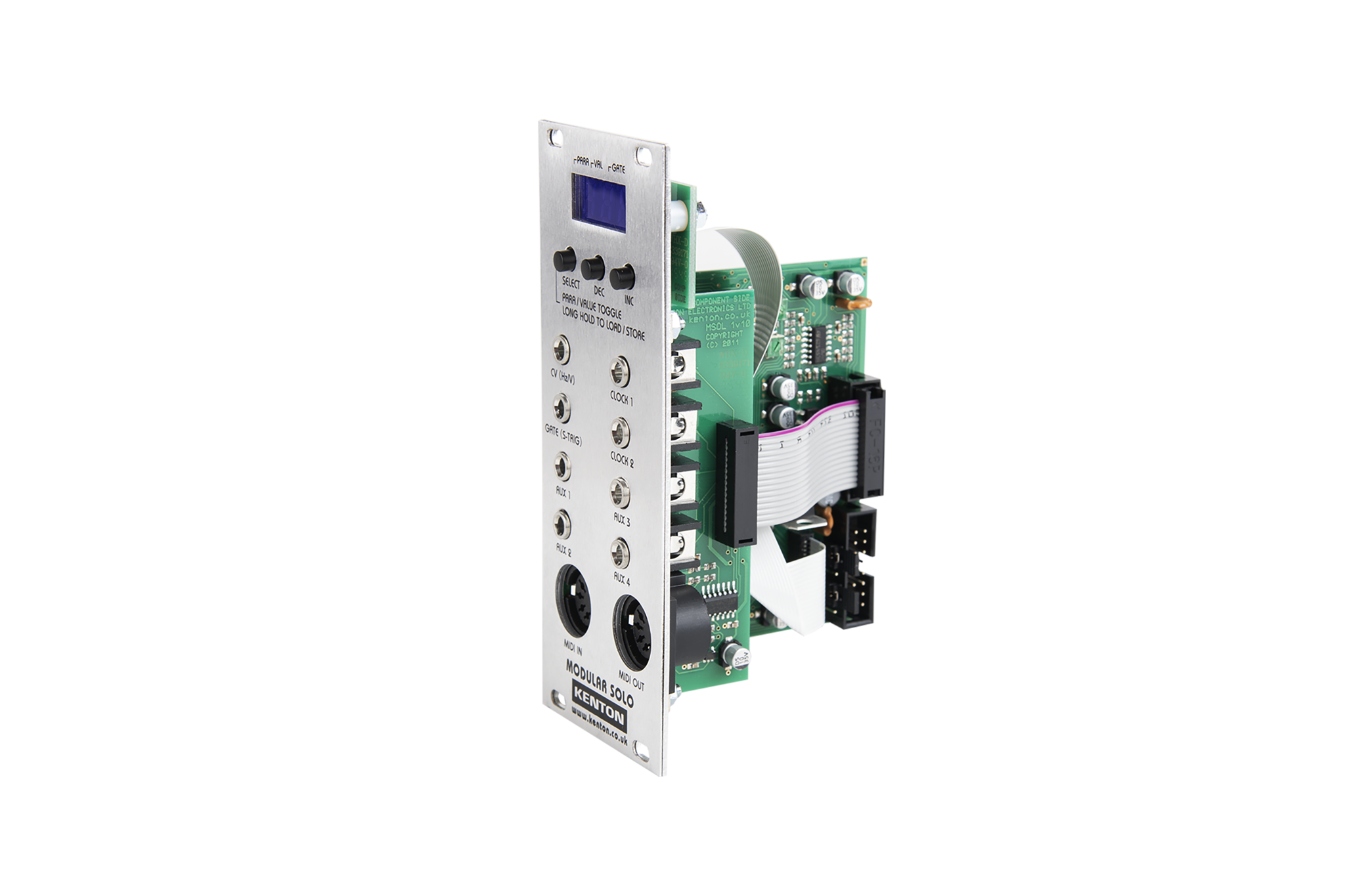

Kenton Modular Solo MIDI-CV/ Gate Interface (Module)

Description

The Modular Solo is the perfect MIDI to CV converter for Eurorack modular users. Featuring the rock-solid tuning stability that Kenton converters are famous for, the Modular Solo also includes four continuously variable auxiliary outputs for controlling other aspects of your modular system; as well as two dedicated clock outputs (which can be set to different division ratios) for keeping everything synched up to MIDI clock.

The CV output can operate at the usual 1V/Oct, or as Hz/Volt or 1.2V/Oct. The scaling and tuning are adjustable, to accommodate any unruly modules you might have. The Gate output can work at several different voltage levels, and can also be set to work a S-trig instead. In addition to this, the MIDI OUT port can be switched to output Sync24, so your vintage Roland equipment can join in as well.

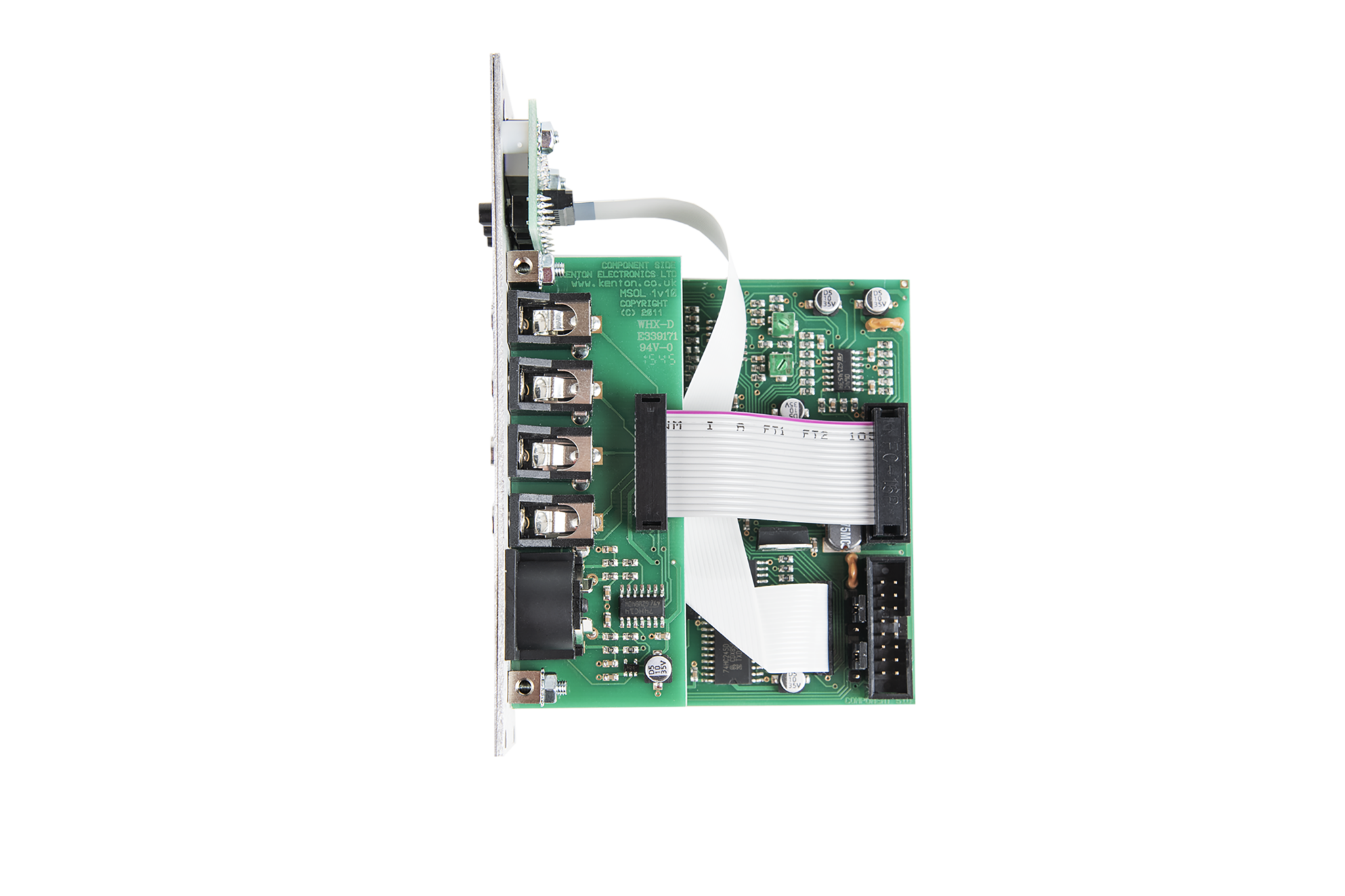

It is 10HP wide, 80mm deep, and includes a 20cm ribbon cable to connect to standard Doepfer-style power supplies.

Features

Designed to control all types of mono-synth
Super-fast response time
Famous Kenton build quality
High specification 16 bit D/A converter for main CV for rock-steady pitches
CV/Gate/Aux/Clock outputs on 3.5mm mono jack sockets (3.5mm to 1/4″ cables are available in our cables section)
CV & Gate signals can be sent via the ribbon cable to the system bus – selected using jumpers
MIDI IN socket (5 pin DIN)
MIDI OUT/THRU (5 pin DIN) socket can be switched to become DIN Sync 24 instead
Any MIDI channel can be selected
Switchable for V/oct & Hz/V & 1.2V/oct scaling systems
Fine tune & scale are software controllable
Transpose (coarse tune) – up & down 12 semitones
Adjustable pitchbend range – up to 12 semitones
Programmable Gate V-trig (up to 10V) or S-trig (with or without pull-up)
Multiple and single trigger modes
Note priority selection – newest / lowest / highest
Old notes are remembered to facilitate trill effects and increase playability
Portamento – fixed rate or fixed time modes
Auto Portamento mode selectable (where legato playing turns on Portamento)
Portamento Controller is selectable (default 65)
Programmable AUX 1,2,3,4 variable analogue output controllable by any MIDI controller
2x fully independent clock outputs 5V or 10V selectable
Programmable LFO – 9 wave shapes including random
LFO can modulate pitch &/or AUX output
Separate Controllers for LFO to CV and LFO to AUX
LFO can be synchronised to MIDI clock
LFO sync point can be selected
Key-on can reset LFO
Clock outputs can independently select from 1 to 12, 24, or 48 clocks per quarter note
Set-up are stored in non-volatile memory for easy recall
MIDI monitor mode – for easy MIDI troubleshooting
MIDI OUT/THRU socket can be switched to become DIN Sync 24
Portamento – new fixed time mode as well as existing fixed rate
Auto Portamento mode selectable (where legato playing turns on Portamento)
LFO sync point can be selected
LFO to CV controller now has Min, Max and Reset values
LFO to Aux controller now has Min, Max and Reset values
Key-on can reset LFO
All parameters are controllable in real-time by SysEx
Din sync and clock can be used at the same time as CV and Gate outputs

Manual you can find here: Manual
