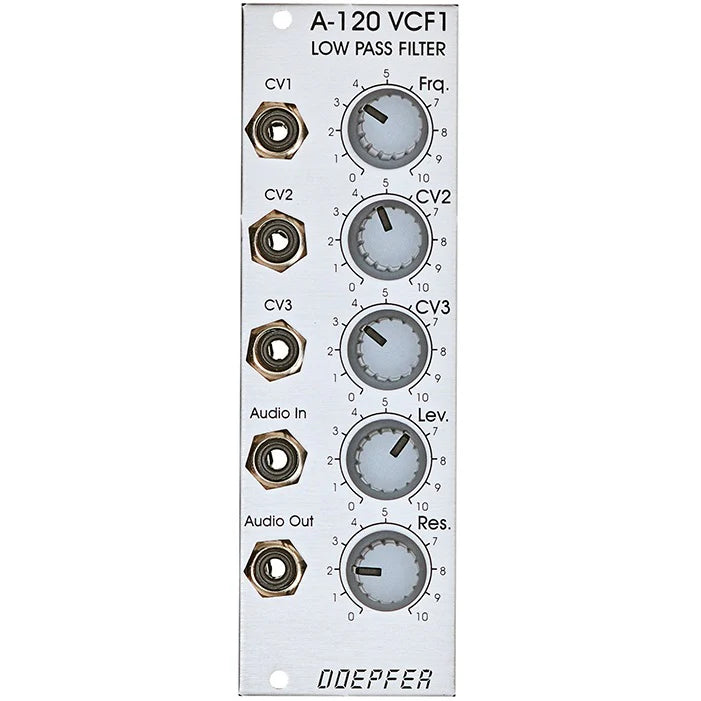

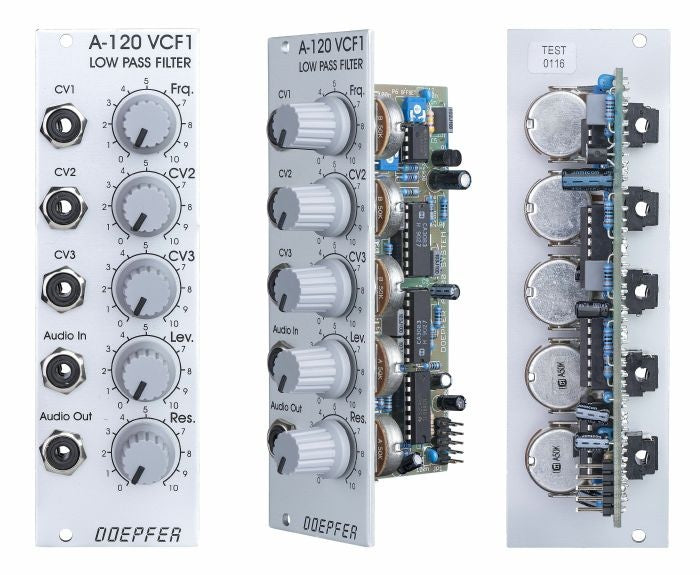

Doepfer A-120 24dB Low Pass Filter – Classic Ladder Sound for Your Eurorack
The A-120 is Doepfer’s take on the legendary Moog ladder filter, delivering the classic 24dB/oct low-pass response with a rich, warm character. It's a must-have for anyone exploring subtractive synthesis in the modular world. Both cutoff frequency and resonance can be modulated via control voltage.
Key Features:
-
24dB/oct analog low-pass filter
-
Based on the Moog ladder design
-
CV-controllable cutoff and resonance
-
Warm and full sound ideal for subtractive synthesis
-
Suitable for bass, leads, pads, and classic filter sweeps
Technical Specifications:
-
Width: 8 HP
-
Power: +12V (approx. 30mA), -12V (approx. 20mA)
-
Inputs: Audio In, CV In (cutoff), CV In (resonance)
-
Output: Audio Out
-
Color: Silver
