Klavis Tweakers

Klavis Tweakers

Regular price €84,00
Sale price Regular price

Product details

Main features

  • Gainper-channel gain from zero to about x2.1 for attenuation or boost
  • Offsetbipolar offset pot per channel, zero at centre
  • Polaritythree-position inverted / off / normal switch on each channel
  • Normallinginput A feeds both channels; output B sums both channels as a mixer

Overview

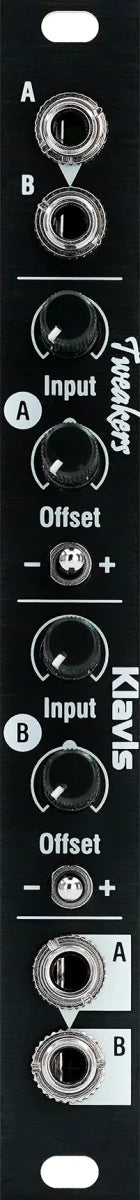

The Klavis Tweakers is a 3HP Eurorack module for shaping control voltages. It has two channels, each with gain, offset, polarity switching and mute. It suits patches where a modulation source needs scaling, shifting or inverting before it reaches a CV input that has no attenuator or offset control of its own.

  • Two independent channels, each with an input, an output, a gain pot, a bipolar offset pot and a three-position switch
  • Gain from zero to about x2.1, so it can amplify weak signals as well as attenuate them
  • Bipolar offset that is zero at centre and is not affected by the polarity switch
  • Inverted / off / normal switch per channel, for flipping or muting a signal on the fly
  • Normalled input and output that turn the module into a splitter or a two-channel mixer without extra cables

The normalling is what makes the module more than two plain attenuverters. With nothing patched into input B, input A feeds both channels, so one source can be processed two ways without a multiple. With nothing patched into output A, output B carries the sum of both channels.

Using both paths at once gives a useful performance trick. Channel A holds a base setting, such as a transpose voltage. Flipping the switch on channel B then adds or subtracts a prepared variation without muting A. The same approach works for switching between preset pitch offsets during a live set.

The Tweakers is DC-coupled and runs from DC to beyond audio rate, so it also works on audio. The manual describes using it as a simple audio mixer. It also describes overdriving waveforms on purpose to clip them and change their harmonics, for example turning a triangle or saw into a half-trapezoid, then re-centring the result with the second channel. A slow modulation can make that waveshaping move over time.

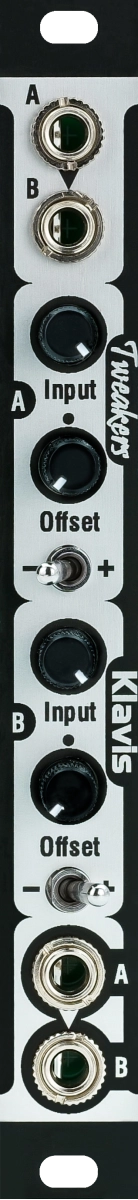

The offset can also convert a unipolar signal to bipolar and back. The module comes with either a silver or a black aluminium panel.

Specifications· 21 details

Format

Format
Eurorack
Width
3 HP (15.00 mm / 0.59 in)
Height
3U (128.40 mm / 5.06 in)
Depth behind panel
33.00 mm / 1.30 in

Inputs & outputs

Inputs
2 (input A normalled to both channels)
Outputs
2 (output B carries A+B when output A is unpatched)
Input range
±12V
Output range
approx. ±10V
Frequency range
DC to beyond audio
I/O protection
Withstands -12V to +12V

Controls

Gain
2 pots, zero to x2.1
Offset
2 bipolar pots
Polarity switch
2 × 3-position (inverted / off / normal)

Power

Power draw +12V
24 mA
Power draw +5V
0 mA
Power connector
Eurorack 10/16-pin, reverse-insertion protected

General

Functions
Modulation and Utility
Module height
3U
Instrument material
Aluminum
Synthesizer form factor
Control voltage or gate connectivity
,
