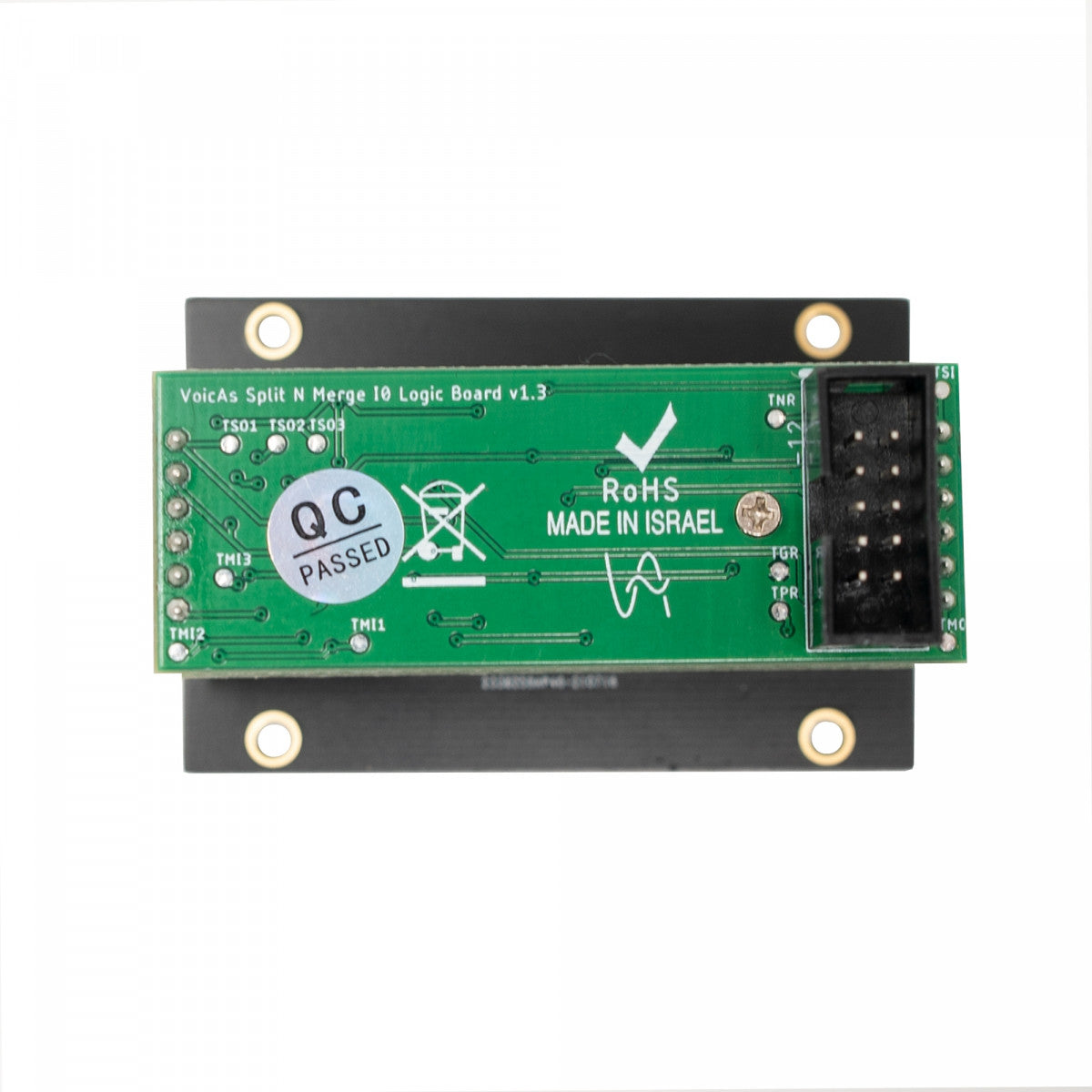

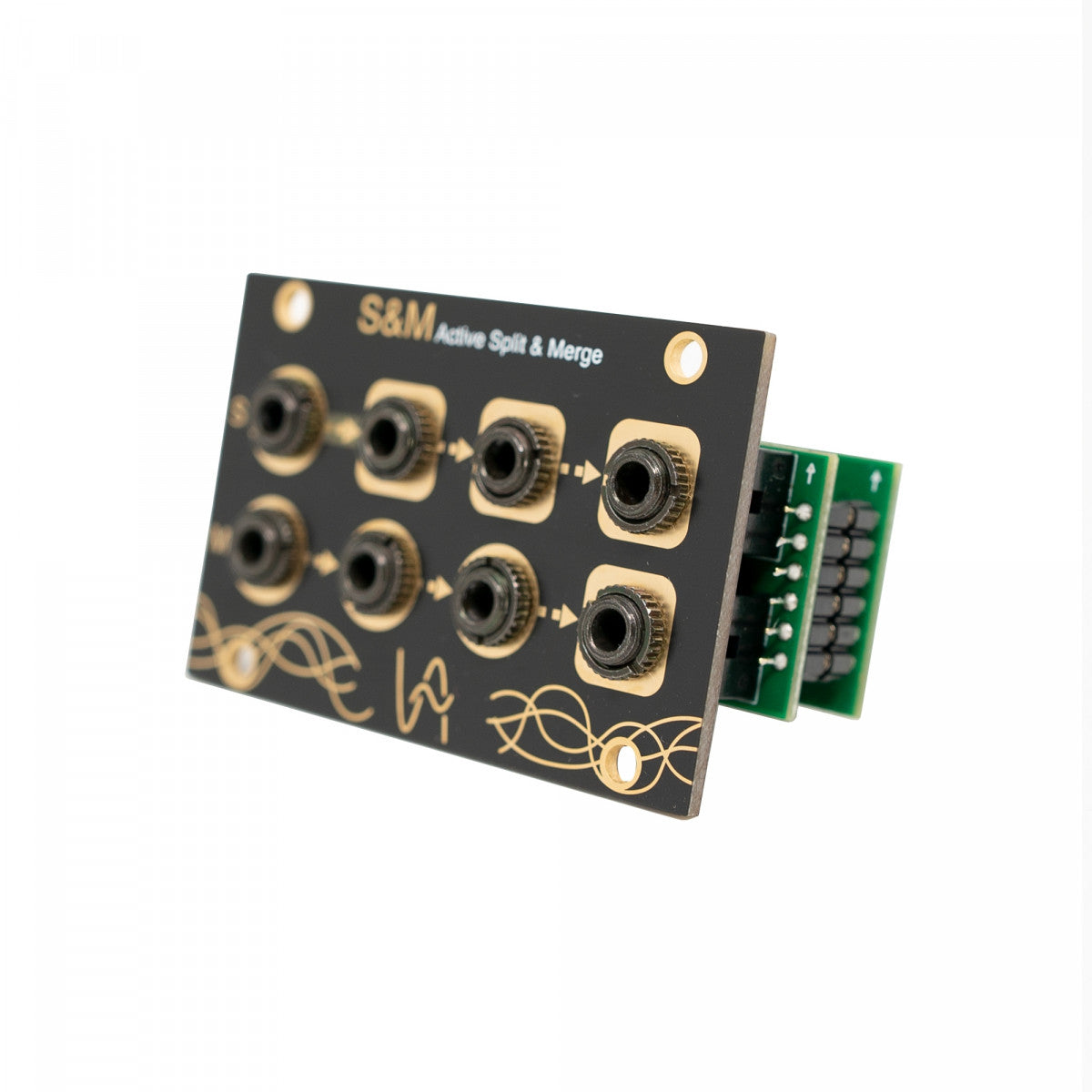

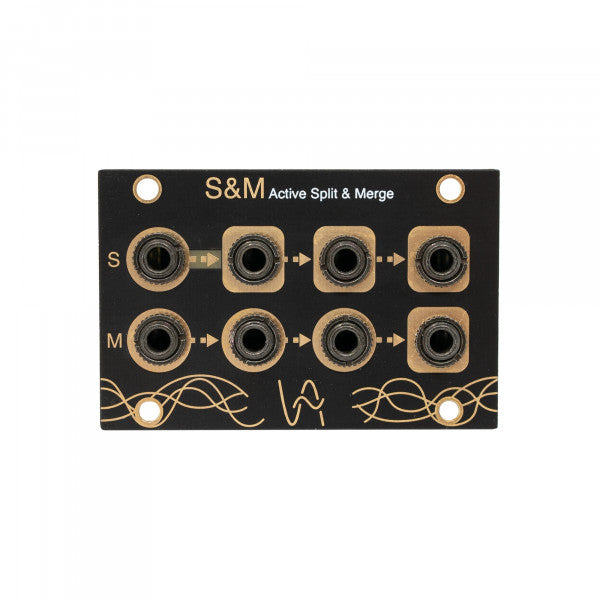

VoicAs S&M 1U: Splitter and Merger
The VoicAs S&M is a highly practical, space-saving utility module designed for the Intellijel-format 1U row. It combines an active, buffered signal splitter with a DC-coupled unity mixer, providing essential signal management in a compact 12HP footprint.
The Splitter section features one input with three buffered outputs, perfect for distributing pitch CV or clock signals throughout your system without any signal loss or droop. The Merger section offers three inputs mixed to one output, ideal for combining multiple audio or CV sources. Its DC-coupled design ensures full compatibility with both audio and control voltages, making it an indispensable "glue" tool for any modular rack.
Key Features:
-
Dual Functionality: Features both a 1-in 3-out active buffered multiple and a 3-in 1-out unity gain mixer.
-
Buffered Distribution: Active circuitry ensures stable, precise voltage distribution—highly recommended for Pitch CV.
-
DC-Coupled: Full range processing suitable for both audio signals and control voltages.
-
Intellijel 1U Format: Designed specifically for 1U rows in compatible Eurorack cases.
-
Space Efficient: 12HP width and compact 20mm depth.
