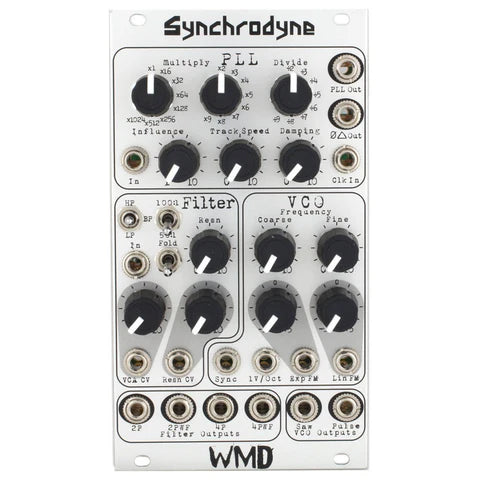

WMD Synchrodyne: A New Dimension in Synthesis
The WMD Synchrodyne is a powerful and versatile module that introduces a unique approach to filtering and sound generation. At its core lies a stable, sawtooth-based VCO that drives a sophisticated "switched-capacitor" filter. Because the filter frequency is directly clocked by the oscillator, it produces sonic results ranging from smooth, liquid sweeps to raw, aliasing-heavy textures. Combined with a built-in VCA and an integrated wavefolder, the Synchrodyne acts as a complete, experimental synth voice for any modular system.
Key Features:
-
Coupled Oscillator and Filter: The onboard VCO provides the clock for the filter, ensuring perfect tracking across the frequency range.
-
Switched-Capacitor Technology: Delivers unique resonance behaviors and steep slopes distinct from traditional analog filters.
-
Integrated Wavefolder: Add complex harmonic overtones to your waveforms for surgical sound design.
-
Built-in VCA: Allows the module to function as a standalone voice with dedicated amplitude control.
-
Extensive CV Control: Features multiple inputs for FM, PWM, and filter modulation to create evolving timbres.
Technical Specifications:
-
Width: 14HP
-
Depth: 40mm
-
Power Draw: +12V: 80mA, -12V: 60mA
-
Inputs: 1V/Oct, FM, PWM, Filter In, VCA CV
-
Outputs: Saw Out, Pulse Out, Filter Out
