Phase Displacement Oscillator MKII - ltd. supply only

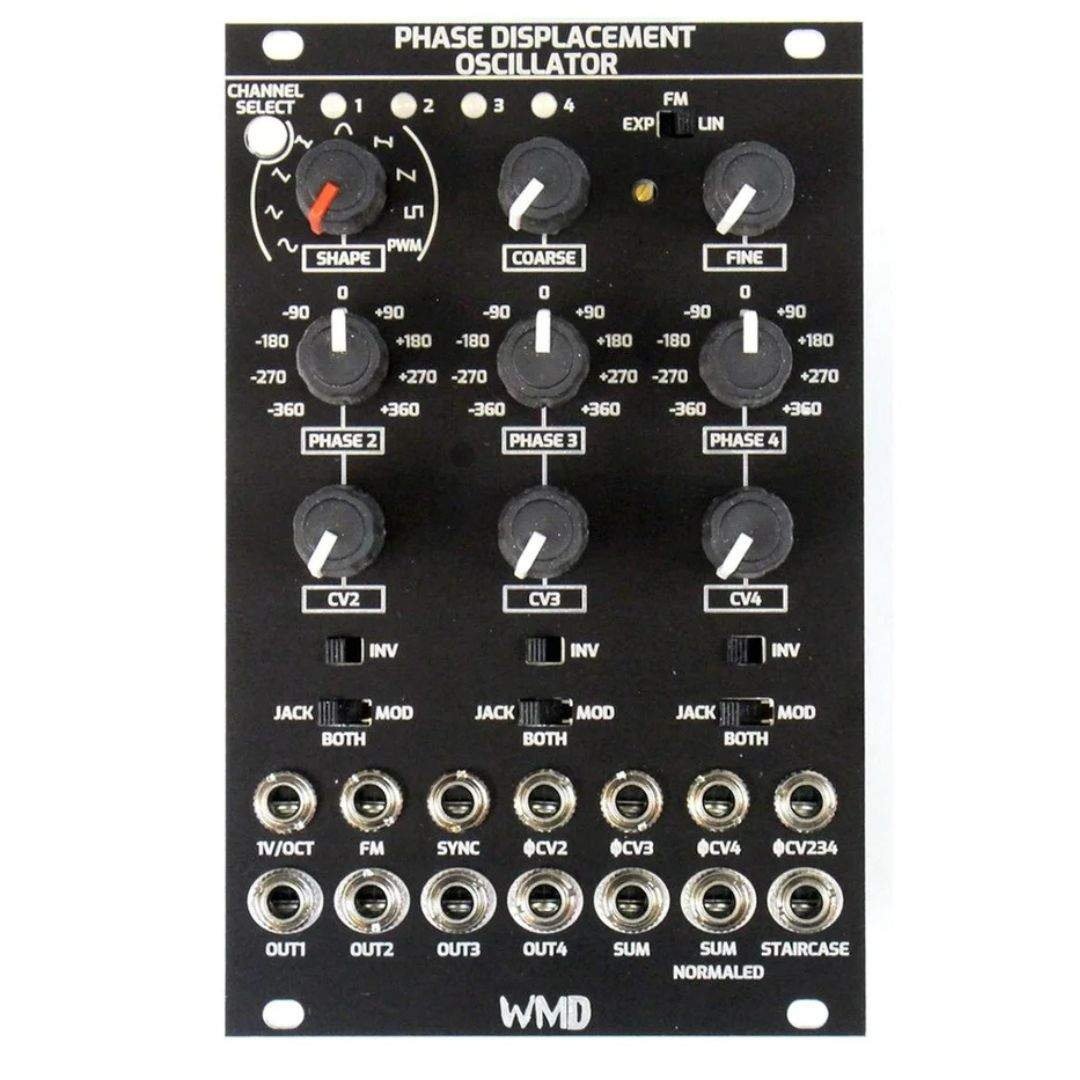

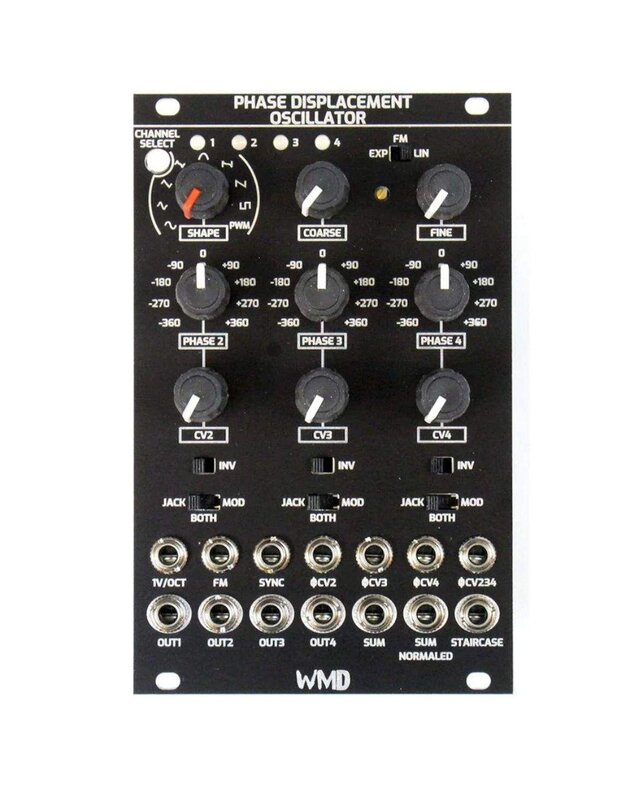

WMD Phase Displacement Oscillator MKII: Innovative Phase Synthesis

The WMD Phase Displacement Oscillator (PDO) MKII is a unique VCO that offers an alternative approach to sound shaping by utilizing phase displacement rather than standard waveform manipulation. The MKII version enhances the original design with more stable tracking and expanded modulation capabilities. By shifting the phase of its four independent outputs relative to the master oscillator, the PDO generates complex, evolving textures reminiscent of FM synthesis but with its own distinct sonic signature. Please note: This is a limited supply item.

Key Features:

• Phase Displacement Engine: Create harmonically rich timbres by shifting the phase relationship of waveforms.

• Four Independent Outputs: Each output provides a unique phase-offset for deep, spatial patches.

• Precision Tracking: The MKII features excellent 1V/Oct stability across a wide frequency range.

• Sync & FM Capabilities: Equipped with hard sync and both linear and exponential FM for classic modulation.

• Limited Availability: A final opportunity to add this legendary and rare oscillator to your modular system.

Technical Specifications:

• Width: 12HP

• Depth: 35mm

• Power Draw: +12V: 70mA, -12V: 65mA

• Inputs: 1V/Oct, FM, Phase CV (x4), Sync

• Outputs: 4x Phase Displaced Outputs
