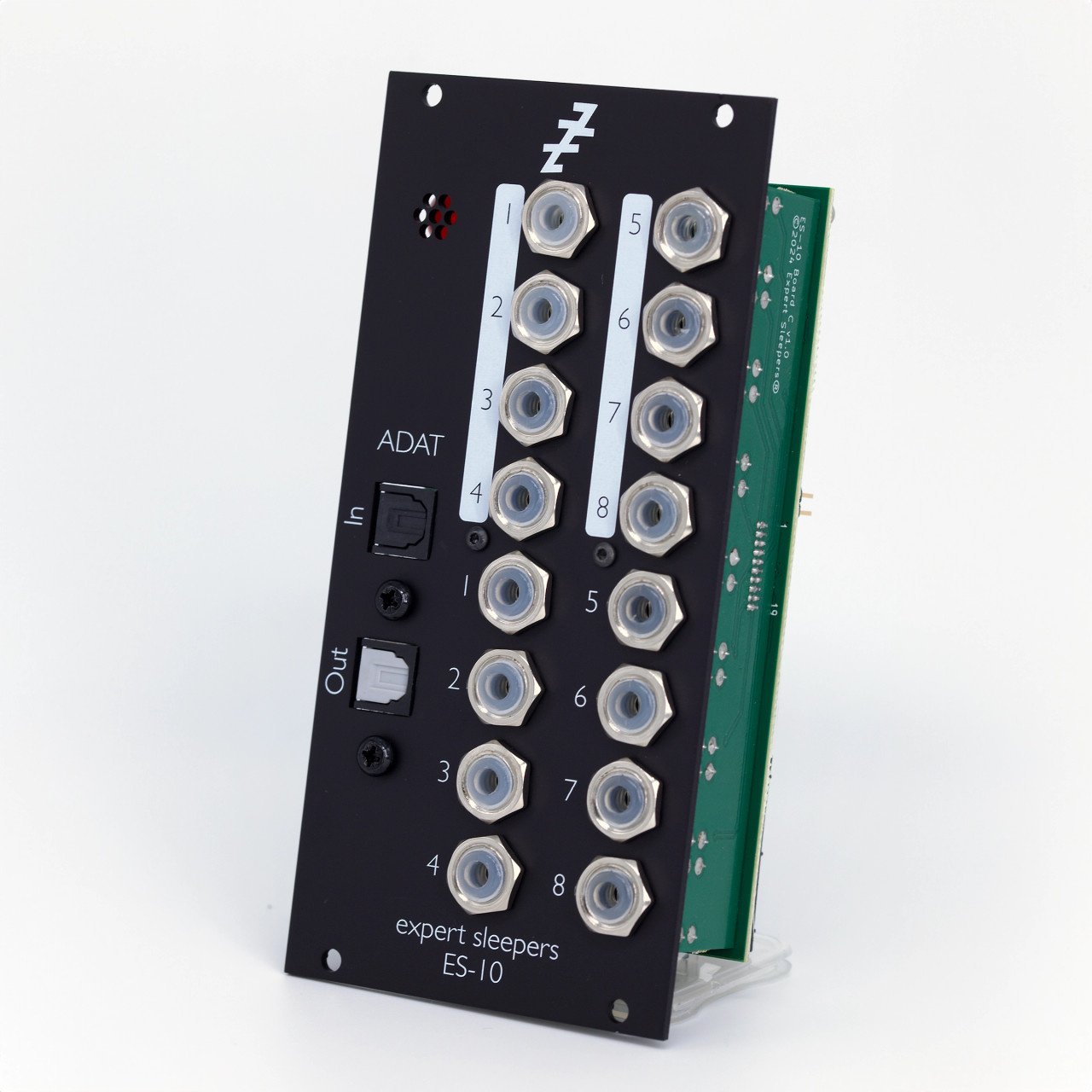

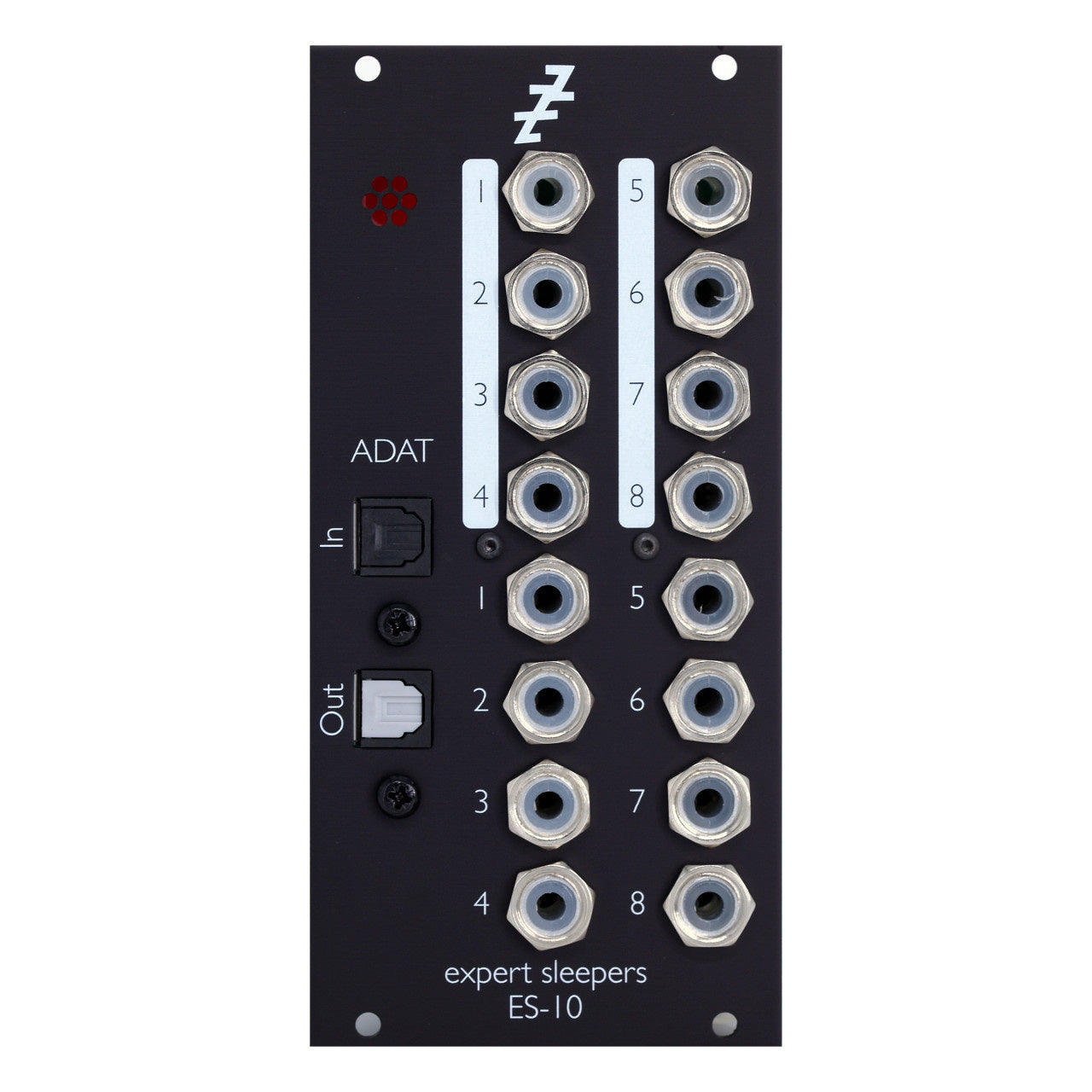

Expert Sleepers ES-10 Eurorack ADAT Lightpipe/CV Interface
Prices include 21% VAT based on your delivery country (Netherlands).
Price without VAT: €266,94
EU businesses outside the Netherlands can purchase with 0% VAT using a valid EU VAT number.
VAT is automatically removed after VAT validation during checkout.
Overview & Tech Specs
Overview & Tech Specs
Expert Sleepers ES-10: Sample-Accurate Hybrid Integration
The ES-10 is a high-density ADAT interface that brings professional-grade I/O to your Eurorack system. By utilizing the ubiquitous ADAT protocol, it provides eight inputs and eight outputs that are all fully DC-coupled. This allows for the simultaneous transfer of high-fidelity audio and jitter-free control voltages between your hardware and your DAW. Whether you are using it to process software plugins through analog filters or to record multi-track modular jams with perfect phase alignment, the ES-10 is an essential tool for the modern hybrid musician.
Key Features:
-
Bi-Directional ADAT Interface: 8 channels in and 8 channels out in a single 12HP module.
-
DC-Coupled Architecture: Effortlessly handle everything from sub-audio LFOs to high-frequency audio.
-
Plug-and-Play Integration: Works with any audio interface equipped with ADAT TOSlink ports.
-
Low Latency Performance: Essential for real-time interaction between software sequencers and modular hardware.
-
Expandable Design: Includes headers for connecting further I/O expanders like the ES-5 or ES-6.
Technical Specifications:
-
Width: 12HP.
-
Depth: 50mm.
-
Digital I/O: 1x ADAT In, 1x ADAT Out (TOSlink).
-
Analog I/O: 8x 3.5mm Inputs, 8x 3.5mm Outputs.
-
Current Draw: +145mA (+12V), -40mA (-12V).
