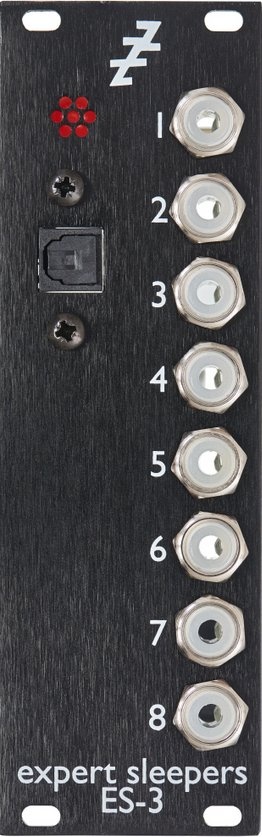

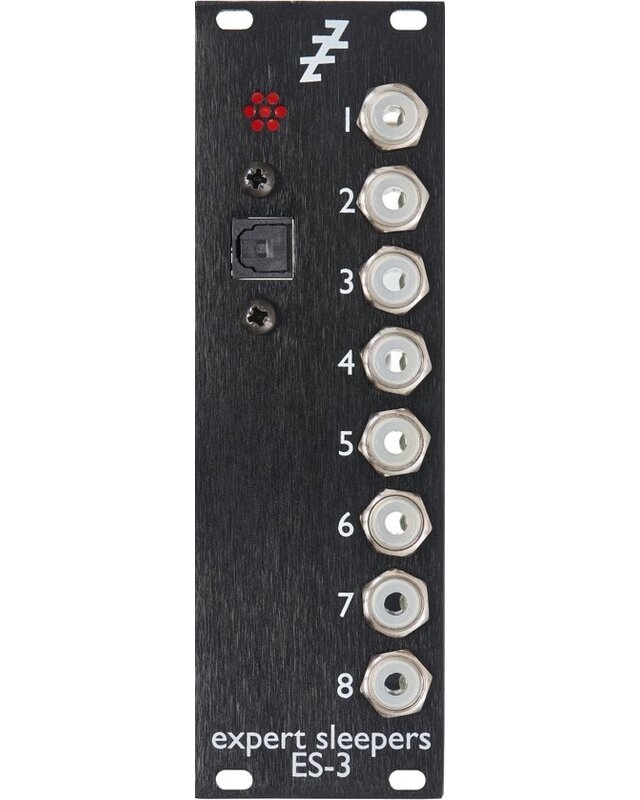

ES-3 Eurorack ADAT Lightpipe/CV Interface (MK4)

Expert Sleepers ES-3 MK4: The Bridge Between DAW and Eurorack

The Expert Sleepers ES-3 MK4 is a DC-coupled ADAT-to-Eurorack interface that allows you to send control voltages (CV) and audio directly from your DAW to your modular system.By utilizing the ADAT Lightpipe connection of your existing audio interface, the ES-3 provides eight high-precision outputs. Whether you need to drive oscillators with sample-accurate timing or transmit complex modulation via software like Silent Way or Bitwig Studio, the ES-3 MK4 remains the industry standard for hybrid modular workflows.

Key Features:

• DC-Coupled Outputs: Suitable for both high-fidelity audio and ultra-stable CV/gate signals.

• ADAT Connectivity: Expands your current interface by 8 channels via a single optical cable.

• High Resolution: 24-bit digital-to-analog conversion ensures pristine signal integrity.

• Illuminated Jacks: LEDs behind the sockets provide immediate visual feedback on output signal strength and polarity.





• MK4 Enhancements: Improved power efficiency and a shallower depth, making it compatible with all rack types including slim skiff cases.

Technical Specifications:

• Width: 8HP

• Depth: 48mm

• Power Draw: +12V: 20mA, -12V: 50mA

• Input: 1x TOSLINK (ADAT Lightpipe)

• Outputs: 8x 3.5mm DC-coupled minijacks
