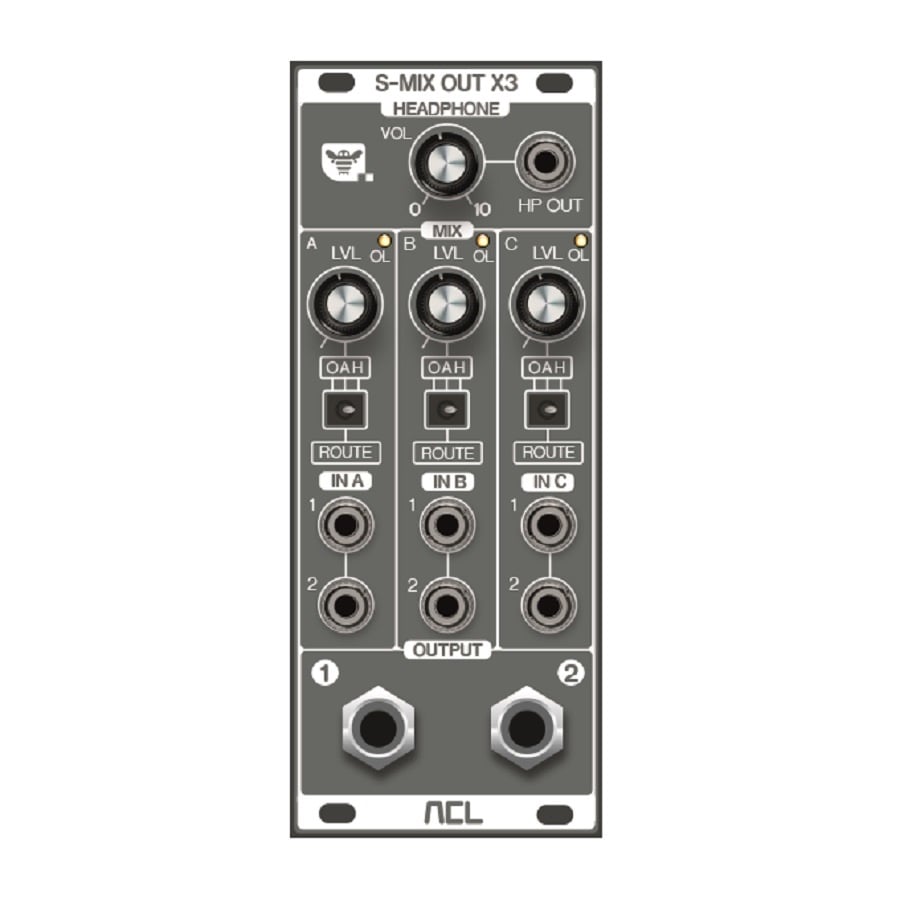

ACL SMIX out x3

ACL SMIX out x3

Regular price €379,34
Sale price Regular price

Product details

Main features

  • Mixingthree stereo Eurorack inputs with independent level controls
  • Outputsservo-balanced quarter-inch stereo line outputs and headphone amplifier
  • Cueingeach input routes to main, headphones or both
  • Monitoringoverload indicators and protected headphone circuitry

Overview

Mix three mono or stereo signals together with gain control into a stereo output and/or to a headphone output with individual gain control

Similarly to our Audio interface module the ACL S-MIX-OUT module is an audio interface module connecting the world of Eurorack with your studio. Unlike our Audio interface module the ACL S-MIX-OUT comprises no inputs for line-level signals and it comes with servo-balanced 1/4" jacks instead of XLR jacks. There is a headphone amplifier, too.

The audio quality is the same as with our Audio Interface module, mostly same or similar circuitry is used here.

S-MIX-OUT offers 3 stereo inputs for modular signals, all inputs normalised to the left channel.

All inputs can be mixed together using attenuator potentiometers.

There is an overload indicator LED for each channel.

The same protection circuitry around the headphone amplifier is built in as is used in our Audio Interface module.

All 3 inputs a routable to either the 1/4" stereo main out, the headphone or both using a 3 positions switch. That way a prelisten bus is easily configured.

Specifications· 4 details

General

HP
10 HP
Functions
I/O and Mixer
Height
3U
Synthesizer form factor
