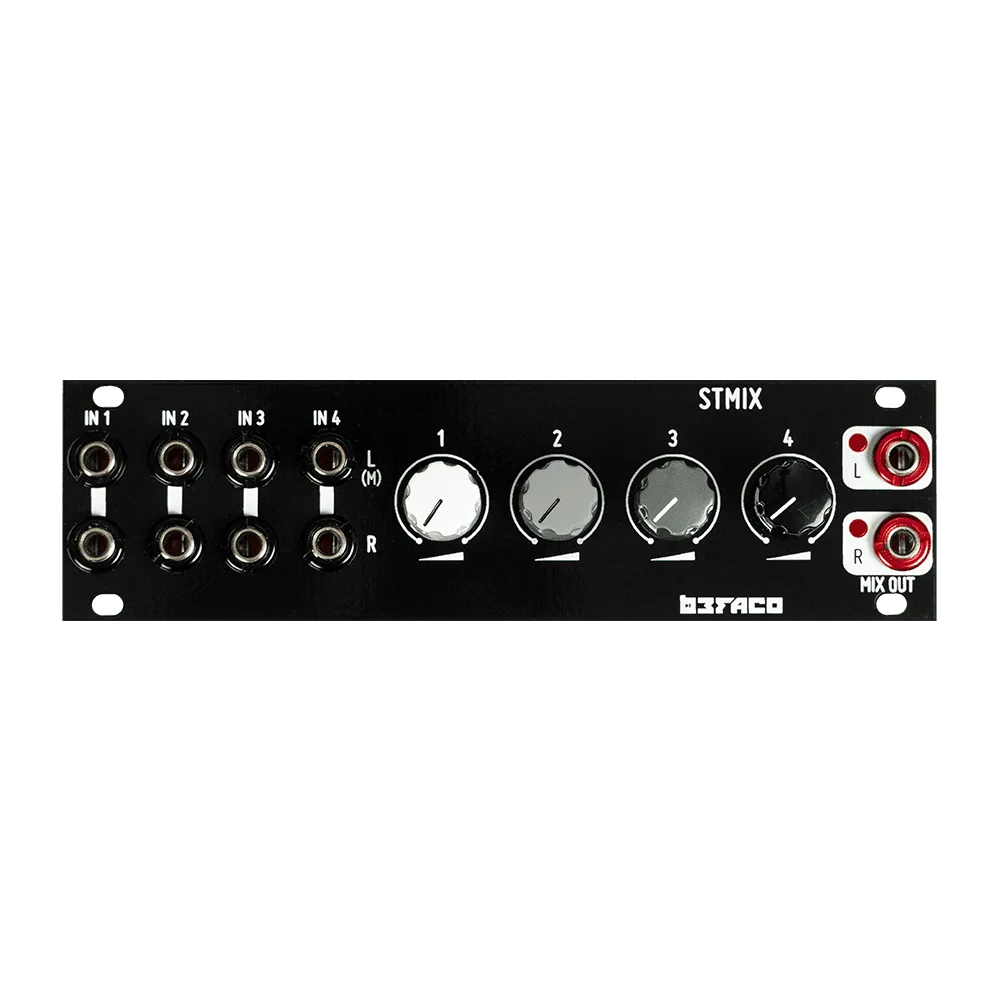

Befaco 1U STMix

Befaco 1U STMix

Regular price €99,00
Sale price Regular price

Product details

Main features

  • Channelsfour stereo inputs with left/right jacks and a volume knob per channel
  • Mono useleft input appears on both sides of the stereo output when right is unpatched
  • Outputstereo main out with clipping LEDs and AC-coupled inputs
  • ExpansionX2 six-pin port links to Befaco Hexmix master section

Overview

The Befaco 1U STMix is a four-channel stereo mixer for the 1U row of a Eurorack case, built in Intellijel 1U format. It can be used on its own to combine stereo or mono sources into one stereo output, or as an expander that adds four stereo channels to Befaco's Hexmix.

  • Four stereo channels with separate left and right inputs and a volume knob per channel
  • Mono-friendly inputs: patch only the left input and the signal also appears on the right output
  • AC-coupled inputs, chosen by Befaco for better audio performance
  • Stereo main output with LEDs that show clipping
  • Hexmix expansion via the X2 six-pin port, which routes the STMix output into the Hexmix master section
  • Heat-treated aluminium panel, with a Pulp Logic panel format available on demand

Because each channel is level-controlled by hand, the STMix suits fixed submixes: collecting stereo effects returns, summing a few voices before the main mixer, or freeing up 3U space by moving basic mixing duties into a 1U tile. At 28 HP and 20 mm deep including the power connector, it fits shallow 1U rows.

When paired with Hexmix, the STMix connects through a six-pin ribbon cable on the back, and its mixed output joins the Hexmix master section. Note that this rear connector is meant for Hexmix and is not compatible with the audio connectors found in Intellijel cases. The module was designed in Barcelona by Pascual Rocher. This listing is for the assembled module.

Specifications· 14 details

Format

Format
Intellijel 1U (Pulp Logic panel on demand)
Width
28 HP
Depth
20 mm including power connector
Panel
Heat-treated aluminium

Inputs & outputs

Inputs
4 stereo channels (left and right per channel), AC-coupled
Outputs
1 stereo main output
Expansion
X2 six-pin connector to Befaco Hexmix

Controls

Level
1 volume knob per channel
Indicators
Output clipping LEDs

Power

Power draw +12V
30 mA

General

Functions
Utility
Height
1U
Instrument material
Aluminum
Synthesizer form factor
