Befaco Chopping Kinky – DIY Kit

Befaco Chopping Kinky – DIY Kit

Regular price €121,00
Sale price Regular price

Product details

Main features

  • Dual wavefolderstwo different folding circuits, one per channel
  • Fold CVattenuverted CV input plus a direct CV input to the VCAs on each channel
  • DC coupledprocesses audio and CV such as LFOs and envelopes
  • Chop outswitches between channels via zero-cross detector or external gate

Overview

This is the DIY kit version of the Befaco Chopping Kinky, an 8 HP Eurorack module with two voltage-controlled wavefolders. It is aimed at modular users who build their own modules and want harmonic shaping for audio plus a way to bend control voltages.

  • Two different folding circuits: each channel folds the waveform in its own way, giving two distinct timbres from one module.
  • Dual CV control of fold amount: each channel has one CV input through an attenuverter and a second that goes straight to the internal VCAs.
  • DC-coupled inputs: fold audio to add harmonics, or reshape LFOs and envelopes as CV.
  • Chop output: switches between channels A and B using a zero-cross detector or an external gate.

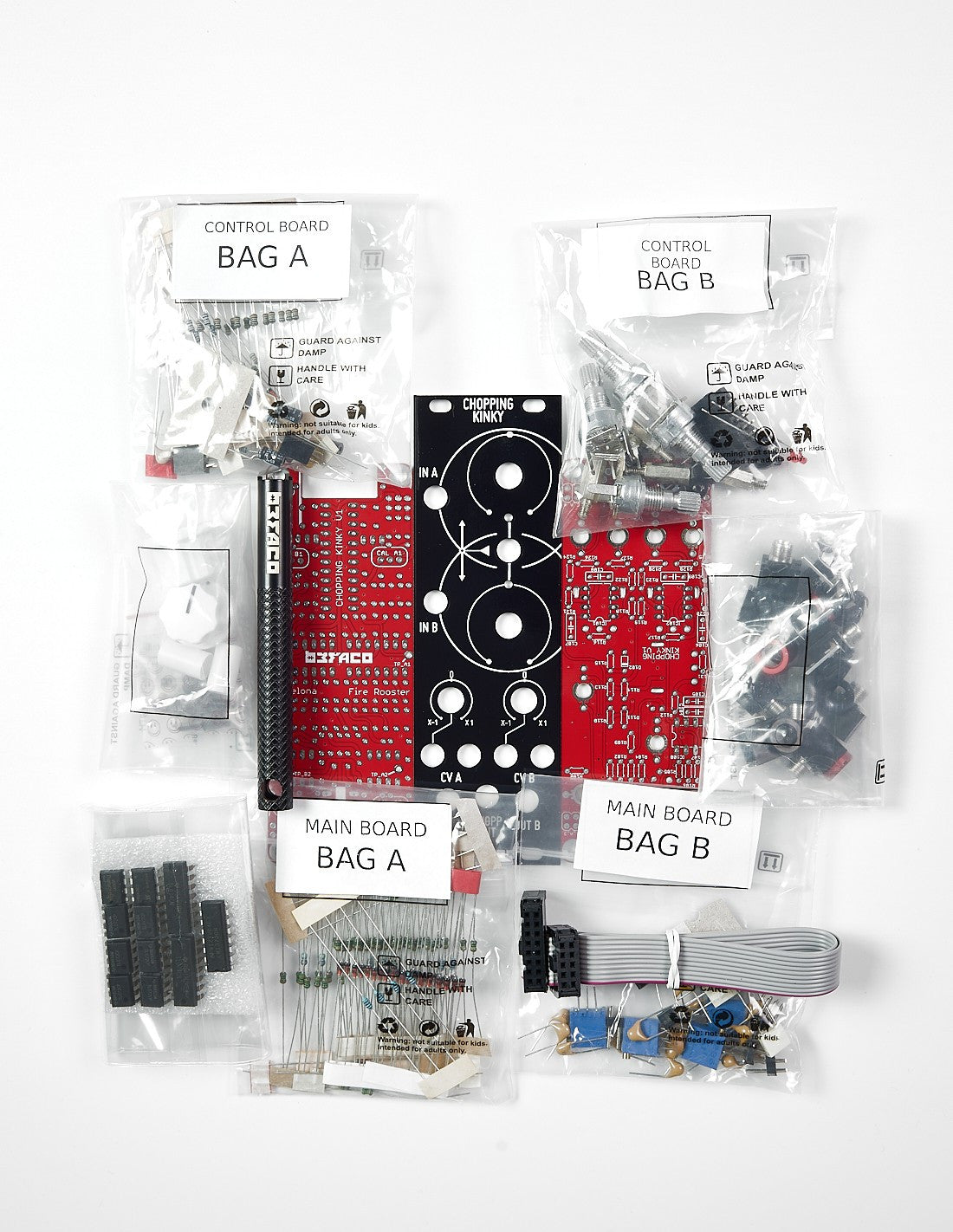

  • Complete kit: all parts for a finished module, plus a power cable and two Befaco Knurlies M3 rack screws.

Wavefolding raises the signal level until it reaches saturation, then folds it back on itself instead of clipping it. The result is a brighter, more complex waveform. A filter removes harmonics; a wavefolder adds them, so the Chop pairs well with simple sine or triangle sources. Because each channel has a manual shape control, an attenuverted CV input and a direct CV input, you can set a base fold amount and then modulate it from two sources at once.

The Chop output adds a further option. With nothing patched to its gate input, a zero-crossing detector compares channel A and selects A or B automatically, which creates hard switching between the two folded signals. Patch a gate and the switching follows your rhythm instead. Channels A and B also have their own separate outputs.

Befaco rates the build as medium difficulty. An assembly manual, schematic, BOM and an interactive build guide are available. The front panel is heat-treated aluminium, and the module is designed in Barcelona.

Specifications· 18 details

Format

Format
Eurorack, DIY kit
Width
8 HP
Weight
244 g
Build difficulty
Medium
Included
All components, power cable, 2 Knurlies M3 rack screws
Reference
DIY015

Inputs & outputs

Inputs
Audio/CV input A and B
CV inputs
Attenuverted CV input and direct CV input per channel
Gate input
Chop channel select
Outputs
Out A, Out B, Chop out

Controls

Shape
Manual control per channel
Attenuverter
One per channel

Power

Power draw +12V
65 mA

General

DIY
Yes
Functions
Effects
Height
3U
Synthesizer form factor
Control voltage or gate connectivity
,

About the brand

Befaco

Barcelona-based maker of open-source Eurorack modules, sold assembled or as DIY kits. Known for experimental voices such as Oneiroi, hands-on build workshops and designs released under a Creative Commons licence.
Origin
ES
Founded
2010
Products
127
