Befaco Kickall

Befaco Kickall

Regular price €218,00
Sale price Regular price

Product details

Main features

  • WaveshaperCV-controllable sine-to-square shaping of the sine oscillator
  • Pitch envelopeTime and Bend knobs set sweep decay and depth
  • Dual VCAenvelope VCA with Decay slider and CV, plus a volume VCA with CV for accents or AM
  • TuningV/Oct Tune input for sequenced basslines or audio-rate FM

Overview

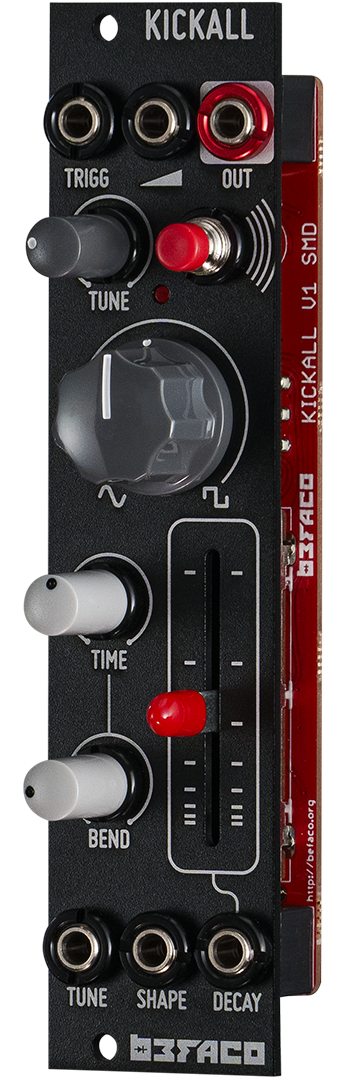

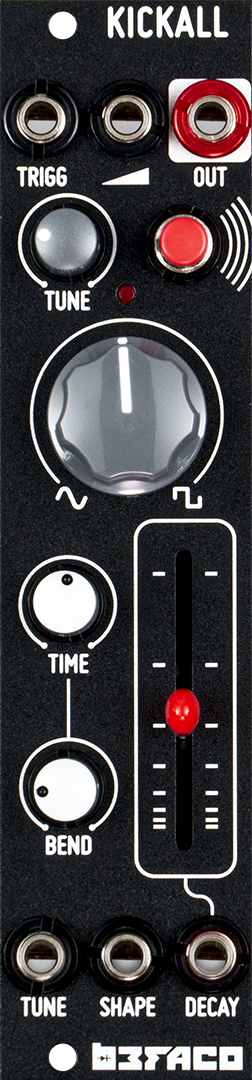

The Befaco Kickall is a 6HP analog bass drum voice for Eurorack. It is built around a classic kick patch and also handles percussion and basslines. It suits modular users who want a complete, pitch-tracking kick in very little rack space.

  • Sine core with waveshaping: a sine oscillator feeds a CV-controllable sine-to-square shaper for anything from a round thump to a harder, buzzier tone.
  • Pitch envelope: Time and Bend knobs set the decay and depth of the pitch sweep.
  • Two VCAs: one follows the volume envelope with a Decay slider and CV. The second sets overall level through its own CV input.
  • V/Oct tuning: the Tune input tracks V/Oct, so a sequencer can play pitched patterns beyond the usual kick range.
  • Single trigger: the button or trigger input fires both envelopes together.

The Time and Bend controls cover a wide range, from deep sub-bass drops to short, snappy percussive hits. Both are manual-only. The Shape and Decay parameters accept CV, so the timbre and tail length can change from hit to hit under sequencer or modulation control.

The second VCA's volume input is useful for accents and dynamics. With nothing patched, it defaults to full volume. You can also feed audio into it for basic amplitude modulation, or into the Tune input for FM-style effects. These options take the Kickall beyond plain kick duty into metallic percussion and modulated bass tones.

The Tune knob spans roughly two octaves, from about A0 to B2. Assembled units leave the factory calibrated to 1V/oct, and a trimmer lets you recalibrate. The front panel is heat-treated aluminium. The module was designed by Jaume Olivé and Befaco in Barcelona.

Specifications· 23 details

Format

Width
6 HP
Depth
20 mm (assembled, incl. power connector)
Front panel
Heat-treated aluminium

Inputs & outputs

Volume CV
0–10V
Trigger input
Threshold 3.5V
Tune CV
V/Oct
Shape CV
0–10V
Decay CV
±10V
Output
Out (main audio output)

Controls

Tune
Knob, approx. A0 to B2
Trigger
Button
Shape
Knob, sine to square
Time
Knob, pitch envelope decay
Bend
Knob, pitch envelope amount
Decay
Slider, VCA envelope decay

Power

Power draw +12V
26 mA

General

Functions
Drum and Sound sources
Height
3U
Synthesis method
Instrument material
Aluminum
Polyphony
Synthesizer form factor
Control voltage or gate connectivity
,
