Befaco VCMC

Befaco VCMC

Regular price €327,00
Sale price Regular price

Product details

Main features

  • CV to MIDI10 CV and 8 gate inputs converted to CC, NRPN, notes, clock and more
  • Control surface8 faders and 8 push buttons, each paired with its own CV or gate input
  • Note modesV/Oct to MIDI notes with polyphonic mode, chord mode and scale quantising
  • Outputsclass-compliant USB MIDI and DIN-5 MIDI out

Overview

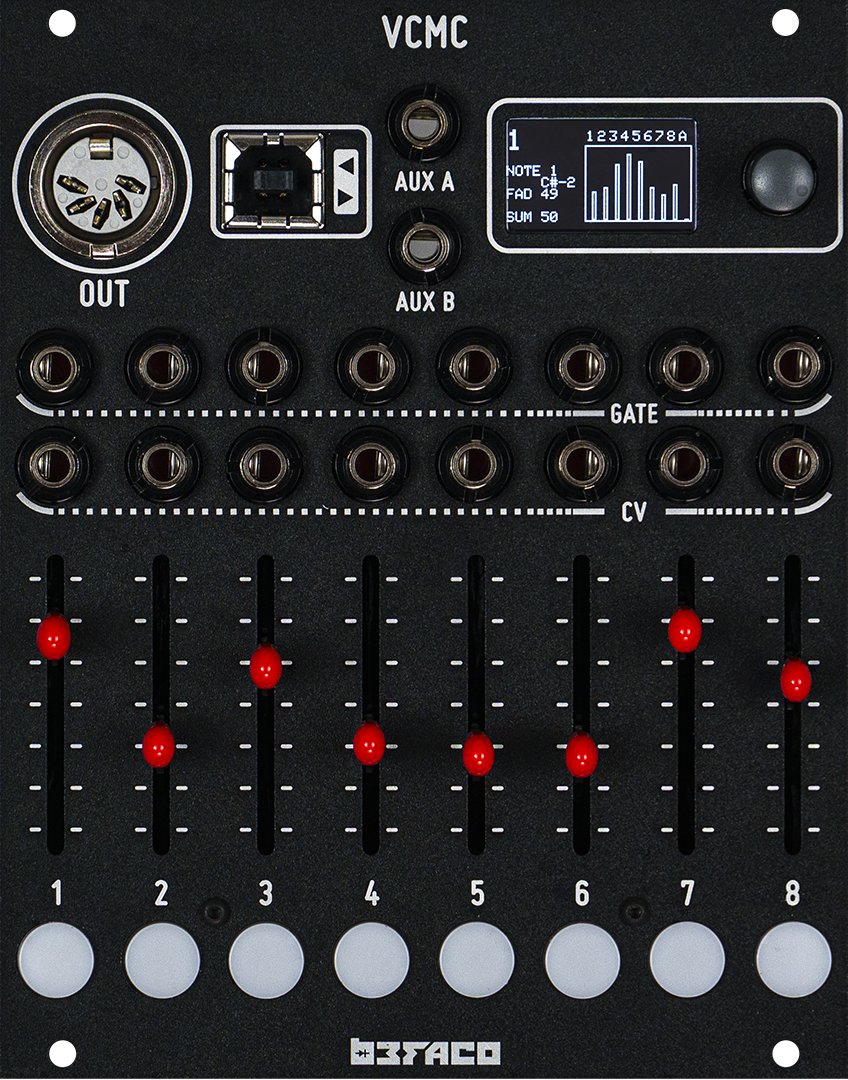

The Befaco VCMC is a 20 HP Eurorack module that works as a voltage-controlled MIDI controller. It is for modular users who want to drive external synths, a DAW or software instruments from the rack. It converts CV, gates and V/Oct pitch into MIDI, and its eight faders and eight push buttons also work as a regular MIDI control surface.

  • Eight faders and eight buttons, each with its own CV or gate input for external automation
  • 10 CV inputs and 8 gate inputs, including two auxiliary CV inputs (Aux A and Aux B)
  • Class-compliant USB MIDI and DIN-5 MIDI outputs
  • Flexible mapping to CC, 14-bit CC, NRPN, notes, program change, channel pressure, clock and start/stop
  • V/Oct-to-MIDI note conversion with polyphonic mode, chord mode and scale quantising
  • OLED screen and rotary encoder for editing, plus four internal memory slots

Each CV input sends a MIDI value that follows the incoming voltage. It can run on its own, or be paired with its fader so the fader either adds to the CV or acts as an attenuator on it. Pair a CV input with its gate input and the VCMC turns V/Oct pitch into MIDI notes. You can set each CV input to 0–10 V, 0–5 V or -5/+5 V and calibrate it individually, so it handles unipolar envelopes and bipolar LFOs alike.

The note features go beyond simple pitch conversion. Chord mode lets you choose chord type, voicing and presets, and adds strum and humanize settings. Quantising can follow Lydian, Major/Ionian, Mixolydian, Dorian, Minor or Phrygian scales, and velocity can be set per note. The gates can also trigger a MIDI panic function.

Configurations are stored in internal memory and can be backed up via SysEx. Befaco also offers an online web editor and publishes the firmware on GitHub. The front panel is heat-treated aluminium, and the module is designed and assembled in Barcelona.

Specifications· 18 details

Format

Width
20 HP
Depth
26 mm (including power connector)
Front panel
Heat-treated aluminium

Inputs & outputs

CV inputs
10
Gate inputs
8
MIDI outputs
USB MIDI (class compliant), DIN-5
CV input range
0–10 V, 0–5 V or -5/+5 V (selectable)
Auxiliary CV inputs
Aux A, Aux B

Controls

Faders
8
Push buttons
8
Editing
Rotary encoder and OLED screen
Memory
4 save slots

Power

Power draw +12V
64 mA

General

Functions
Controller and Midi & Clock
Height
3U
Instrument material
Aluminum
Synthesizer form factor
Control voltage or gate connectivity
,
