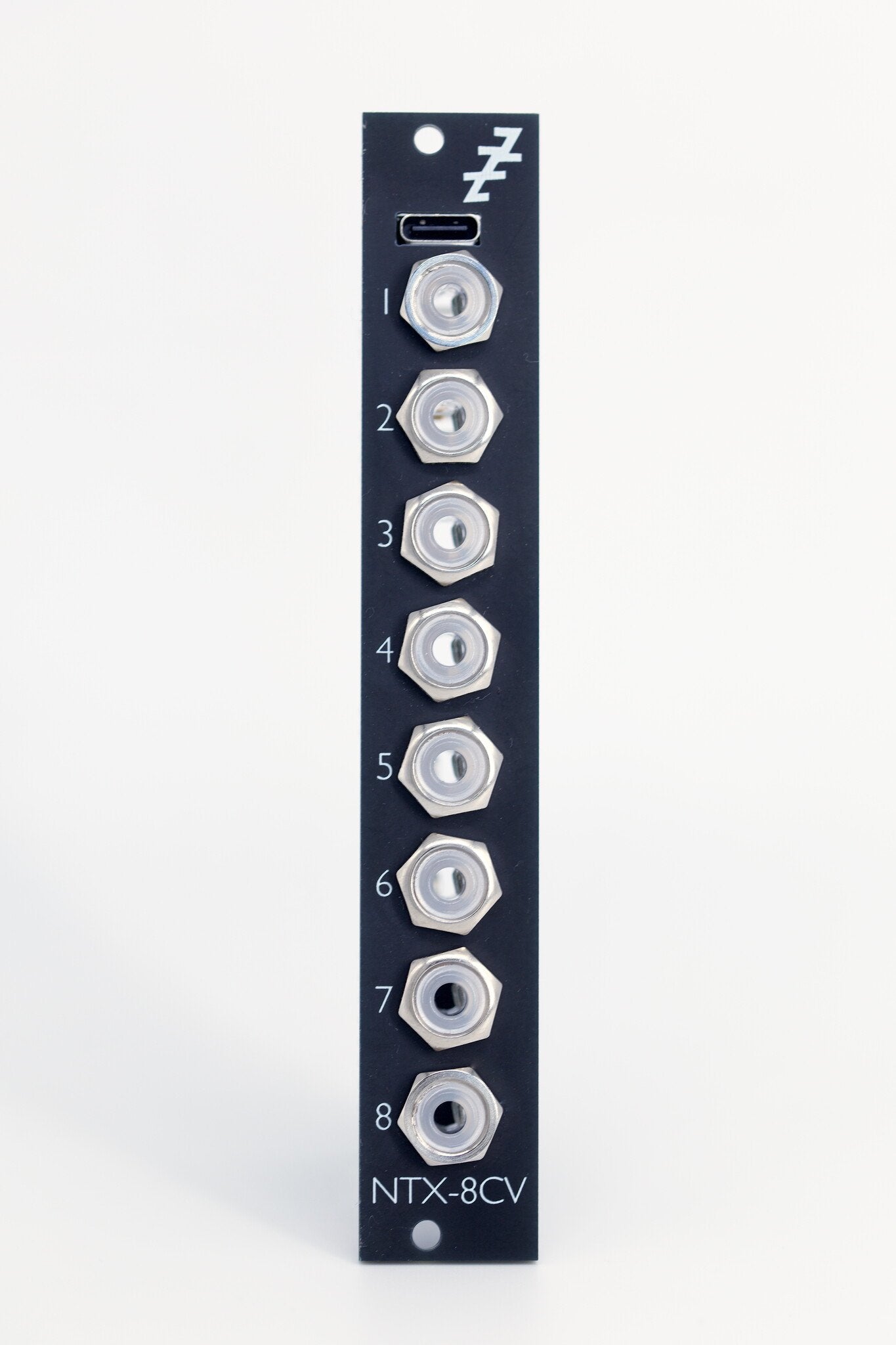

Expert Sleepers NTX-8CV

Expert Sleepers NTX-8CV

Regular price €161,16
Sale price Regular price

Product details

Main features

  • ConversionUSB MIDI-to-CV with host/device USB port
  • Interfaceeight-channel DC-coupled USB audio/CV output
  • Expansionadds eight outputs to Disting NT
  • Format4 HP Eurorack with USB-C

Overview

The NTX-8CV is a 4HP Eurorack module with three distinct purposes.



  • USB MIDI to CV converter

The NTX-8CV offers MIDI/CV conversion, using a design based on our best-in-class FH-2, but in a more compact form factor. Its dual role USB port allows the NTX-8CV to operate both as a USB MIDI Class compliant device (e.g. connected to a computer or tablet) and as a USB host (so you can plug a USB MIDI controller straight in).



  • USB audio/CV interface

The NTX-8CV operates as a USB Audio Class compliant device, offering 8 channels of DC coupled audio or CV outputs (and so is compatible with Silent Way, CV Tools, Bitwig Studio etc.).



  • disting NT output expander

The NTX-8CV connects directly to a disting NT, adding 8 CV outputs. Additional NTX-8CV units can be daisy-chained for up to 64 extra CV outputs (on top of the NT's own 8). The output ports have exactly the same technical specifications as those on the disting NT itself.



Specifications

  • Panel width: 4HP
  • Module depth: 36mm
  • Current draw: 74mA on the +12V rail, 17mA on the -12V rail (plus any current drawn by an attached USB device)
  • Outputs: 8, DC coupled
  • USB: Type C, Dual Role (host or device)
  • PCB headers: 1. Input from disting 2. NT Output to further expanders

Specifications· 6 details

General

HP
4 HP
Functions
Utility and Midi & Clock
Height
3U
Instrument material
Metal
Synthesizer form factor
Control voltage or gate connectivity
