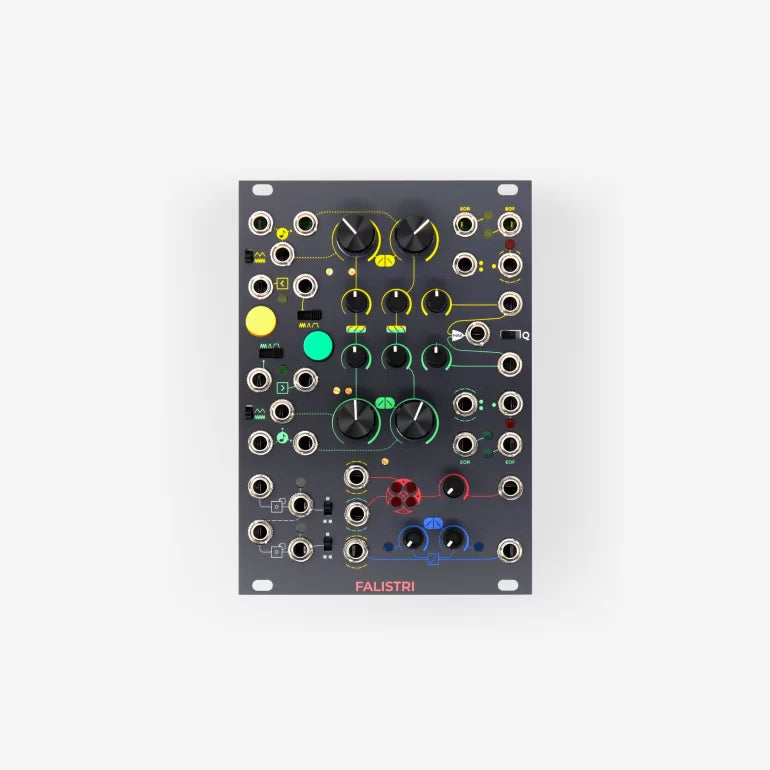

Name: Frap Tools Falistri Movement Manager
Brand: Frap Tools
SKU: 210000001867
Price: 459.00 EUR
Availability: InStock

Frap Tools Falistri Movement Manager

Frap Tools

•

Modular Envelope & Function Generators

SKU: 210000001867

18HP 3U

€459,00

Available • In Warehouse

3–7 days

Movement Manager

falistri / faˈlistri / s.f., plural [Modenese dialect, probably from Latin fauilla, ‘spark’] – ‘sparks’. One cannot think about a lively bonfire without sparks crackling and dancing through the air. ‘Falistri’ is what lights up your patch and takes care of how it moves, through sparks, motions, and crackles.

The module can be divided into two big parts: in the upper two-thirds of the panel take place two specular function generators, while the lower third is composed of a dual cascaded frequency divider, a linear slew limiter, and a four-quadrant multiplier.

Size	18 HP
Depth	38 mm
Current draw	170 mA @ +12 V 170 mA @ -12 V
Recommended warmup time	30 min
CV input impedance	> 90 KΩ
Trig/Gate input impedance	> 90 KΩ
Input trigger amplitude threshold (Trig/Gate input)	> 1.5 V
Input trigger maximum frequency at 1.5 V (Trig/Gate input)	> 6 KHz
Input trigger minimum pulse period at 1.5 V (Trig/Gate input)	< 80 μs
Force Loop input impedance	> 50 KΩ
Input trigger amplitude threshold (Force Loop input)	> 3 V
Input trigger maximum frequency at 3 V (Force Loop input)	> 6 KHz
Input trigger minimum pulse period at 3 V (Force Loop input)	< 80 μs
Single stage (Rise or Fall) with long times	From ~ 0.9 ms to ~ 10 s
Complete cycle with long times	From ~ 1.9 ms to ~ 20 s From ~ 520 Hz to ~ 0.05 Hz
Complete cycle with short times	From ~ 0.16 ms to ~ 1.5 s From ~ 6.1 KHz to ~ 0.67 Hz
Generator voltage output unipolar amplitude	> 10 V
Generator voltage output bipolar amplitude	> ±5 V
Generator voltage output unipolar offset (in Rest stage)	< 35 mV
Generator voltage output impedance	> 100 Ω
Waveshapers amplitude tolerance (e.g. overshoot)	< 1 %
Generator V/oct tracking tolerance (audible range)	< ±5 ȼ
MAX output impedance	> 100 Ω
MAX output amplitude	> 10 V
Generator gate output offset	± 20 mV
Generator EOF output minimum positive pulse period	1 ms
Generator gate outputs impedance	> 220 Ω
Generator gate outputs amplitude	> 3 V
Frequency divider input maximum trigger frequency (at 3V)	40 KHz
Frequency divider minimum input pulse period	< 10 μs
Frequency divider unipolar output amplitude	~ 9.5 V
Frequency divider bipolar output amplitude	> ±4.5 V
Frequency divider output offset	< 50 to < 100 mV
Frequency divider input impedance	> 90 KΩ
Frequency divider output impedance	> 220 Ω
4QM dynamic range	~ 78 dB
4QM residual THD+N	~ 0.015
4QM maximum allowable gain	~ 6.5 dB
4QM high frequency roll-off	36 KHz
4QM input impedance	> 90 KΩ
4QM output impedance	> 100 Ω
Slew Limiter minimum slew rate	1 to 1.25 V/ms
Slew Limiter maximum slew rate	~ 0.6 V/s
Slew limiter input impedance	> 28 KΩ
Slew limiter output impedance	> 100 Ω

Manual you can find here: MANUAL
