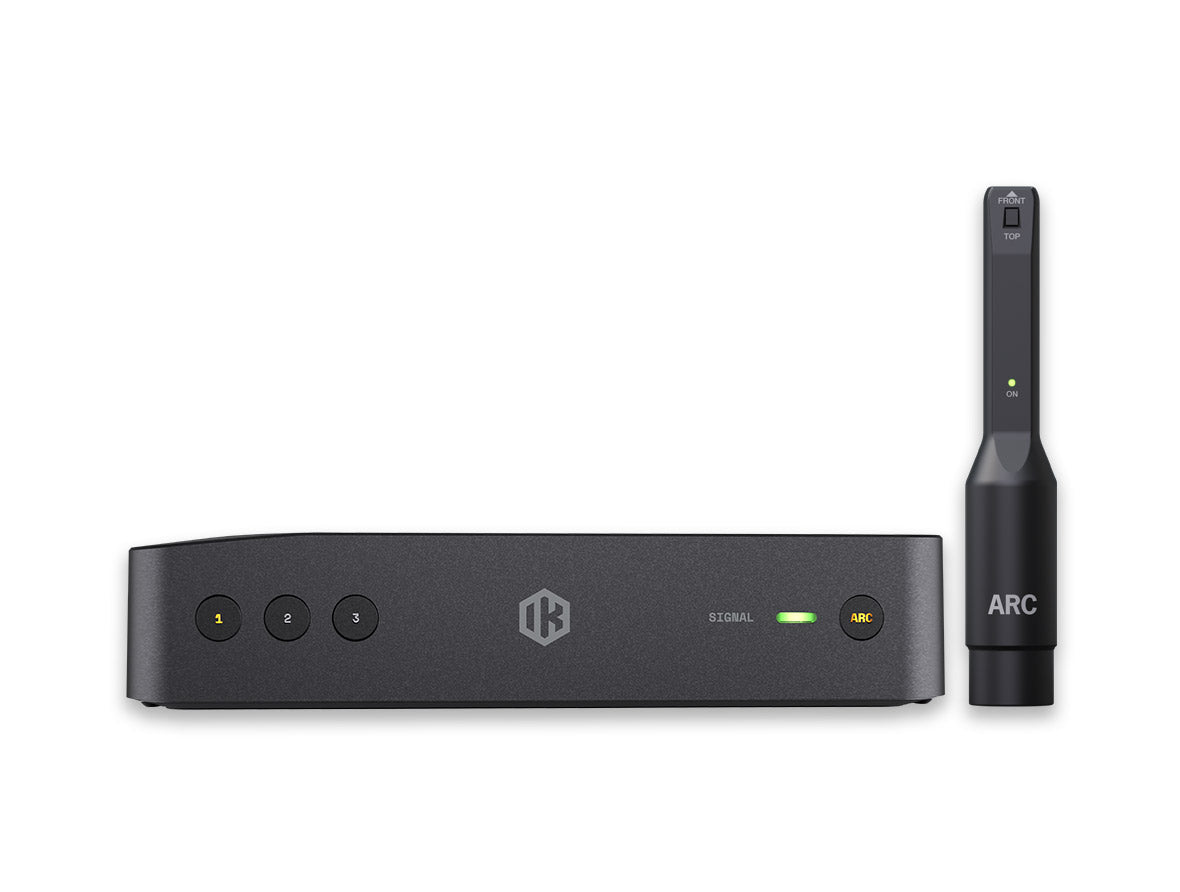

IK Multimedia ARC Studio+ Room Correction Processor

IK Multimedia ARC Studio+ Room Correction Processor

Regular price
Sale price €399,00 Regular price €429,00

Product details

Main features

  • CalibrationFront-panel calibration with the included ARC measurement mic, no computer needed
  • Subwoofer managementAuto sub detection with gain, crossover, phase and delay alignment for 2.1
  • ScenesThree front-panel Scenes store profile, speaker routing, sub on/off and input selection
  • ARC X software7- and 21-point 3D measurement, target-curve editing and virtual speakers

Overview

The IK Multimedia ARC Studio+ is a standalone hardware processor for room and subwoofer correction. It sits between your playback source and your monitors, so correction runs outside the DAW with no plug-in involved. It suits dedicated studios, small writing rooms, hybrid rigs and temporary setups, and works whether you mix in the box, through outboard gear or from hardware synths.

  • Computer-free calibration: plug the included ARC measurement mic into the dedicated calibration input and start measuring from the front panel
  • ARC X software included: adds 7- and 21-point 3D room measurement, target-curve editing, profile management and virtual speakers for translation checks
  • Subwoofer management: detects a connected sub automatically and aligns gain, crossover, phase and delay for stereo or 2.1 systems, with any brand of monitors and sub
  • Three Scenes: front-panel buttons recall a calibration profile, speaker routing, sub on/off and input selection
  • Analog and digital I/O: balanced XLR/TRS combo inputs, XLR monitor outputs, a dedicated sub output, optical S/PDIF and USB-C audio

Because the processing lives in the unit, it does not depend on your DAW, operating system or playback source. That makes it equally useful for mixing, mastering, video editing, streaming and everyday listening. Correction covers 20 Hz to 20 kHz, and profiles stay stored in the hardware, so correction keeps running after ARC X is closed or the computer is disconnected.

Scenes make it quick to switch between listening situations. You might keep your main mix position on one button, a second position such as the sofa on another, and a translation-check curve on the third, for example a car, consumer or club tilt, a mono check or a band-limited response. Through ARC X you can also set the upper and lower limits of the corrected range.

Over optical or USB-C, the signal is corrected in the digital domain without an extra A/D and D/A conversion step. Two processing modes let you trade latency for phase behaviour: Natural Phase runs at 1.4 ms, which works for tracking and playing, while Linear Phase runs at 42 ms for critical listening. The unit uses 32-bit conversion at up to 192 kHz and has a relay hard bypass. It comes with the ARC microphone, a mic clamp and pouch, a USB cable and a power supply.

Specifications· 24 details

General

Correction range
20 Hz to 20 kHz
Conversion resolution
32-bit
Maximum sample rate
192.0 kHz
Frequency response
2 Hz to 87.0 kHz (-2.0 dB)
Dynamic range
120 dB (A-weighted)
THD (1 kHz, -1 dBFS)
0.00011% (-119.4 dB)
THD+N (1 kHz, -1 dBFS)
0.00023% (-112.7 dB)
Channel crosstalk (1 kHz)
-134.0 dB
Maximum phase deviation
+7° at 20 Hz, +16° at 22 kHz
Input impedance (balanced)
20 kOhm
Output impedance (balanced)
50 Ohm
Maximum input level
+18 dBu
Maximum output level
+18 dBu
Latency, Natural Phase
1.4 ms
Latency, Linear Phase
42 ms
Included
ARC Studio+, ARC microphone, mic clamp, mic pouch, USB cable, power supply

Connections

Inputs
2 x balanced XLR/TRS combo
Monitor outputs
Balanced XLR
Subwoofer output
Dedicated sub output
Digital
USB-C audio, optical S/PDIF in and out
Calibration input
Dedicated input for ARC measurement mic

Power

Power supply
5V DC, 2.5A, center positive

Dimensions & weight

Dimensions
19.7 x 12.2 x 4.4 cm (7.76 x 4.80 x 1.73 in)
Weight
625 g (1.38 lb)
