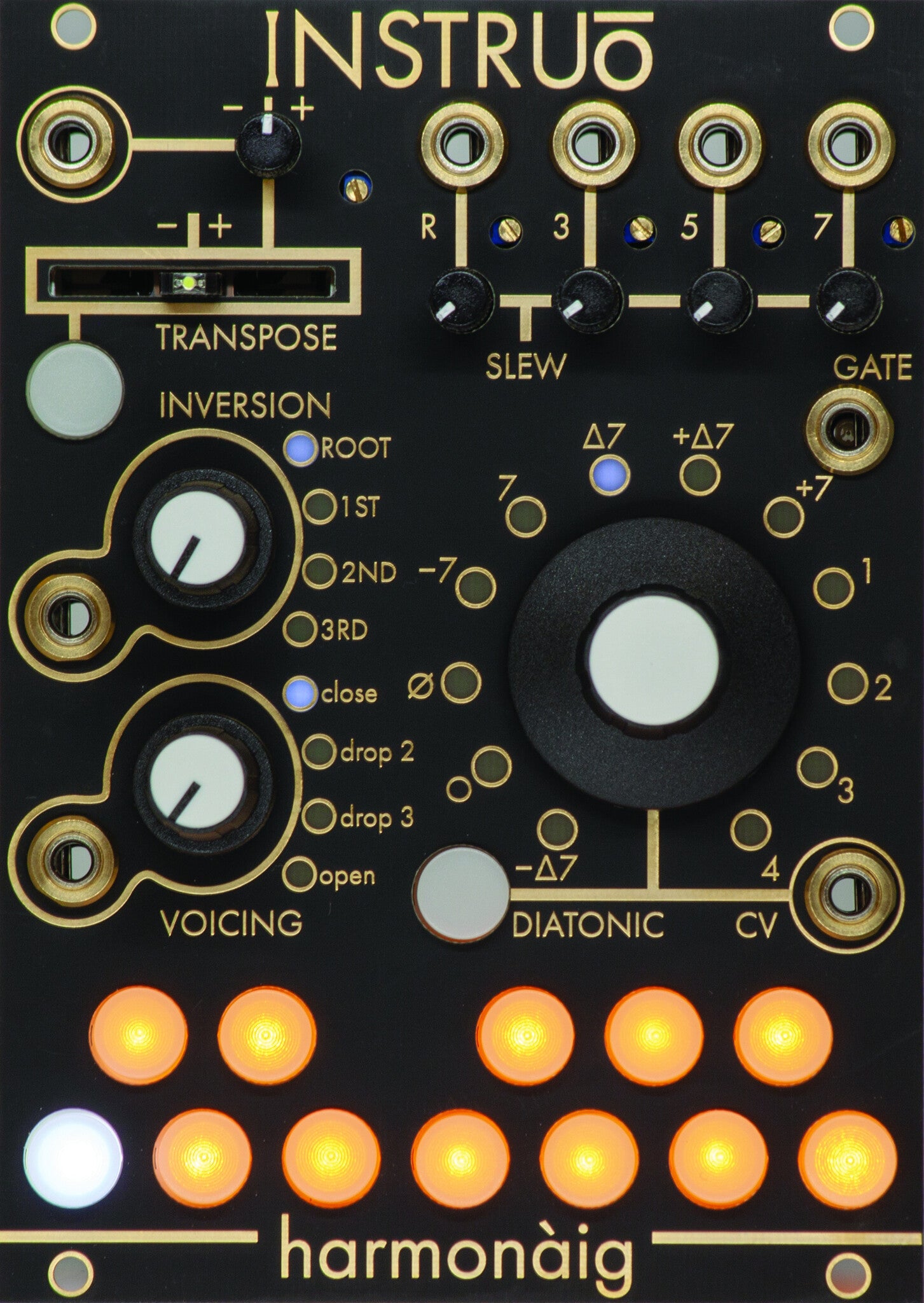

Instruo harmonàig

Instruo harmonàig

Regular price €369,00
Sale price Regular price

Product details

Main features

  • Harmonyfour-voice CV chord quantizer
  • Outputsfour chord tones with individual analogue slew
  • ControlCV chord quality, inversion and voicing
  • Range±10 V input/output for 20-octave operation

Overview

The harmonàig is a four voice voltage quantiser designed with intuitive harmonic capabilities. It brings the possibility of composing and performing chord progressions, and harmonising in a polyphonic manner, to what is traditionally a monophonic instrument. No deep understanding of music theory is needed!

harmonàig | noun (musical tone) an overtone accompanying a fundamental tone at a fixed interval, the combination of simultaneously sounded musical notes to produce a pleasing effect

Size

18HP
Depth: 27mm

Power

+12V: 100mA
–12V: 10mA

Features

  •  +/–10V (20 octave) CV input range with attenuverter
  • +/–10V (20 octave) CV output range for all 4 chord tones
  • Analogue Slew (not capitalised) limiter per CV output
  • Gate/Trigger output for Performance and Quantizer modes respectively
  • Large horizontal button keyboard for ease of control and performance
  • Automatic, manual or CV selectable chord qualities
  • -∆7 (minor major 7)
  • O (diminished 7)
  • Ø (minor 7♭5)
  • -7 (minor 7)
  • 7 (dominant 7)
  • ∆7 (major 7)
  • +∆7 (augmented major 7)
  • +7 (augmented 7)
  • Four user definable chord voicings (1, 2, 3, 4)
  • Independant CV controllable chord inversion and voicings
  • Pre-quantization transposition and global offset transposition

Specifications· 5 details

General

HP
18 HP
Functions
Utility
Height
3U
Synthesizer form factor
Control voltage or gate connectivity
, ,

About the brand

Instruo

Instruō translates the organic fluidity of acoustic instruments into complex voltage architectures, creating sculptural circuits that sing with rich, harmonic authority and breathtaking clarity.
Origin
GB
Founded
2017
Products
36
