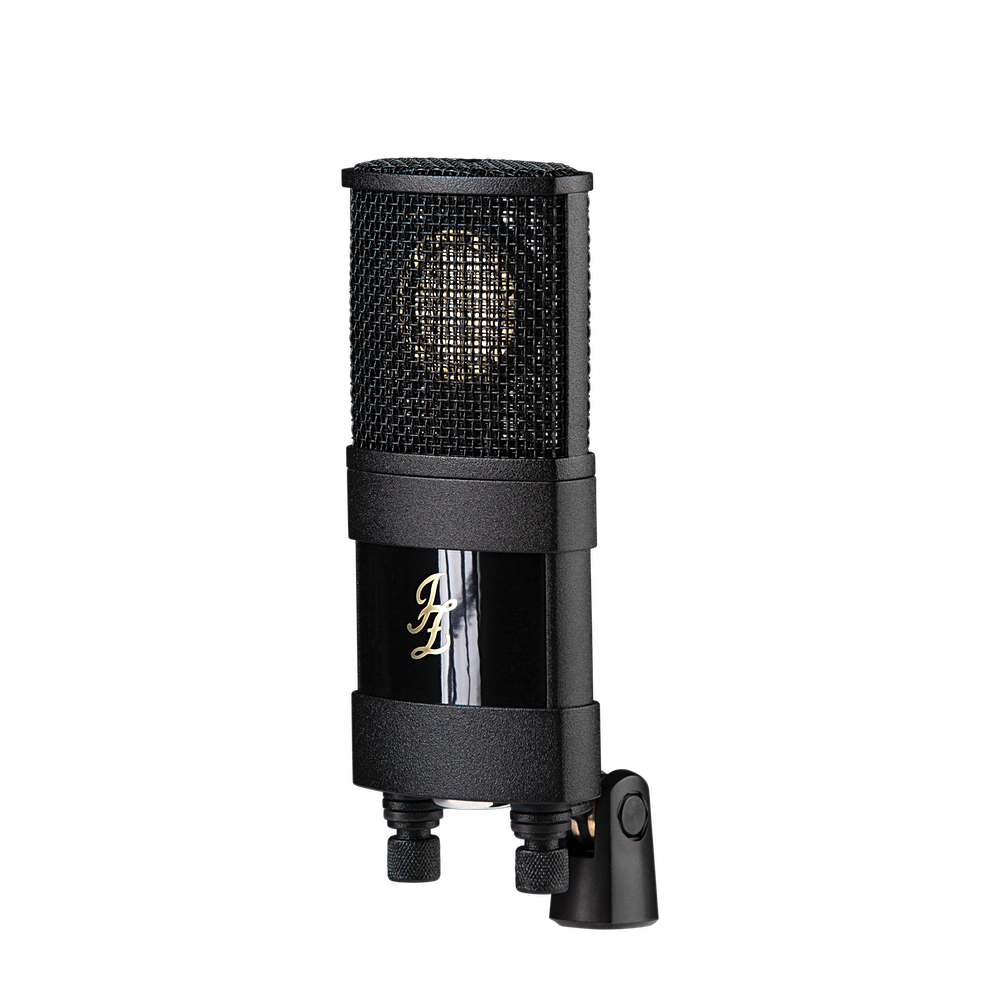

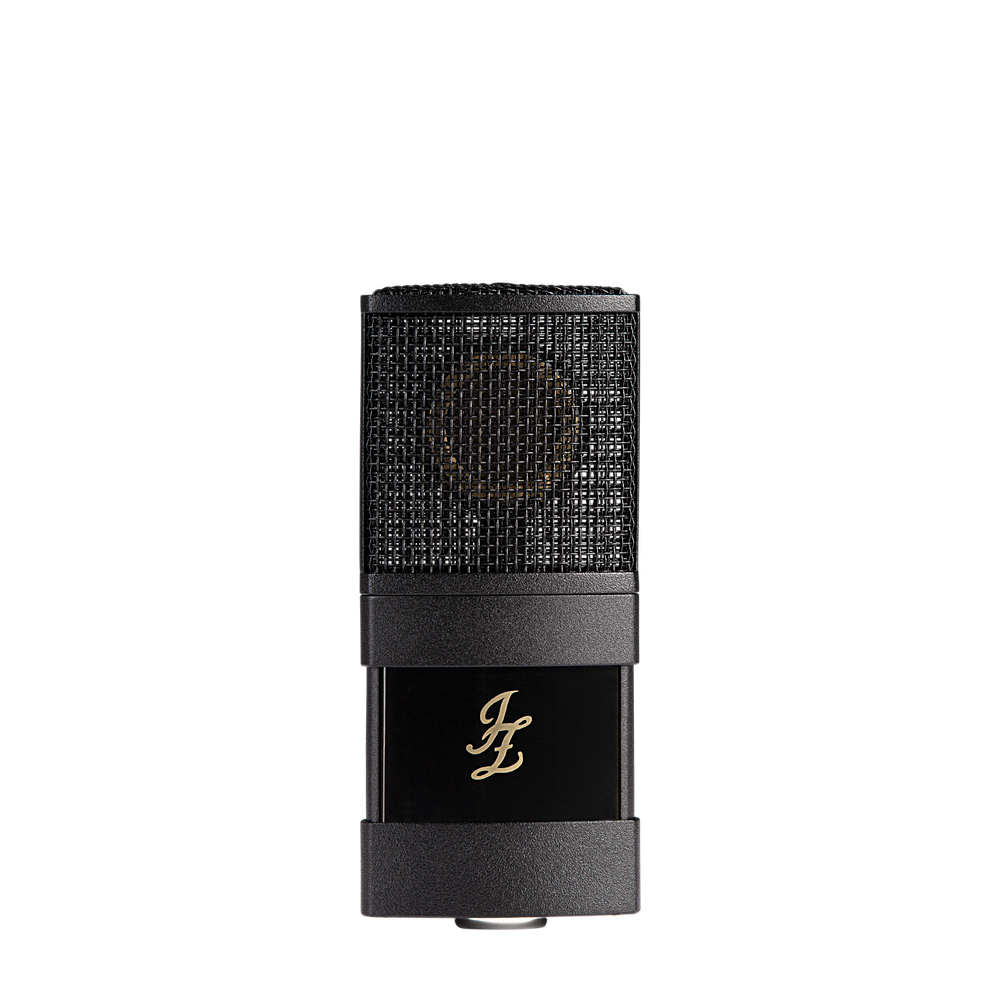

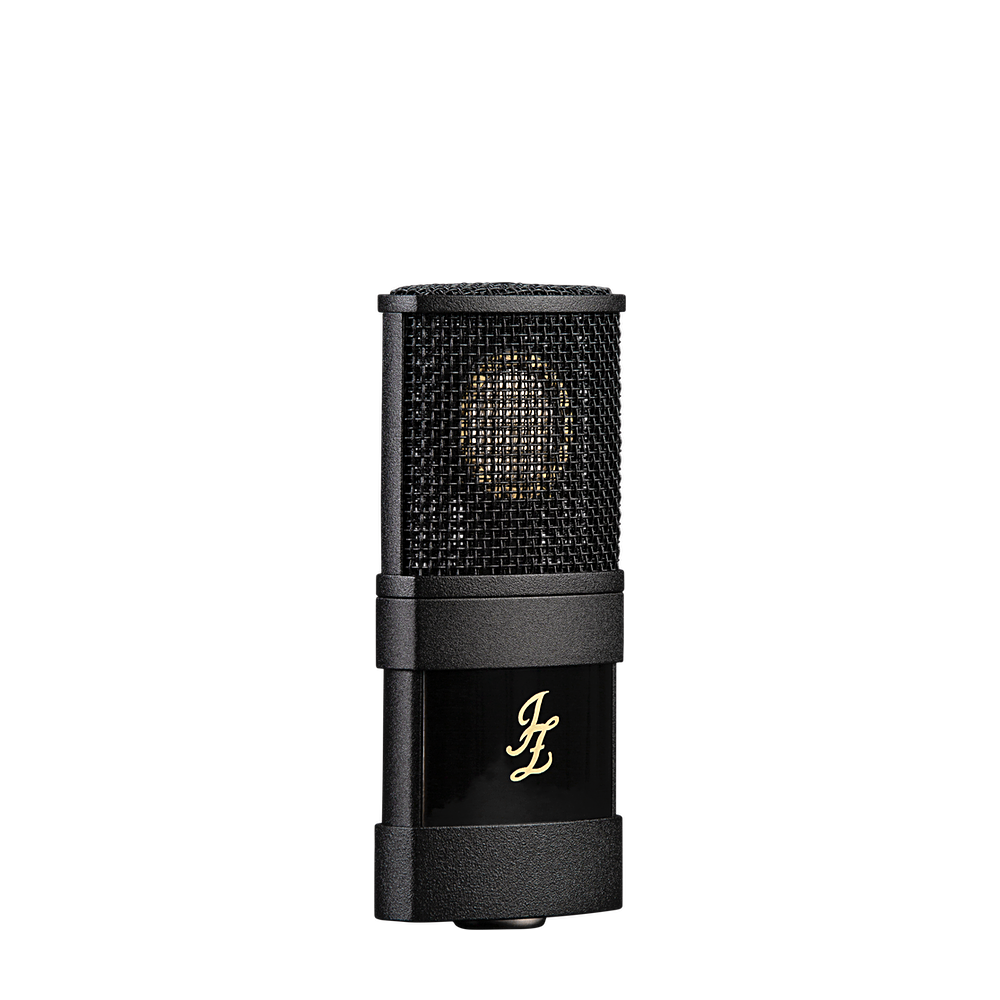

JZ Microphones Vintage 11

The JZ Microphones V11 Microphone provides the creamy dark sound of a vintage ribbon microphone with the detail of a large diaphargm condenser, making it a unique tonal mic for adding a richness to any brighter or harsh sound sources.

The number 11 stands for 2011 as reference year when a new classic microphone has been created. Vintage 11 is dedicated for everyone who loves recording in the highest quality possible and wants something better than all known studio standards. The Vintage 11 even has a budget-friendly price. With the open detailed presences of JZ's Golden Drop Capsule Technology, and the dark ribbon like character of the mic, the V11 is great on bright sound sources, like acoustic guitars, drum overheads, stringed instruments, and bright or harsh vocals.

JZ Microphones has teamed up with Rycote to offer a unique shock mount for their Vintage Series Microphones. The JZ Microphones Vintage Series Shockmount can be purchased HERE, to provide superior isolation and stability for your Vintage Series mic!

JZ Microphones V11 Microphone Features

• Designed to deliver well-balanced, super rich sound for warm yet transparent and clear recordings in numerous applications.
• Large diaphragm true electrostatic Golden Drop™ capsule provides crystal clear and transparent sound without harshness.
• Class A discrete electronics for maximum performance, durability and extremely low self-noise.
• Extremely low self-noise
• Built by hand, using only the best, most carefully selected electronic components, each and every JZ Microphones product allow you to fully capture the very essence of the performance.
• Advanced shock-mount technology will kill all unnecessary vibrations and keep the signal untouched giving you the best recording experience.

JZ Microphones V11 Microphone Specifications

• Transducer type: Electrostatic
• Operating principal: Pressure gradient
• Diaphragms active diameter: 27 mm
• Frequency range: 20 Hz to 20 kHz
• Polar pattern: Cardioid
• Output impedance: 50 ohms
• Rated load impedance: 1000 ohms
• Suggested load impedance: >500 ohms
• Sensitivity at 1000 Hz into 1000 ohms load: 22 mV/Pa
• S/N Ratio CCIR 468-3 weighted: 76.5 dB
• S/N Ratio DIN/IEC 651 A-weighted: 87.5 dB-A
• Equivalent noise level DIN/IEC A-weighted: 6,5 dB-A
• Maximum SPL for 0.5% THD at 1000 ohm load: 134 dB
• Dynamic range of the microphone preamplifier: 128 dB
• Phantom powering voltage on pins 2 & 3 of XLR: +48 V (+/-4 V)
• Current consumption:
• Output connector: 3-pin XLR male, gold plated contacts
• Signal polarity: Positive toward pressure on a diaphragm produces positive polarity voltage on XLR pin #2 relatively to pin #3

JZ Microphones V11 Microphone Includes

• JZ Microphones V11 Microphone
• Swivel Mount
• Storage Case
• 5 Year Warranty
