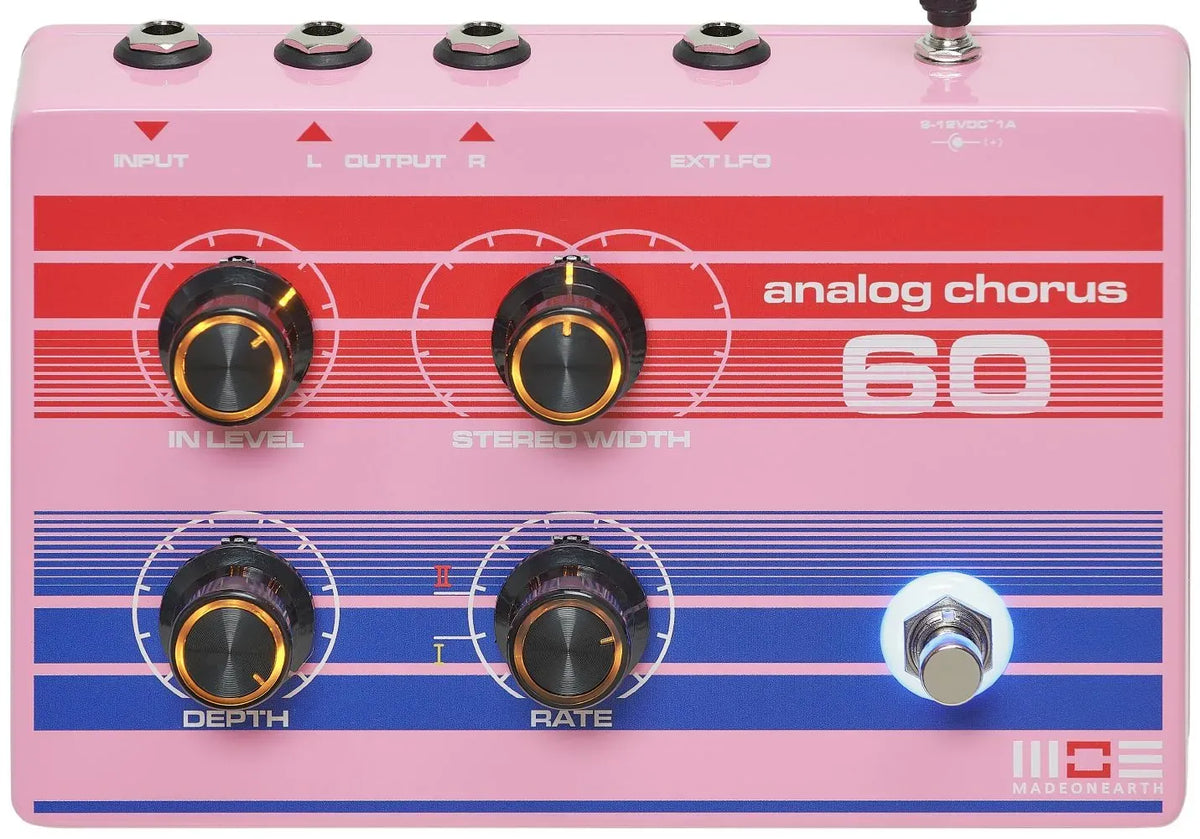

MadeOnEarth Analog Chorus 60 Chorus Pedal

MadeOnEarth Analog Chorus 60 Chorus Pedal

Regular price €549,00
Sale price Regular price

Product details

Main features

  • Circuitbased on the Roland Juno-60 chorus, with MN3009 and MN3101 BBD chips
  • Controlsvariable rate, modulation depth, stereo width and input gain
  • CV inputexternal modulation replaces the internal LFO
  • Outputsmono input to two stereo TS outputs

Overview

The MadeOnEarth Analog Chorus 60 is an analog chorus pedal that recreates the built-in chorus circuit of the Roland Juno-60 as a stand-alone effect. It is aimed at synth players who want that classic Juno chorus on any instrument, and its adjustable input gain also suits guitar signals.

  • Juno-60 circuit: based on the original chorus circuit, using two Xvive MN3009 and two Panasonic MN3101 chips with 2SC1815, 2SA1015 and 2SK30A-GR transistors
  • Continuous control: knobs for rate, modulation depth and stereo width replace the original's fixed chorus modes
  • Original settings marked: the Juno rates are printed around the rate knob so you can dial them back in
  • External CV input: takes over from the internal LFO, so an LFO, envelope or sample-and-hold source can drive the modulation
  • Stereo outputs: one mono input feeds two outputs
  • Build: hand-built in an aluminium case with UV printing and Alpha potentiometers

Where the Juno-60 only offers its preset chorus buttons, this pedal lets you move freely between and beyond those settings, from slow, wide ensemble movement to faster, deeper modulation. Patching an envelope or other CV source into the external input ties the chorus motion to your playing or to the rest of a modular or synth setup. The pedal runs from a 9V to 12V DC centre-positive supply, which is not included.

Specifications· 15 details

General

Effect type
Analog chorus (Juno-60 circuit)
BBD chips
2× Xvive MN3009, 2× Panasonic MN3101
Transistors
2SC1815, 2SA1015, 2SK30A-GR
Enclosure
Aluminium, UV printed
Potentiometers
Alpha
Power source
Guitar pedal I/O configuration
Mono in / Stereo out

Connections

Input
1× TS mono
Outputs
2× TS stereo
CV input
1× external CV

Controls

Controls
Input gain, stereo width, modulation depth, modulation rate

Power

Power supply
9V DC to 12V DC, 1A, centre positive
Power supply included
No

Dimensions & weight

Dimensions
18.8 × 12.1 × 5.5 cm
Weight
728 g
